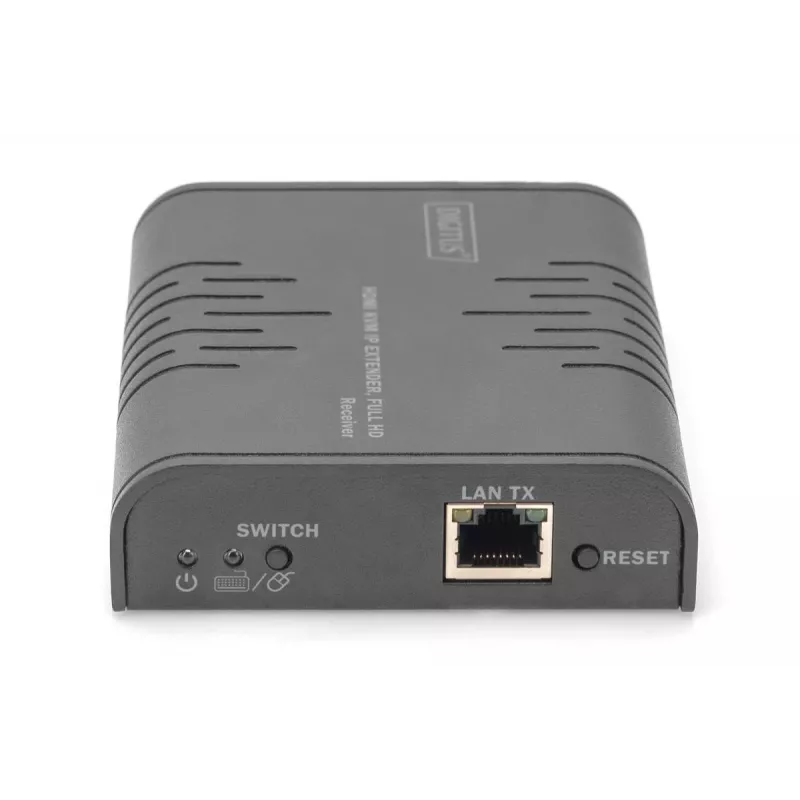

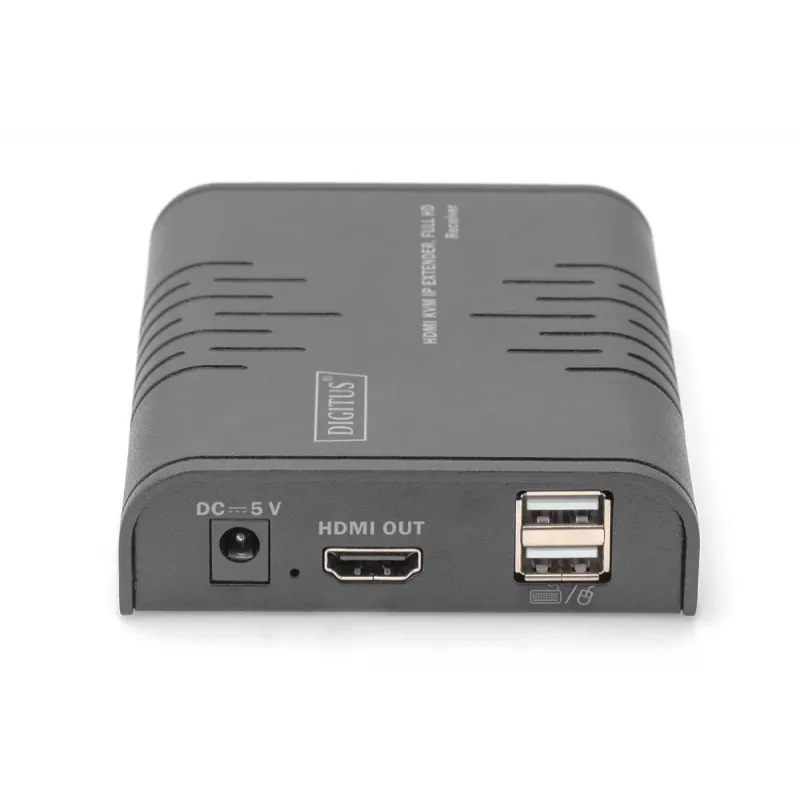

Ricevitore extender HDMI KVM IP Digitus Full HD con cavo 120 m USB

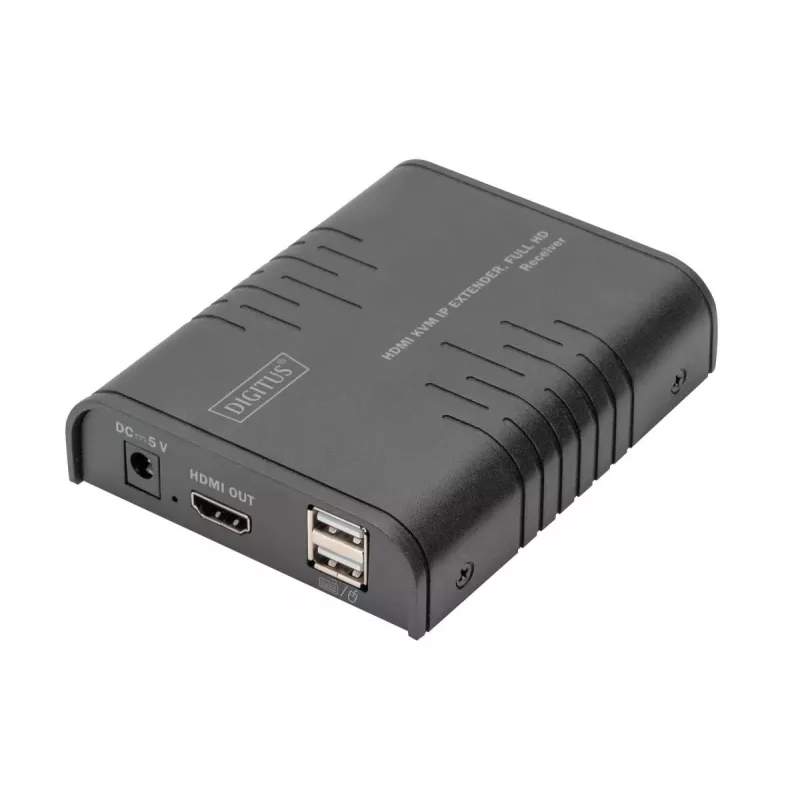

The Digitus HDMI KVM IP Extender Receiver (DS-55530) allows you to reproduce Full HD AV content on additional screens by extending an existing Digitus HDMI KVM IP Extender Set (DS-55529). It supports wired point-to-point extension over CAT5e (or higher) up to 120 m and can be used with network switches to distribute video across an IP network to as many as 253 receivers. The unit includes HDMI and USB Type-A connections and is designed for compact installations with low power consumption.

Advantages

The receiver supports Full HD resolution up to 1080p/60Hz and complies with HDMI 1.3 and HDCP 1.4 standards. It enables KVM functionality so a keyboard and mouse can be connected at the receiver to control the source device on the remote screen. Installation is plug-and-play with no additional drivers required, and it operates over commonly available CAT5e or better cabling. The device is compact, black in colour, and consumes only 3.5 W at 5 V DC.

Suitable for

• Extending a Digitus HDMI KVM IP Extender system to additional displays
• Digital signage and multi-screen AV distribution over an IP network
• Conference rooms, control rooms, or classrooms requiring remote display and KVM control
• Point-to-point extension up to 120 m using CAT5e or higher cable

Key specifications

• Model: DS-55530 (receiver)
• Compatible set: DS-55529
• Maximum distributed receivers: up to 253 (with network switch/IP connection)
• Video resolution: up to 1080p/60Hz (Full HD)
• HDMI standard: HDMI 1.3
• HDCP: 1.4
• Cable type: CAT5e or higher
• Maximum point-to-point cable length: 120 m
• USB: USB Type-A (supports KVM peripherals), USB 2.0 high speed (480 Mbit/s)
• Power: 5 V DC, power consumption 3.5 W
• Dimensions (W × D × H): 9 × 11 × 2.7 cm
• Colour: Black

How to use

Connect the receiver to the output display via HDMI and plug a keyboard and mouse into the USB Type-A ports if remote KVM control is needed. For a direct point-to-point link, connect the receiver to the DS-55529 transmitter using CAT5e or higher cable up to 120 m. To distribute the signal to multiple screens, connect the transmitter and additional receivers through your network switches and configure the system according to the transmitter's IP settings. Power the receiver with a 5 V DC adapter and verify the display shows the transmitted Full HD signal.

Recommendations

Use CAT5e or higher quality shielded network cable for reliable transmission and avoid running the cable parallel to high-voltage power lines. For multi-display setups, ensure network switches support the required bandwidth and follow the DS-55529 transmitter configuration guidelines to register additional DS-55530 receivers.
