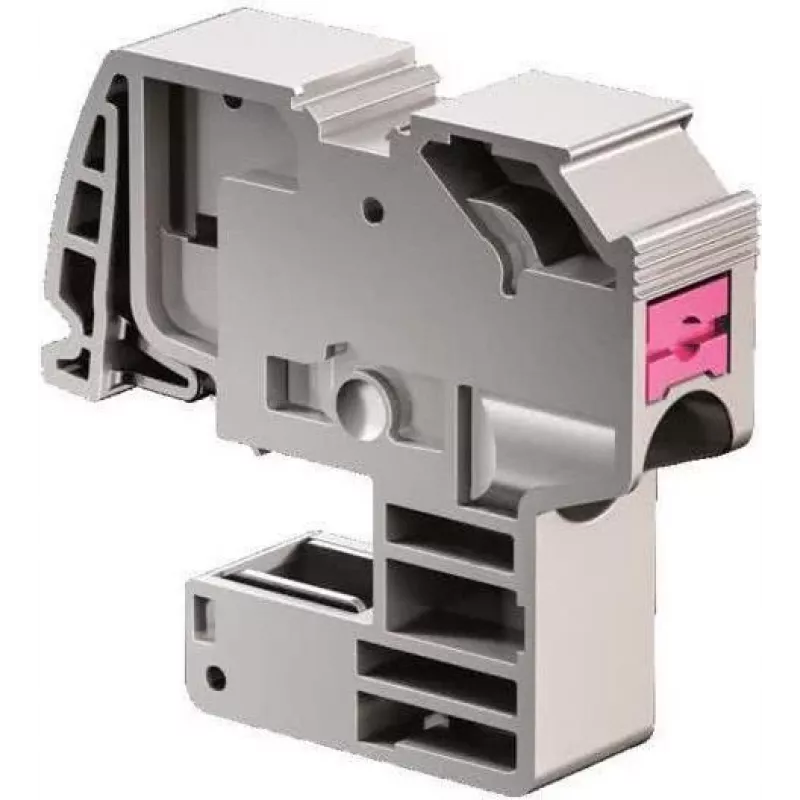

Rittal 3456505 morsetto a innesto per conduttore per conduttori tondi 1,5-4 mm², grigio

In power distribution systems, connecting round conductors to busbars often requires time-consuming screw terminations. The Rittal 3456505 solves this with a push-in connection terminal that enables quick, tool-free wiring of round conductors from 1.5 to 4 mm² directly onto RiLine60 busbars.

Who is it for

Panel builders, electrical installers, and maintenance technicians working with Rittal RiLine60 busbar systems who need a reliable, fast connection method for power distribution.

Main features

• Push-in connection technology for round conductors, no tools required
• Accepts solid or flexible conductors with ferrule from 1.5 to 4 mm²
• Rated current up to 32 A, rated voltage 1000 V AC/DC
• Clip-on mounting for RiLine60 busbars, no additional hardware
• Compact polyamide housing in grey (RAL 7035)
• Operating temperature range: -40 °C to +100 °C

Specifications

• Connection technology: Push-in
• Conductor type: Round conductors
• Conductor cross-section: 1.5 - 4 mm² (solid or flexible with ferrule)
• Rated current: 32 A
• Rated voltage: 1000 V AC/DC
• Number of connection points: 2
• Mounting type: Clip-on for busbar
• Busbar system: Rittal RiLine60
• Material: Polyamide (PA)
• Colour: Grey (RAL 7035)
• Operating temperature: -40 °C to +100 °C
• Protection category: IP20
• Standards: IEC 60947-7-1
• Number of poles: 1

Tips

Ensure the conductor is stripped to the correct length and fully inserted into the push-in terminal for a secure connection. For flexible conductors, use ferrules to maintain reliable contact.
