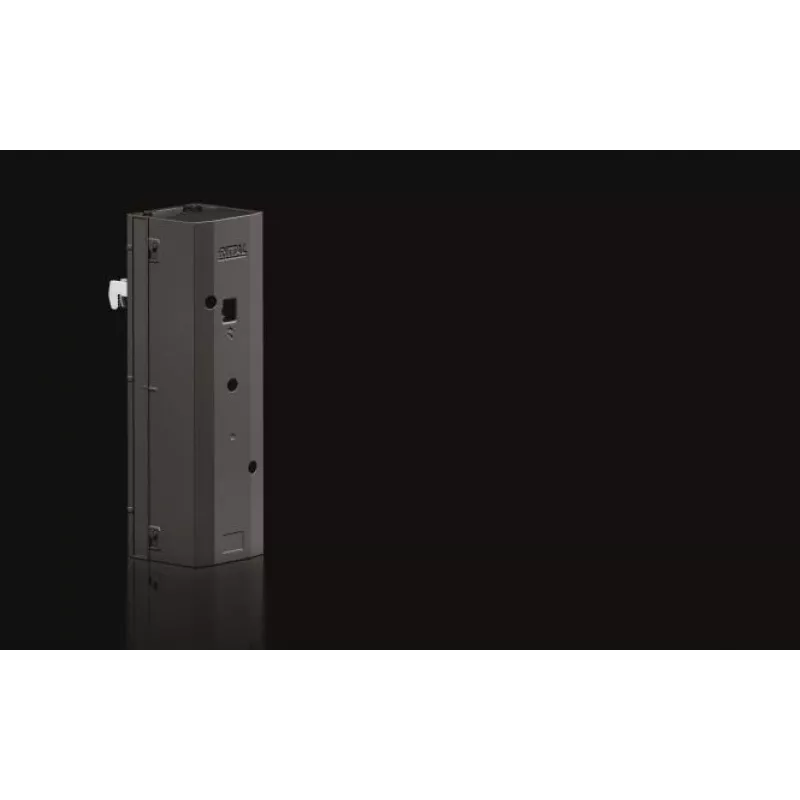

Rittal adattatore di collegamento 3pRX 9360210B 63mm max.70 mm² spazio di serraggio 13x5mm

Connecting large conductors to RiLine60 busbar systems demands a reliable, high-current interface that maintains safety and performance. The Rittal Connection Adapter 3pRX 9360210B solves this challenge by providing a robust 3-pole connection point directly on 60 mm busbar spacing, engineered for conductors up to 70 mm². Its compact clamping space of 13 x 5 mm accommodates substantial cable lugs or busbar links, ensuring a secure and efficient power distribution in industrial control panels and switchgear assemblies.

Who is it for

This adapter is intended for panel builders, electrical engineers, and maintenance technicians who work with Rittal RiLine60 busbar systems. It is ideal for applications requiring high current ratings up to 250 A and operating voltages up to 690 V AC, such as motor control centers, power distribution units, and large machinery. If you need a dependable, screw-terminal connection for heavy conductors without complex tooling, this adapter is a practical choice.

Main features

• 3-pole design for three-phase power distribution
• Compatible with Rittal RiLine60 busbar systems (60 mm spacing)
• Accepts conductors up to 70 mm² cross-section
• Clamping space of 13 x 5 mm for secure lug or bar termination
• Rated current up to 250 A and voltage up to 690 V AC
• Screw terminal connection for reliable, maintenance-friendly installation
• Housing made of durable polyamide (PA) for insulation and mechanical strength
• Contacts made of electrolytic copper (E-Cu) for excellent conductivity
• Direct busbar mounting without additional brackets
• Complies with IEC 61439 standards

Specifications

• Product type: Connection Adapter
• Busbar system compatibility: Rittal RiLine60
• Busbar system spacing: 60 mm
• Number of poles: 3
• Max. conductor cross-section: 70 mm²
• Clamping space (W x H): 13 x 5 mm
• Rated current (max.): 250 A
• Rated operating voltage: 690 V AC, 3-phase
• Connection type: Screw terminal
• Mounting type: Direct busbar mounting
• Housing material: Polyamide (PA)
• Contact material: Electrolytic copper (E-Cu)
• Ambient operating temperature: -5 °C to +55 °C
• Ambient storage temperature: -20 °C to +80 °C
• Standards: IEC 61439

Tips

Ensure the busbar system is de-energized before installation. Strip conductor insulation to the appropriate length and insert fully into the clamping space, then tighten the screw terminal to the recommended torque. For optimal performance, periodically check terminal tightness and inspect for signs of overheating or corrosion, especially in high-vibration environments.
