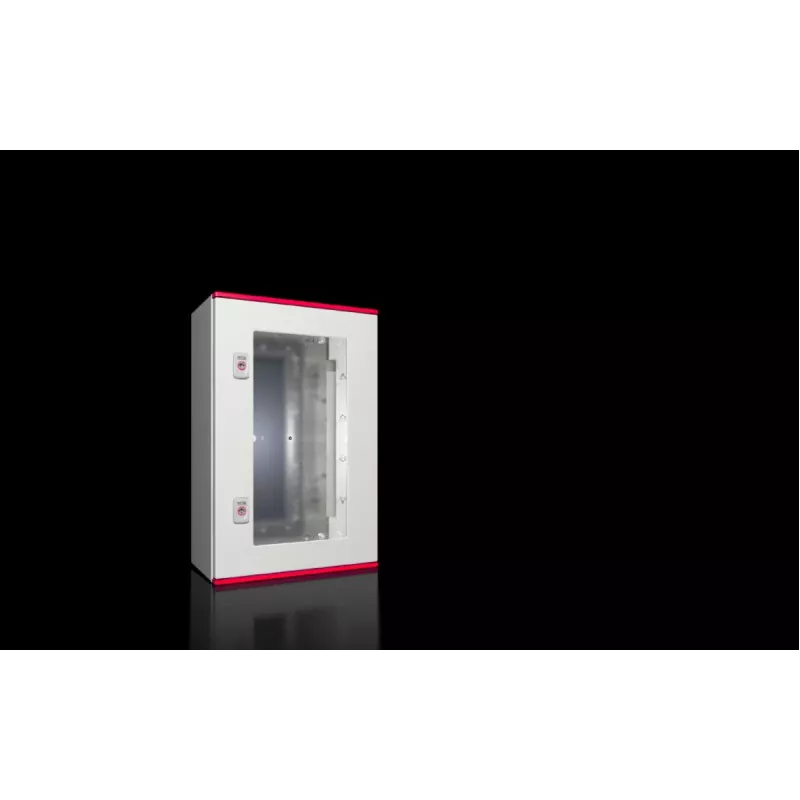

RITTAL AX 1449.000 Case da parete compatto con finestra, 400x600x200 mm, grigio chiaro

Compact wall-mount enclosure with a single door featuring a polycarbonate viewing window, providing clear visibility of installed components while protecting them from harsh environments. The sheet steel construction with powder-coated finish in RAL 7035 light grey ensures durability and corrosion resistance.

Advantages

IP66 protection rating and NEMA 4 rating make this enclosure suitable for demanding industrial applications. The IK08 impact resistance ensures the enclosure can withstand mechanical stress. The cam lock with 3 mm double-bit insert provides secure closure. A gland plate is included at the bottom for cable entry.

Suitable for

• Industrial control systems
• Electrical distribution
• Outdoor installations requiring weatherproof protection
• Applications where visual monitoring of internal components is needed

Key specifications

• Dimensions (W x H x D): 400 x 600 x 200 mm
• Material: Sheet steel, powder-coated
• Viewing window material: Polycarbonate
• Protection rating: IP66
• NEMA rating: NEMA 4
• Impact resistance: IK08
• Door opening angle: 130°
• Lock type: Cam lock, 3 mm double-bit
• Colour: RAL 7035 (Light Grey)

Recommendations

Ideal for machine builders and panel shops needing a reliable enclosure with a viewing window for quick status checks without opening the door.
