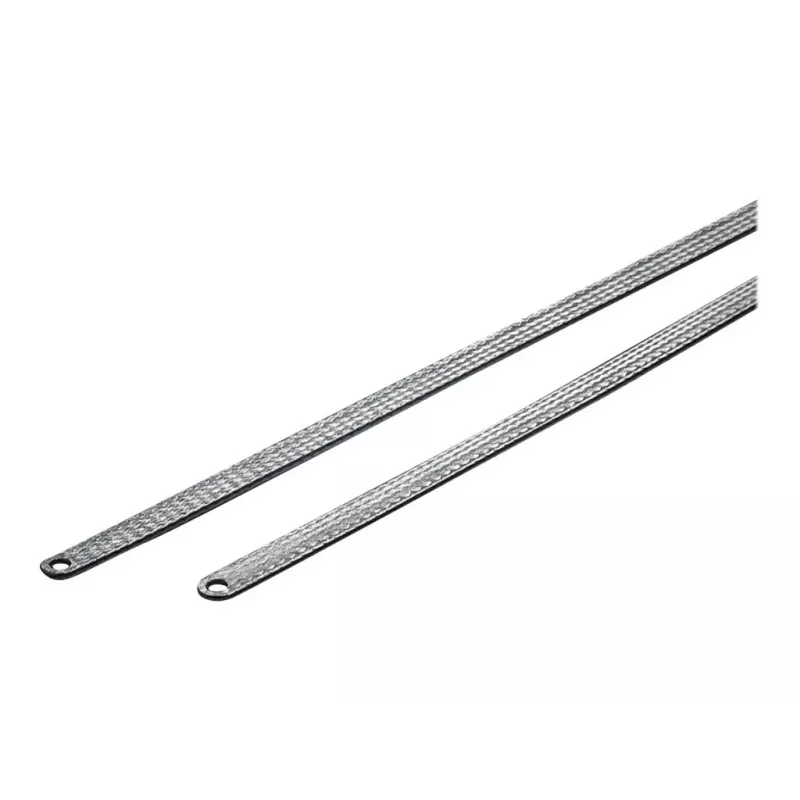

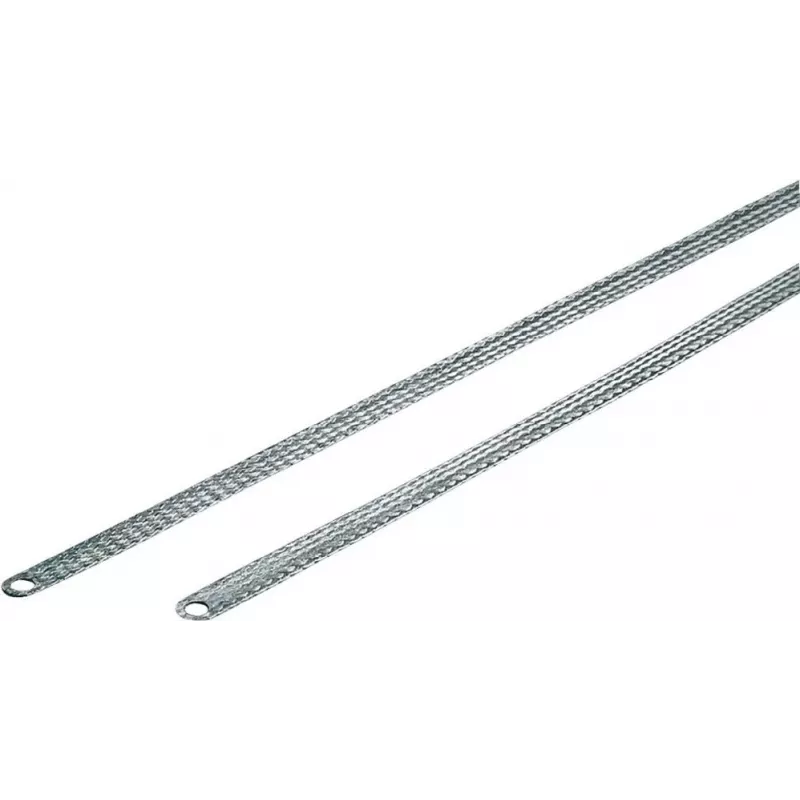

Rittal barra di messa a terra 300 mm rame nichelato, confezione da 10 (2412.325)

For enclosure and rack potential equalization, this Rittal earthing bar stands apart with its nickel-plated copper construction and a generous 75 mm² cross-section, ensuring low-impedance grounding across all connected components. Supplied as a pack of 10, each 300 mm bar includes 10 M5 connection points, insulators, and mounting brackets, making it a complete solution for professional installations.

Highlights

• Nickel-plated copper bar, 300 mm length, 15 mm width, 5 mm height
• 75 mm² cross-sectional area for reliable current carrying capacity
• 10 M5 connection points per bar, complete with screws and washers
• Includes 2 insulators and 2 mounting brackets per bar for easy installation
• Complies with VDE 0618 Part 1 for safety
• Pack of 10 bars, ideal for equipping multiple enclosures

In daily use

This earthing bar is engineered for straightforward integration into Rittal enclosures and racks, with horizontal or vertical mounting options. The nickel-plated surface resists corrosion, maintaining conductivity over time. Each connection point accepts M5 screws, allowing secure attachment of grounding conductors. The included insulators ensure proper isolation from the mounting surface, while the brackets provide stable support.

Full specifications

• Product type: Earthing bar / potential equalisation bar
• Material: Copper, nickel-plated
• Length: 300 mm
• Width: 15 mm
• Height: 5 mm
• Cross-sectional area: 75 mm²
• Number of connection points: 10 per bar
• Connection screw size: M5
• Mounting type: For enclosure/rack mounting
• Application: Potential equalization, grounding
• Pack quantity: 10 pieces
• Colour: Silver
• Included accessories (per bar): 2 insulators, 2 mounting brackets, 10 M5 screws, 10 washers
• Standard compliance: VDE 0618 Part 1
• Compatibility: Rittal enclosures and racks
• Installation options: Horizontal or vertical mounting

Final note

With its robust design and complete accessory set, this earthing bar pack provides everything needed for safe and efficient grounding in industrial and IT environments.
