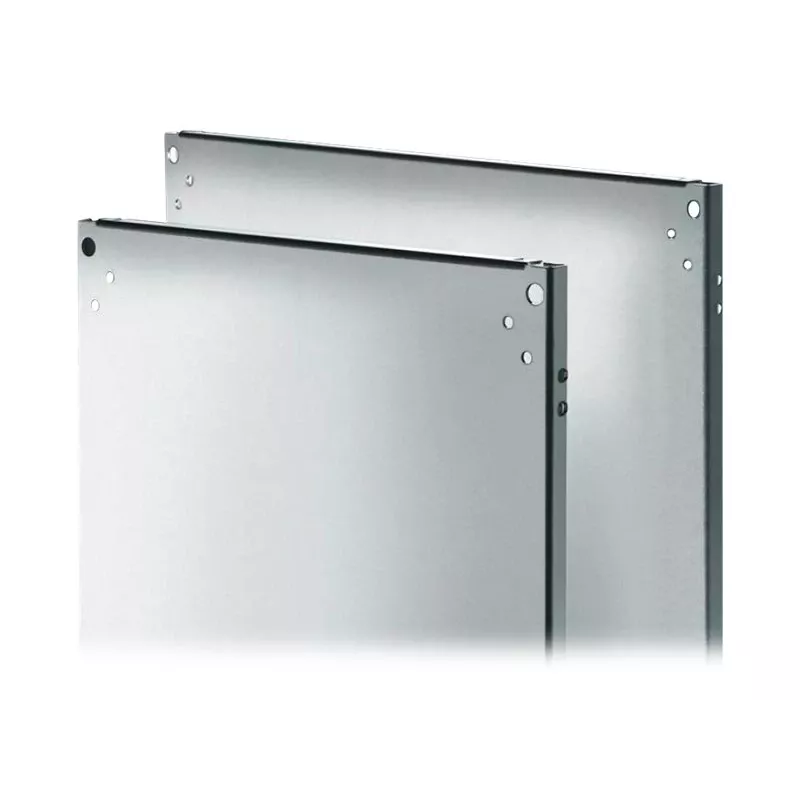

Rittal CS 9765.092 coperchio, alluminio, RAL 7035 grigio, 499 x 1096 mm

In outdoor telecom or industrial enclosures, a solid top cover keeps rain, dust, and debris from compromising sensitive equipment. The Rittal CS 9765.092 is a screw-fastened aluminium top cover for CS TopComfort enclosures, offering reliable sealing and a clean, professional finish.

Key specifications

• Product type: Top Cover
• Material: Aluminium, powder-coated
• Colour: Grey (RAL 7035)
• Nominal dimensions: 499 mm width × 1096 mm depth × 25 mm height
• Mounting type: Screw-fastened
• Compatibility: Rittal CS TopComfort enclosures
• Included components: 1 × top cover
• Application area: Outdoor enclosures
• Design feature: Solid construction for sealing

Why choose it

This top cover is engineered for durability in harsh environments. Its powder-coated aluminium resists corrosion, while the screw-fastened design ensures a tight seal against moisture and contaminants. With RAL 7035 light grey, it blends seamlessly with standard enclosure aesthetics.

Ideal use cases

• Outdoor telecom cabinets exposed to weather
• Industrial control enclosures in dusty or wet areas
• Retrofitting or expanding existing Rittal CS TopComfort systems
• Protecting sensitive electronics from overhead debris

Good to know

The cover measures 499 mm wide and 1096 mm deep, matching standard CS TopComfort enclosure footprints. It is supplied as a single piece and weighs 11.3 kg. Installation is straightforward with screws (not included).
