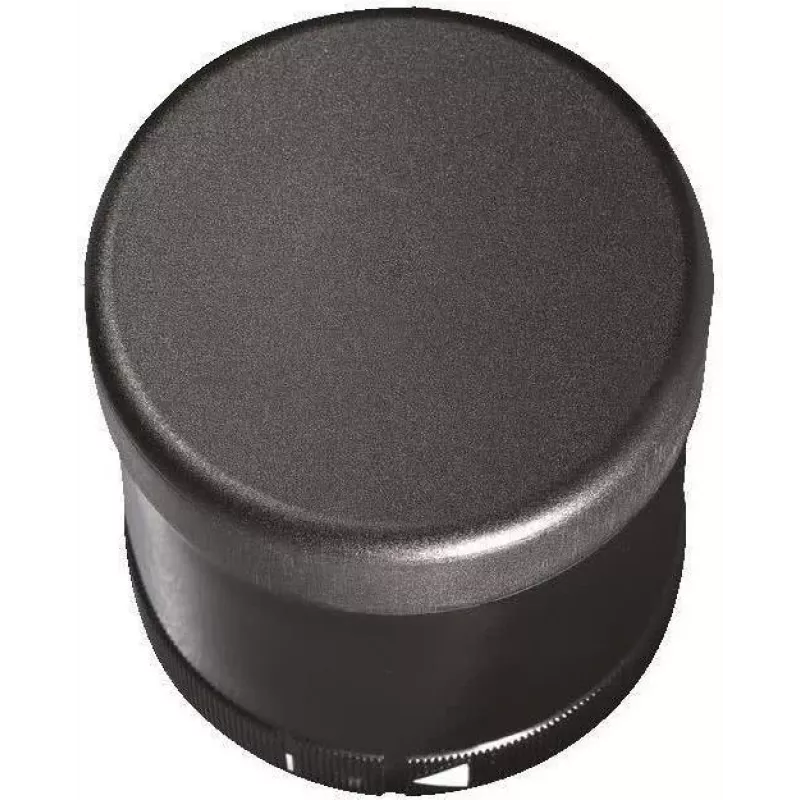

Rittal Dispositivo di segnalazione acustica SG 2376011 102 dB 24V DC IP65 nero

This acoustic signal device delivers a powerful 102 dB(A) sound pressure level, making it clearly audible in noisy industrial environments. With eight selectable tones and a wide frequency range of 2.4–2.9 kHz, it adapts to various signaling needs. Its compact panel-mount design with a 22.5 mm diameter fits standard control panels, and the robust polycarbonate housing in black ensures durability.

Highlights

• High sound output: 102 dB(A)
• Eight selectable tones for flexible signaling
• IP65 protection against dust and water jets
• Wide operating temperature range: -20 °C to +50 °C
• Low current consumption: 35 mA at 24 V DC

In daily use

Mount the device in a control panel or machine enclosure and connect it via screw terminals. Select the appropriate tone using the built-in selector. The IP65 rating allows use in demanding environments, and the long life expectancy of over 5000 hours reduces maintenance needs.

Full specifications

• Product type: Acoustic signal device
• Sound pressure level: 102 dB(A)
• Operating voltage: 24 V DC
• Current consumption: 35 mA
• Number of tones: 8
• Frequency range: 2.4 - 2.9 kHz
• Protection rating: IP65
• Mounting type: Panel mount
• Mounting diameter: 22.5 mm
• Housing material: Polycarbonate (PC)
• Housing colour: Black
• Operating temperature range: -20 °C to +50 °C
• Connection type: Screw terminals
• Life expectancy: > 5000 hours

Final note

Ideal for industrial signaling in control panels and machinery where reliable audible alerts are essential.
