Rittal Set di messa a terra per rack 7547.000, 180 cm (barra di messa a terra verticale TS)

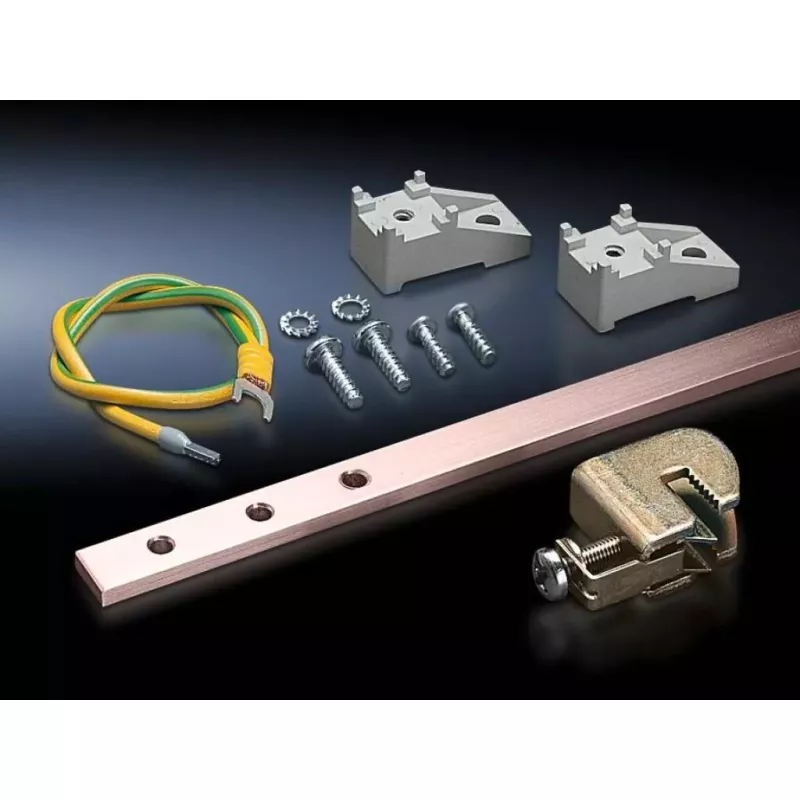

The Rittal Rack Earthing Set 7547.000 is a vertical earthing rail designed for installation in network cabinets. It can be easily mounted on the 25 mm DIN pitch of the distributors or on the 482.6 mm (19") profile rails. The included earthing conductors allow the cable support brackets of the patch panels to be earthed in a star-point configuration.

Key features

• Vertical earthing rail for network cabinets
• Easy mounting on 25 mm DIN pitch or 482.6 mm (19") profile rails

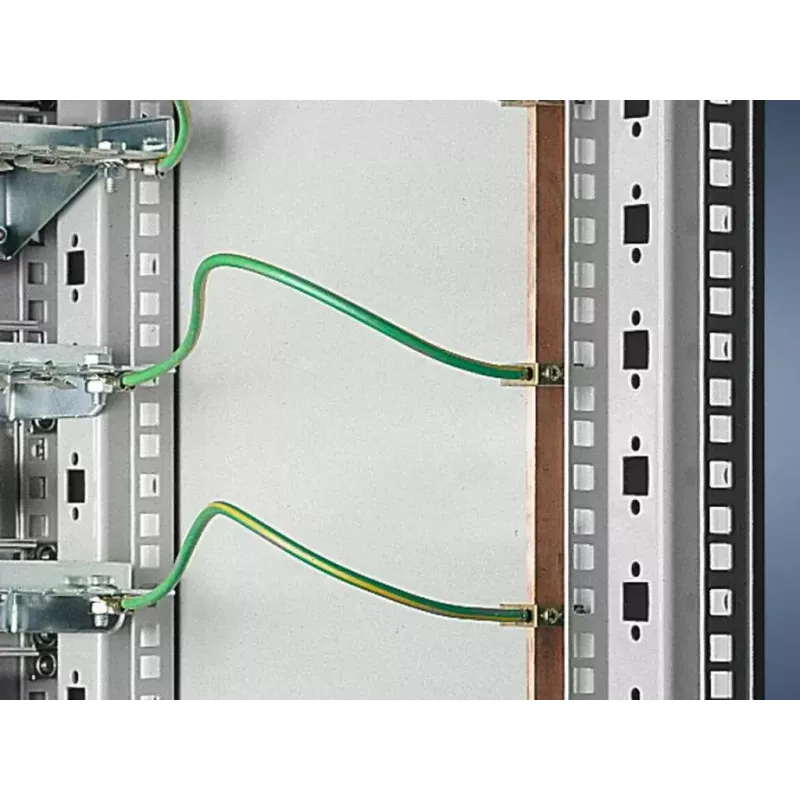

• Included earthing conductors for star-point earthing of patch panel cable support brackets
• Earthing terminals variably adjustable
• Current carrying capacity of the rail approx. 200 A

Specifications

• Brand: Rittal
• Model: 7547.000
• Compatibility: TS
• Depth: 1745 mm
• Current carrying capacity: approx. 200 A
