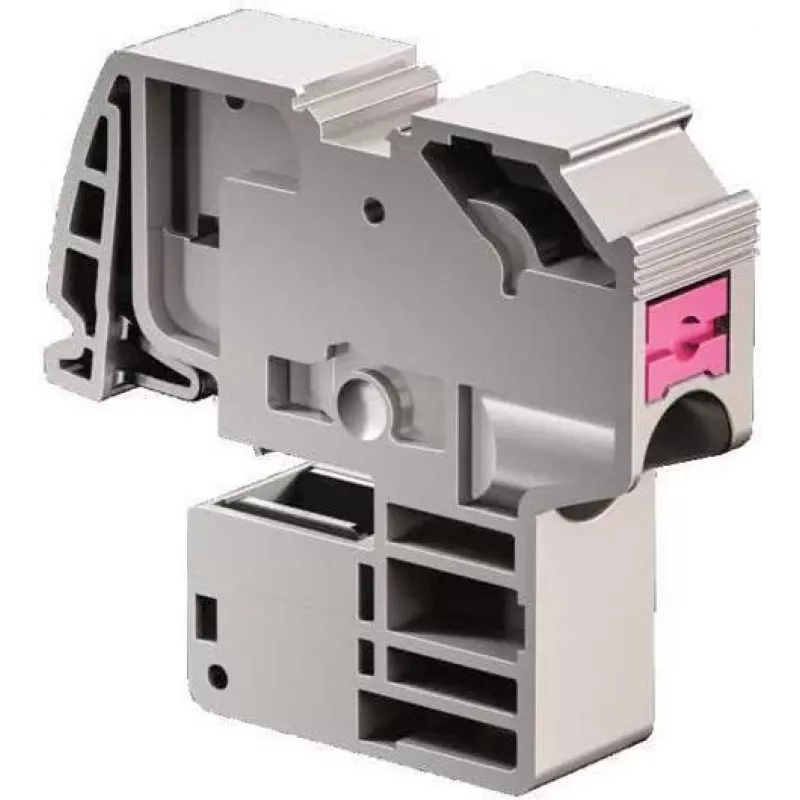

Rittal SV 3451505 Morsetto per conduttori per sistemi a barre conduttrici

Rated for up to 160 A and 690 V AC, the Rittal SV 3451505 conductor terminal provides a robust screw connection for flexible or solid conductors from 1.5 to 50 mm². It mounts directly on Rittal SV busbar systems, including RiLine60, with compatibility for busbar widths of 12–30 mm and thicknesses of 5–10 mm.

Overview

The Rittal SV 3451505 is a single-pole conductor terminal designed for secure power distribution in industrial enclosures. Its screw connection ensures reliable clamping of conductors, while the polyamide housing and tin-plated electrolytic copper contact deliver durability and excellent conductivity. The terminal supports a wide range of conductor cross-sections, making it versatile for various wiring needs.

What stands out

• High current rating up to 160 A for demanding applications
• Wide conductor range: 1.5–50 mm² (flexible and solid)
• Direct mounting on busbars without additional adapters
• Robust polyamide housing with IP20 protection when installed
• Complies with VDE, UL, CSA, and CCC standards

Technical details

• Connection type: Screw connection
• Rated operating voltage: 690 V AC
• Rated impulse withstand voltage: 8 kV
• Tightening torque: 4 Nm
• Operating temperature range: -25 °C to +70 °C
• Housing material: Polyamide (PA)
• Contact material: Electrolytic copper, tin-plated
• Number of poles: 1
• Number of connections: 1 conductor per terminal
• Colour: Grey / Black

Our verdict

A reliable and versatile conductor terminal for Rittal SV busbar systems, offering high current capacity and easy installation for industrial power distribution.
