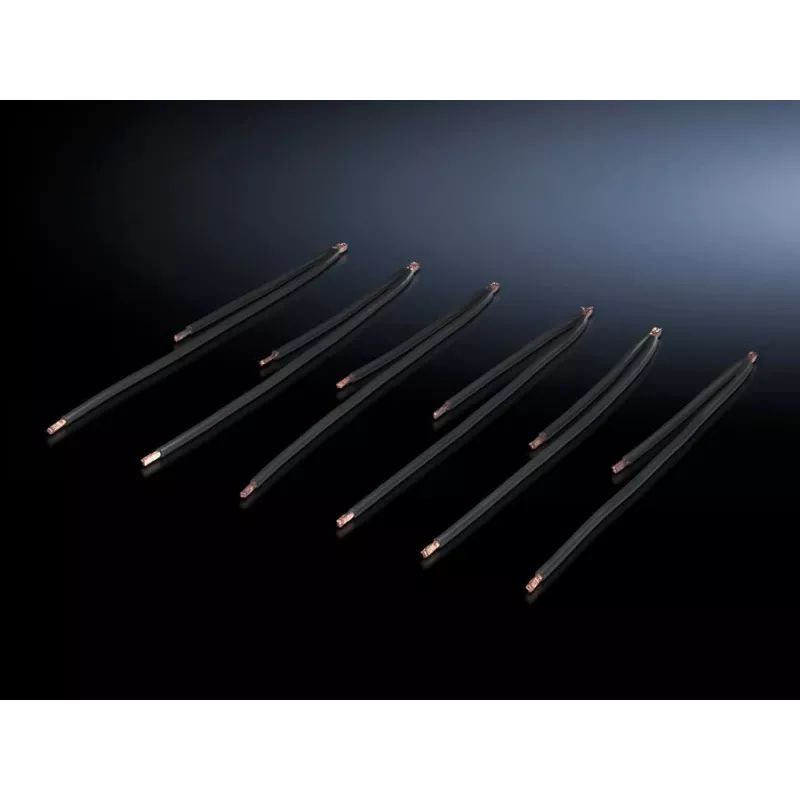

Rittal SV Zwillingsleitung 9340.830 PVC 2x1,5mm² grigio

For installations where space is tight but reliability cannot be compromised, this twin conductor cable from Rittal’s SV system stands apart. Its flat, compact profile and fine-stranded copper conductors make routing inside enclosures and cable ducts noticeably easier than with standard round cables. The grey PVC outer sheath blends neatly into control panel environments while providing solid mechanical protection.

Highlights

• Flat twin design (approx. 4.5 x 7.5 mm) for space-saving installation
• Fine-stranded bare copper conductors (Class 5) for flexibility
• PVC insulation and outer sheath rated for 300/500 V
• Colour-coded cores: black and blue
• Flame retardant according to IEC 60332-1-2
• Wide operating temperature range: -30 °C to +70 °C (fixed installation)

In daily use

Designed specifically for power distribution and control panel wiring within the Rittal SV system, this cable simplifies connection of lights, sockets, and other components. The fine-stranded copper allows tight bending without conductor fatigue, and the flat shape prevents tangling. The grey sheath (RAL 7035) matches common enclosure interiors, keeping installations tidy. With VDE, UL, and CSA approvals, it meets international safety requirements.

Full specifications

• Cable type: Twin conductor cable (flat)
• Number of conductors: 2
• Conductor cross-section: 1.5 mm² each
• Conductor material: Bare copper, fine-stranded (Class 5)
• Insulation: PVC
• Outer sheath: PVC, grey (RAL 7035)
• Core identification: Black, blue
• Rated voltage U0/U: 300/500 V
• Test voltage: 2000 V
• Operating temperature (fixed): -30 °C to +70 °C
• Operating temperature (flexible): -5 °C to +70 °C
• Nominal outer dimensions: 4.5 x 7.5 mm
• Weight: 0.06 kg/m
• Minimum bending radius (fixed): 4 x cable diameter
• Flame retardancy: IEC 60332-1-2
• Halogen-free: No
• Approvals: VDE, UL, CSA

Final note

Choose this Rittal twin conductor cable when you need a dependable, space-efficient wiring solution that integrates seamlessly with the SV system and meets rigorous international standards.
