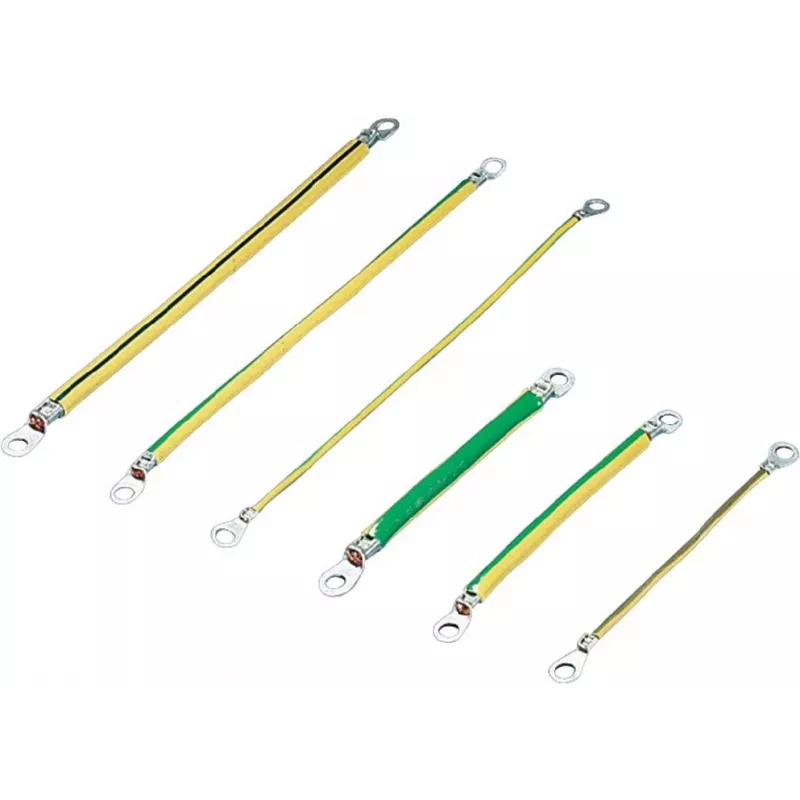

Rittal SZ nastro di messa a terra 16 mm² rame, 300 mm di lunghezza, confezione da 10 2565.110

For reliable potential equalisation in low-voltage switchgear, the Rittal SZ earthing strap delivers a 16 mm² copper cross-section with pre-punched M6 holes spaced 280 mm apart. This flexible flat braid ensures a secure, low-impedance connection between metallic components, meeting DIN EN 61439 requirements.

Overview

Part of the Rittal SZ series, this earthing strap is engineered for straightforward installation. The copper braid offers excellent conductivity and corrosion resistance, while the pre-punched holes accept M6 screws for quick mounting. Each pack includes 10 straps, making it convenient for multiple enclosure grounding points.

What stands out

• 16 mm² copper conductor for high current-carrying capacity
• Pre-punched 6.5 mm holes for M6 screws, no drilling needed
• 280 mm hole spacing suits standard enclosure frame profiles
• Flexible flat braid conforms to irregular surfaces
• Compliant with DIN EN 61439 for switchgear assemblies

Technical details

• Material: Copper (Cu)
• Conductor cross-section: 16 mm²
• Length: 300 mm
• Hole diameter: 6.5 mm
• Number of connection holes: 2
• Hole spacing: 280 mm
• Recommended screw size: M6
• Packaging quantity: 10 pieces
• Series: Rittal SZ

Our verdict

A dependable earthing solution for industrial enclosures, offering the right balance of conductivity, flexibility, and ease of installation. The 10-pack ensures you have spares for future expansions.
