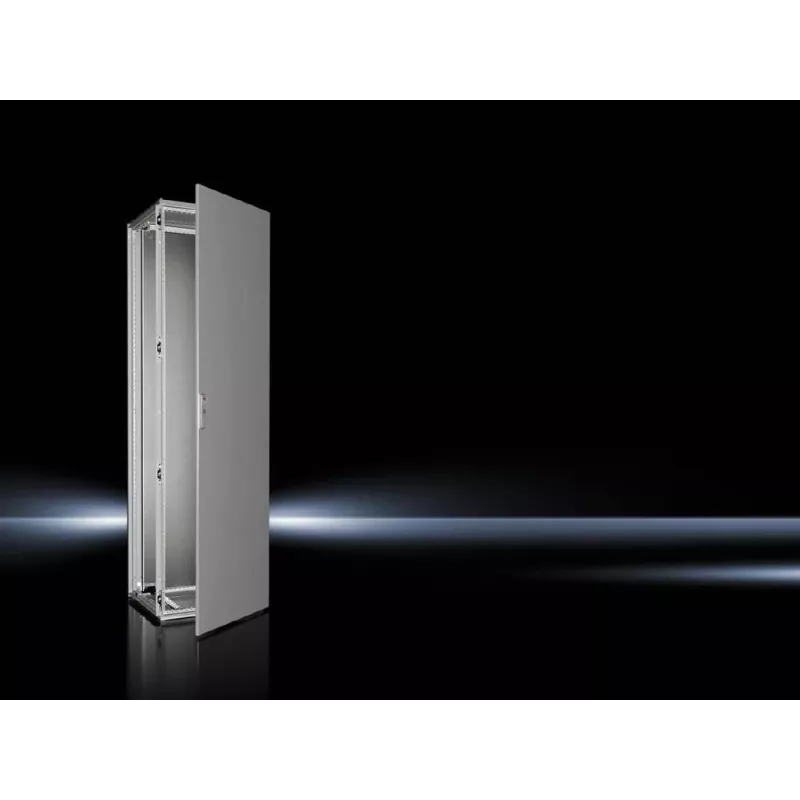

Rittal VX 25 Basic Baying Enclosure System - armadio di rete 800x2000x600 mm, RAL 7035

The Rittal VX 25 Basic Baying Enclosure System is a robust, floor-standing network cabinet designed for industrial, IT, automation, and network applications. With dimensions of 800 x 2000 x 600 mm (WxHxD) and a light grey RAL 7035 finish, this enclosure offers reliable protection and ample space for your equipment. It features a solid front door, solid rear panel, and a 3-point comfort handle locking system for secure access. The enclosure is made from sheet steel with a dip-primed and powder-coated surface, ensuring durability and corrosion resistance. It includes a mounting plate, roof plate, and multi-piece gland plate for cable entry. With a static load capacity of 1500 kg and IP55 protection rating (NEMA 12), it is suitable for demanding environments.

Advantages

High load capacity of 1500 kg allows for heavy equipment installation. IP55 protection guards against dust and water jets. The 3-point comfort handle provides easy and secure locking. The baying system enables flexible side-by-side configuration for larger setups. VX 25 frame section ensures compatibility with a wide range of accessories.

Suitable for

• Industrial control cabinets
• IT server rooms
• Automation systems
• Network infrastructure

Key specifications

• Enclosure Type: Baying Enclosure
• Material: Sheet Steel
• Protection Rating: IP55 (NEMA 12)
• Dimensions (W x H x D): 800 x 2000 x 600 mm
• Color: RAL 7035 (Light Grey)
• Surface Finish: Frame: Dip-primed; Panels: Dip-primed, powder-coated
• Load Capacity (Static): 1500 kg
• Door Type: Front door, solid
• Rear Panel: Solid
• Locking System: 3-point comfort handle
• Mounting Plate: Included
• Roof Plate: Included
• Base Plate: Multi-piece gland plate
• Frame Section: VX 25
• Door Opening Angle: 130°
• Approvals: UL, cUL, TÜV, EAC, VDE
• Mounting Type: Floor-standing
• Usable Depth: Approx. 500 mm
• Usable Width: Approx. 700 mm

Recommendations

For optimal cable management, consider using Rittal cable entry plates and accessories. Ensure proper ventilation and cooling for high-density installations. This enclosure is ideal for baying multiple units to create a larger cabinet system.
