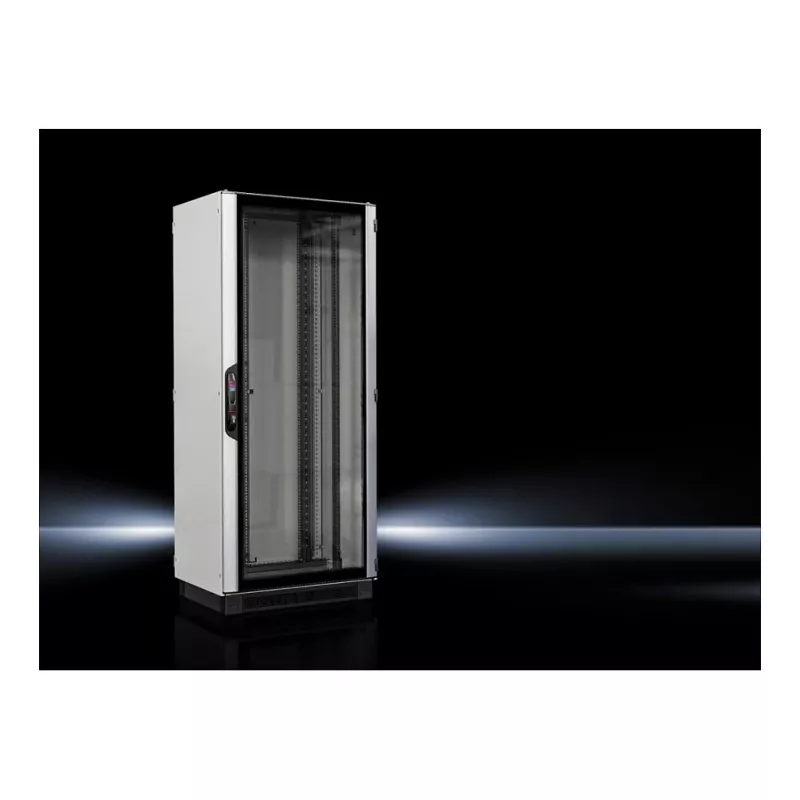

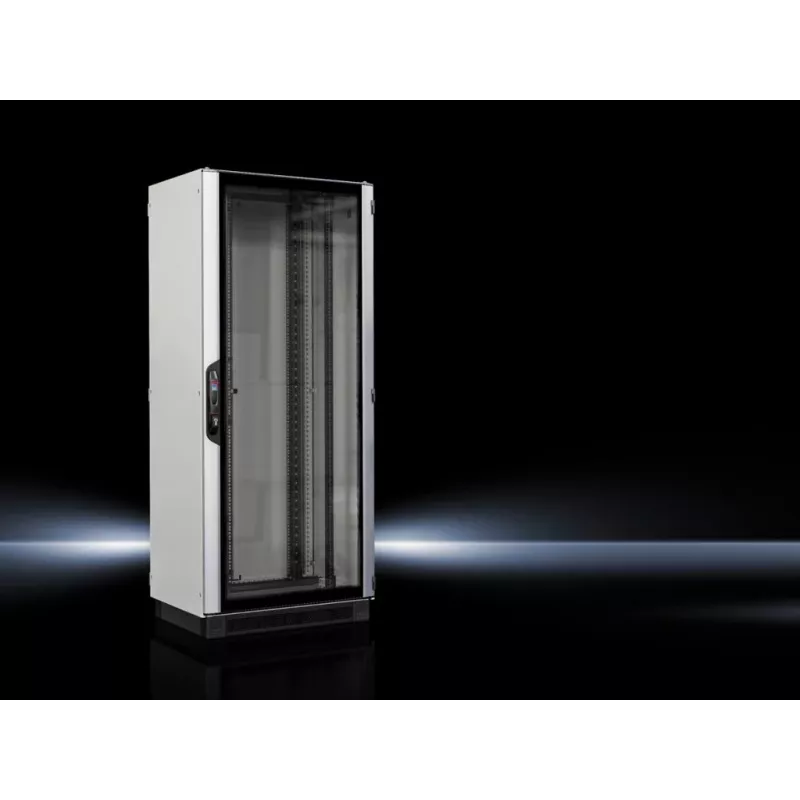

Rittal VX IT armadio rack server 42U, 800x2100x800 mm, porte perforate, RAL 7035

The Rittal VX IT 42U Server Rack Cabinet offers a robust and versatile housing solution for modern data centers and server rooms. Its self-supporting frame and high load capacity set it apart from typical racks, providing a stable foundation for heavy equipment while ensuring easy access and efficient cable management.

Highlights

• 42U 19-inch rack capacity for maximum equipment density
• Perforated front and rear doors with 85% free area for optimal airflow
• Robust sheet steel frame with aluminum doors, finished in RAL 7035 light grey
• High static load capacity of 1500 kg
• Removable, lockable side panels for secure access
• Top and bottom cable entry with brush strips for tidy cable routing

In daily use

This server rack is engineered for demanding IT environments. The perforated doors ensure passive ventilation, keeping your servers cool without active cooling. The self-supporting VX IT frame provides exceptional stability, while the included levelling feet, baying kit, and earthing kit simplify installation and integration into existing setups. The usable installation depth of 600 mm accommodates a wide range of server depths.

Full specifications

• Rack Capacity: 42U
• External Width: 800 mm
• External Height: 2100 mm
• External Depth: 800 mm
• Static Load Capacity: 1500 kg
• Material: Sheet steel frame, aluminum doors
• Colour: RAL 7035 (Light Grey)
• Front Door: Perforated single door (85% free area)
• Rear Door: Perforated split door (85% free area)
• Side Panels: Removable, lockable
• Mounting Standard: 19-inch
• Protection Rating: IP20
• Cable Management: Top and bottom cable entry with brush strips
• Cooling: Passive ventilation
• Usable Installation Depth: 600 mm
• Frame Construction: Self-supporting VX IT frame
• Included Components: Levelling feet, baying kit, earthing kit
• Application Area: Data centers, server rooms, network infrastructure

Final note

This Rittal VX IT cabinet delivers professional-grade quality and performance, ideal for organizations that demand reliability and scalability in their IT infrastructure.
