ROPAM Sensore di temperatura TSR-1-TEL

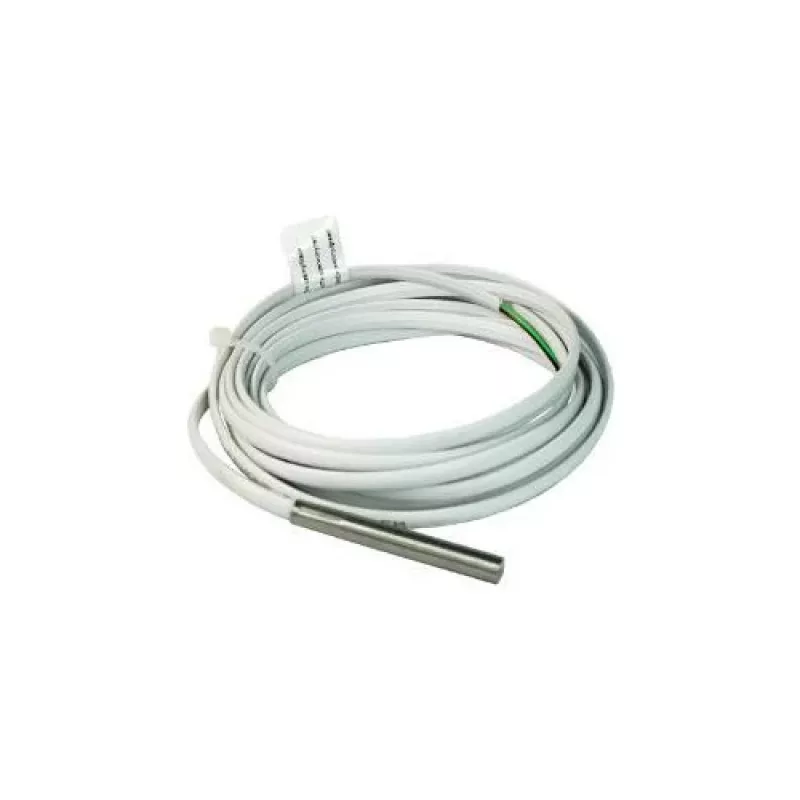

The ROPAM Temperature Sensor TSR-1-TEL is a high-precision digital temperature sensor designed for integration with Ropam alarm control panels and modules. Featuring the reliable DS18B20 sensing element, it provides accurate temperature measurements over a wide range, making it ideal for both indoor and outdoor monitoring applications.

Advantages

This sensor offers exceptional accuracy of ±0.5°C in the critical -10°C to +85°C range, ensuring reliable temperature monitoring for sensitive environments. Its 1-Wire interface simplifies wiring and allows multiple sensors to be connected on a single bus, each with a unique 64-bit serial code for easy identification. The stainless steel probe is IP67 rated, providing robust protection against dust and water ingress for outdoor use.

Suitable for

• Temperature monitoring in residential and commercial security systems
• Integration with Ropam alarm panels (NeoGSM-IP, OptimaGSM, MultiGSM, BasicGSM)
• Outdoor temperature sensing for environmental control
• Industrial temperature monitoring applications

Key specifications

• Sensor Type: Digital Temperature Sensor (DS18B20)
• Measurement Range: -55°C to +125°C
• Accuracy: ±0.5°C (-10°C to +85°C)
• Interface: 1-Wire Bus
• Resolution: 9 to 12 bits (configurable)
• Power Supply: 3.0V to 5.5V DC (from 1-Wire bus)
• Cable Length: 1 meter
• Probe Material: Stainless Steel
• Probe Dimensions: Ø6 x 50 mm
• Protection Rating: IP67 (probe)
• Connection: 3-wire cable (Data, VCC, GND)

Recommendations

For optimal performance, ensure the sensor is connected to a compatible Ropam control panel using the provided 3-wire cable. The sensor can be extended up to 100 meters using twisted-pair cable for remote installations. Avoid exposing the cable connection to moisture; the probe itself is weatherproof.
