RUKO 237020E filiera M2

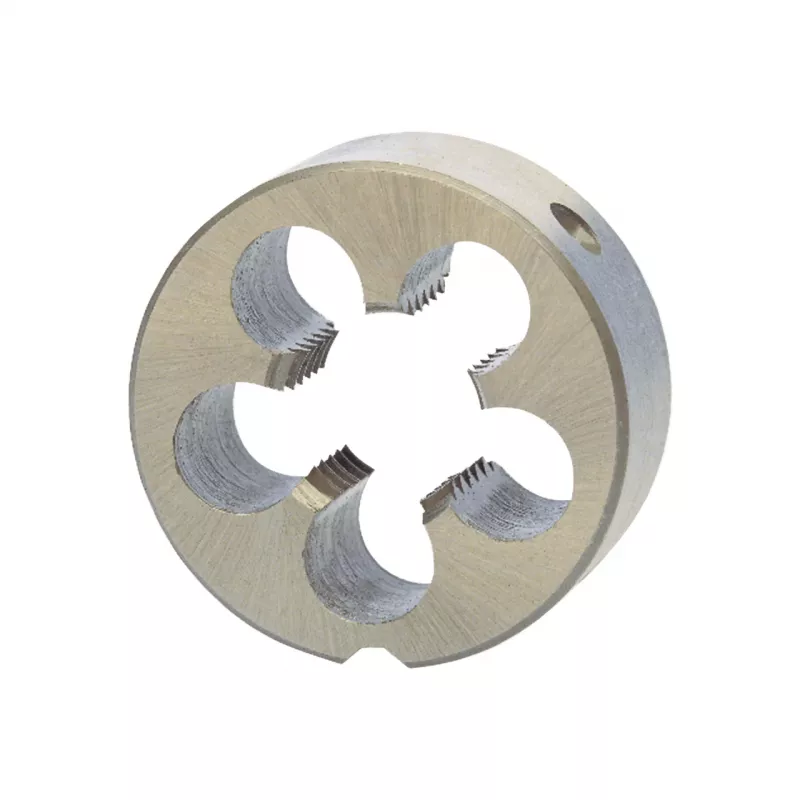

RUKO 237020E – Threading die. For cutting external threads.

• Product type: Threading die
• Manufacturer article number: 237020E
• SAP article number: 1000023516
• Thread size: M2
• Thread angle: 60°
• Material: HSS-Co 5
• Coating: Uncoated
• Cutting direction: Right-hand
• Tolerance: ISO 2 6H
• DIN standard: 22568
• Thread pitch: 0,40 mm
• Outside diameter: 16.0 mm
• Thickness: 5.0 mm
• Net weight of the product: 4 g

Dimensions and net weight above describe the product; they do not establish shipping dimensions or gross weight with packaging.
