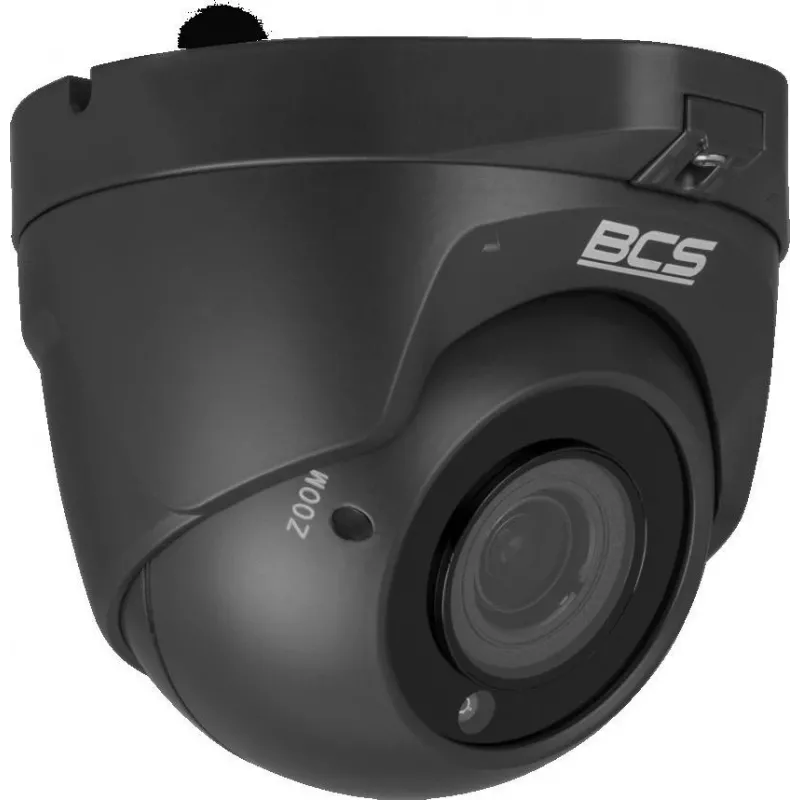

BCS UNIVERSAL BCS-EA45VR4-G(H2) Telecamera dome IR 5MP, 2,8mm, IP66

The BCS UNIVERSAL BCS-EA45VR4-G(H2) is a high-performance 5MP IR dome camera designed for reliable indoor and outdoor surveillance. Featuring a 1/2.8" CMOS sensor and 2.8mm fixed lens, it delivers crisp 5MP resolution at 20fps. With 4-in-1 video output (AHD/TVI/CVI/CVBS), it offers flexible integration with existing systems. The camera includes IR night vision up to 25 meters and advanced image processing like DWDR, 3D DNR, BLC, HLC, and AGC for clear footage in challenging lighting. Its IP66-rated metal housing ensures weatherproof durability, making it suitable for various environments.

Advantages

This camera combines high-resolution imaging with versatile connectivity and robust build quality. The 4-in-1 video output allows easy upgrade from analog to HD without replacing cabling. The IP66 rating protects against dust and water, ensuring long-term reliability outdoors. Advanced noise reduction and wide dynamic range enhance image clarity in low-light or high-contrast scenes.

Suitable for

• Retail stores and offices requiring discreet surveillance
• Residential properties for driveway or backyard monitoring
• Warehouses and industrial sites needing weatherproof cameras
• Parking lots and building entrances

Key specifications

• Sensor: 1/2.8" CMOS, 5 Megapixel (2592x1944)
• Lens: Fixed 2.8mm
• Video Output: AHD, TVI, CVI, CVBS (4-in-1)
• IR Range: Up to 25m
• Minimum Illumination: 0.001 Lux (Color), 0 Lux (IR On)
• Day/Night: ICR (IR Cut Filter)
• Housing: Metal Dome, IP66
• Power: DC 12V, Max 4.5W
• Operating Temperature: -30°C to +60°C
• Video Features: DWDR, 2D/3D DNR, BLC, HLC, AGC

Recommendations

For optimal performance, use a quality DC 12V power supply and ensure proper cable connections. The camera supports up to 5MP@20fps; for higher frame rates, reduce resolution to 4MP@25/30fps or 1080P@25/30fps. Mount the camera in a location with a clear view and avoid direct exposure to extreme weather beyond its rated temperature range.
