Telecamera di videosorveglianza in rete ERNITEC 0070-05852IR con funzione IR

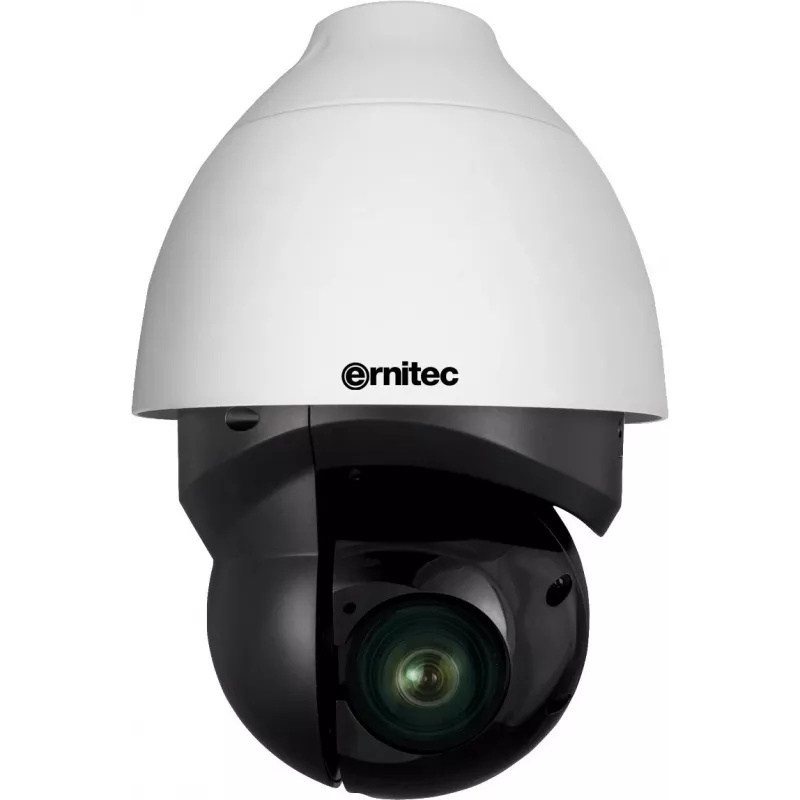

This Full HD IP speed dome camera delivers 2 megapixel (1080p) resolution with up to 25/30 frames per second and wide dynamic range (WDR). The PTZ unit includes a 30x optical zoom lens combined with 10x digital zoom, image stabilization and true day/night functionality, enabling clear monitoring in varied lighting conditions. Integrated IR illumination reaches up to 200 meters to support low- or zero-light environments. The camera supports Quad Stream at Full HD and Power over Ethernet (PoE++) for flexible installation.

Advantages

The camera provides high-resolution 1080p imagery with wide dynamic range and electronic image stabilization for stable, detailed video. A high-quality 30x optical zoom and up to 200 m IR illumination allow long-distance observation. PoE++ (IEEE 802.3bt) simplifies cabling and power delivery, and multi-stream capability supports simultaneous recording and live view.

Key specifications

• Sensor: 2 megapixel Full HD (1080p)
• Frame rate: 25/30 fps with WDR
• Zoom: 30x optical, 10x digital
• IR illumination range: up to 200 m
• Video streams: Quad Stream at Full HD 50/60 fps
• Dynamic range: Ultra Wide Dynamic Range, 120 dB
• Image stabilization: EIS (Ernitec Image Stabilization)
• Day/night: True Day & Night (ICR)
• Power: PoE++ IEEE 802.3bt (60 W); recommended 90 W injector for long cable runs
• Warranty: 3 years

How to use

Mount the speed dome according to site requirements and connect network and power using PoE++ or a separate power injector. Configure IP settings, stream profiles and presets in the camera web interface or management software. Use the optical zoom and PTZ controls to position the camera and set patrol patterns; enable WDR and EIS if required for challenging lighting. For installations with long cable runs, use the recommended 90 W PoE injector to ensure stable power delivery.

Recommendations

For reliable long-distance monitoring, position the camera to minimize obstructions between the lens and target areas, enable IR at night, and use the recommended 90 W PoE injector when cable length or power budget could affect operation.
