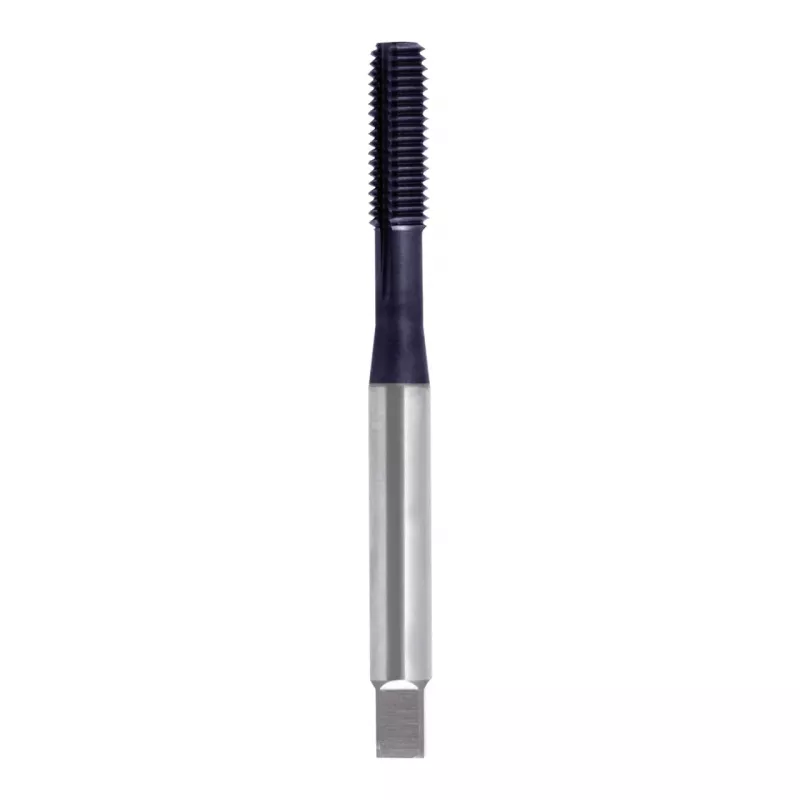

RUKO GEF-DIN2174-HSSCo-TiAlN-60°-M-5x0.8 maschio a macchina

Machine tap with metric coarse thread M5 x 0.8 mm, designed for high-performance thread cutting in tough materials. Its TiAlN coating and cobalt-alloyed HSS-E substrate deliver exceptional wear resistance and heat resistance, making it ideal for production environments.

Advantages

TiAlN coating reduces friction and extends tool life. HSS-E material with cobalt provides high hot hardness and toughness. Straight flutes with 60° thread angle ensure reliable chip evacuation and precise threads. Reinforced shank improves stability and reduces deflection.

Suitable for

• Steel
• Stainless steel
• Cast iron
• Non-ferrous metals

Key specifications

• Thread type: Metric coarse
• Nominal diameter: M5
• Pitch: 0.8 mm
• Standard: DIN 2174
• Material: HSS-E (High-Speed Steel with Cobalt)
• Coating: TiAlN (Titanium Aluminum Nitride)
• Tool type: Machine tap
• Flute type: Straight flute
• Thread tolerance: ISO 2 (6H)
• Overall length: 70 mm
• Thread length: 16 mm
• Shank diameter: 6 mm
• Square drive size: 4.9 mm
• Recommended core hole diameter: 4.2 mm
• Thread angle: 60°
• Cutting direction: Right-hand
• Shank type: Reinforced shank

Recommendations

Use with suitable cutting fluid for optimal performance and tool life. Ensure correct alignment and speed for the material being tapped.
