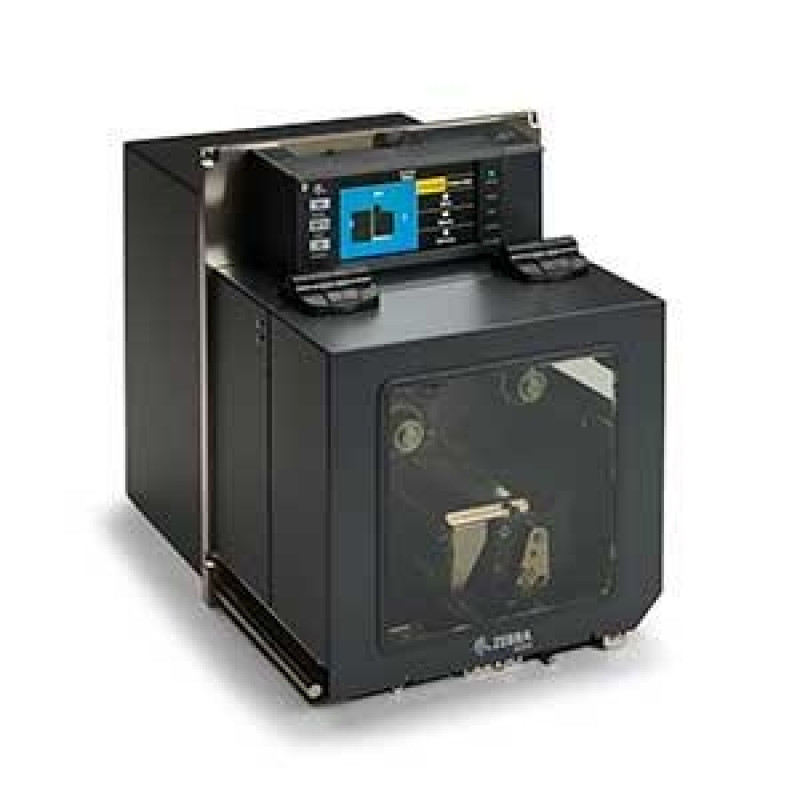

Zebra ZE511, trasferimento termico, stampante POS, 300 x 300 DPI, 12 dot, 356 mm/sec, 135 - 254 µm

The Zebra ZE511 sets itself apart from ordinary POS printers by combining a blazing 356 mm per second print speed with true 300 dpi resolution, ensuring crisp barcodes and text even in high-volume retail and hospitality environments. Its robust thermal transfer and direct thermal capabilities handle media from 135 to 254 µm, making it versatile for labels, tags, and receipts.

Highlights

• High-speed 300 dpi printing at up to 356 mm/sec for demanding workflows
• Supports both thermal transfer and direct thermal printing methods
• Wide media thickness range: 0.135–0.254 mm for flexible application needs
• Comprehensive connectivity: USB 2.0, RS-232 Serial, and 10/100 Ethernet
• Large memory: 128 MB SDRAM and 512 MB Flash for complex label formats
• Supports ZPL, ZPL II, and XML programming languages for easy integration
• Graphical LCD display for intuitive status monitoring and configuration

In daily use

Whether printing shipping labels in a busy warehouse or receipts at a point-of-sale counter, the ZE511 delivers consistent, high-quality output. The flat-head printhead design ensures even pressure across the media, while transmissive and reflective sensors automatically detect label gaps and black marks, reducing media waste and operator intervention. The universal auto-ranging power supply (90–264 VAC) adapts to global power standards, and the printer operates reliably in temperatures from 0°C to 40°C with 20% to 85% non-condensing humidity, making it suitable for most indoor environments.

Full specifications

• Print technology: Thermal transfer and direct thermal
• Resolution: 300 dpi (12 dots/mm)
• Maximum print speed: 356 mm/s (14 ips)
• Maximum print width: 104 mm (4.09 in)
• Media thickness: 0.135–0.254 mm (135–254 µm)
• Maximum ribbon length: 450 m (1476 ft)
• Maximum ribbon width: 110 mm (4.33 in)
• Processor: 400 MHz 32-bit RISC
• Memory: 128 MB SDRAM, 512 MB Flash
• Connectivity: USB 2.0, RS-232 Serial, 10/100 Ethernet
• Display: Graphical LCD
• Supported barcodes: 1D and 2D symbologies
• Programming languages: ZPL, ZPL II, XML
• Media sensors: Transmissive and reflective
• Printhead type: Flat-head
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Operating humidity: 20% to 85% non-condensing
• Power supply: Universal auto-ranging (90–264 VAC, 47–63 Hz)

Final note

The ZE511 is engineered for businesses that cannot compromise on print quality or speed. Its durable construction and advanced features ensure reliable performance in mission-critical applications, reducing downtime and total cost of ownership.
