RUKO HGB Set DIN 352 HSS 60° M14 x 2,00 mm set maschi per filettare a mano, 3 pezzi

For machinists and maintenance technicians cutting M14 coarse threads in steel, cast iron or non-ferrous metals, this RUKO hand tap set provides the three taps needed for through and blind holes. The set follows DIN 352 with a 60° thread angle and is made from bright high-speed steel for general-purpose threading up to 800 N/mm² tensile strength.

Key specifications

• Thread size: M14 x 2.00 mm
• Standard: DIN 352
• Material: High-speed steel (HSS), bright finish

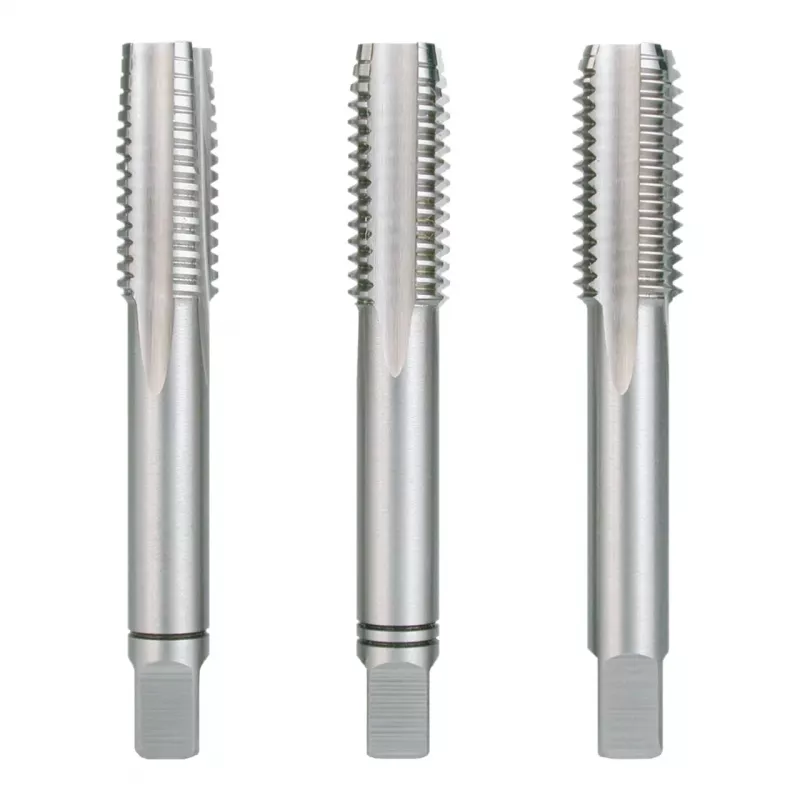

• Set contents: Taper tap (No. 1), second tap (No. 2), bottoming tap (No. 3)
• Cutting direction: Right-hand
• Tolerance class: ISO 2 (6H)
• Recommended core drill diameter: 12.0 mm
• Overall length: 80 mm
• Shank diameter: 11.0 mm
• Square drive: 9.0 mm

Why choose it

The three-tap set allows progressive thread cutting: the taper tap starts the thread, the second tap deepens it, and the bottoming tap finishes close to the hole bottom. HSS provides durability across common workshop materials, and the bright finish reduces friction during manual tapping.

Ideal use cases

• Creating M14 threads in steel components
• Repairing damaged threads in cast iron housings
• Threading non-ferrous metal parts in maintenance work

Good to know

Use with a suitable tap wrench and cutting fluid. The recommended core drill diameter is 12.0 mm for M14 x 2.00 mm threads.
