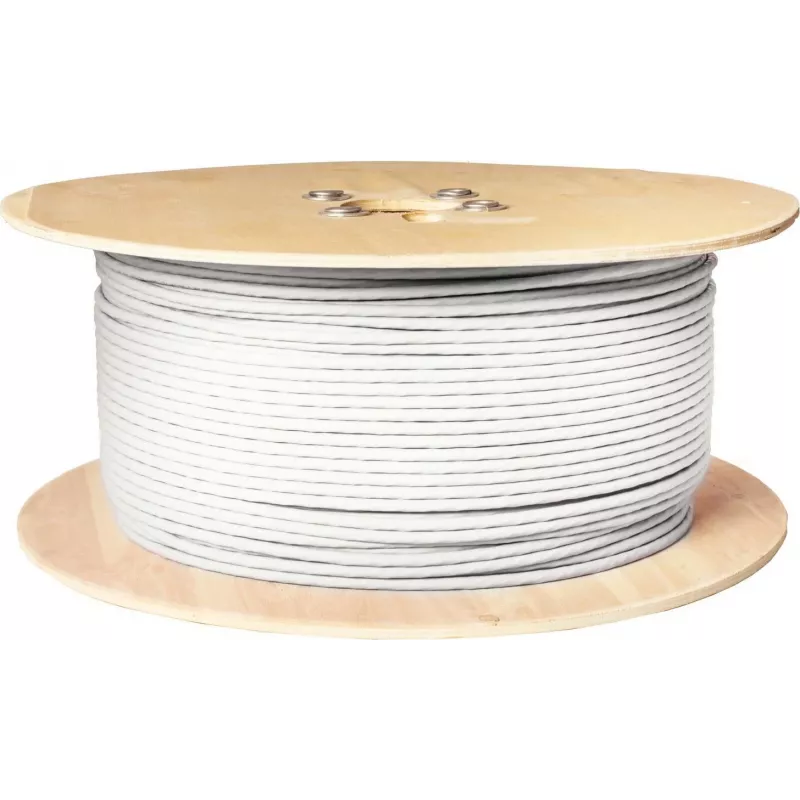

S CONN MAXIMUM CONNECTIVITY cavo coassiale SAT 0,9/4,6, triplo schermato, CCC > 100 dB, 500 m, bianco (15-22005006)

Triple-shielded SAT coaxial cable with screening attenuation exceeding 100 dB across 30–2200 MHz, delivering clean signal integrity for DVB-S2 and broadband over a 500 m reel.

Overview

The S CONN MAXIMUM CONNECTIVITY 15-22005006 is a professional-grade 75 Ω coaxial cable engineered for satellite and terrestrial TV distribution. It features a 0.9 mm solid copper inner conductor, foamed polyethylene dielectric, and a triple-layer shield combining aluminium foil and a dense copper braid (64 x 0.12 mm). The white PVC jacket has an outer diameter of 6.8 mm, balancing durability with flexibility for indoor and outdoor runs.

What stands out

• Class A+ screening: >100 dB shielding effectiveness prevents interference in dense RF environments.
• Low attenuation: 6.0 dB/100 m at 100 MHz, 17.5 dB/100 m at 860 MHz, and 29.0 dB/100 m at 2150 MHz.
• Return loss better than 20 dB from 5 to 2200 MHz ensures minimal signal reflection.
• Supports DVB-S, DVB-S2, DVB-T, DVB-C, radio, and broadband internet up to 2150 MHz.
• Supplied on a 500 m reel for bulk installations.

Technical details

• Impedance: 75 Ω
• Inner conductor: copper, 0.9 mm diameter
• Dielectric: foamed polyethylene, 4.6 mm diameter
• Shielding: aluminium foil + copper braid (64 x 0.12 mm) + aluminium foil
• Jacket: PVC, outer diameter 6.8 mm
• Attenuation: 6.0 dB/100 m @ 100 MHz, 13.0 dB/100 m @ 500 MHz, 17.5 dB/100 m @ 860 MHz, 19.5 dB/100 m @ 1000 MHz, 29.0 dB/100 m @ 2150 MHz
• Return loss: >20 dB (5–2200 MHz)
• Length: 500 m

Our verdict

For installers who demand reliable, low-loss signal transport over long distances, this cable's triple shielding and solid copper core make it a dependable backbone for satellite and broadband distribution.
