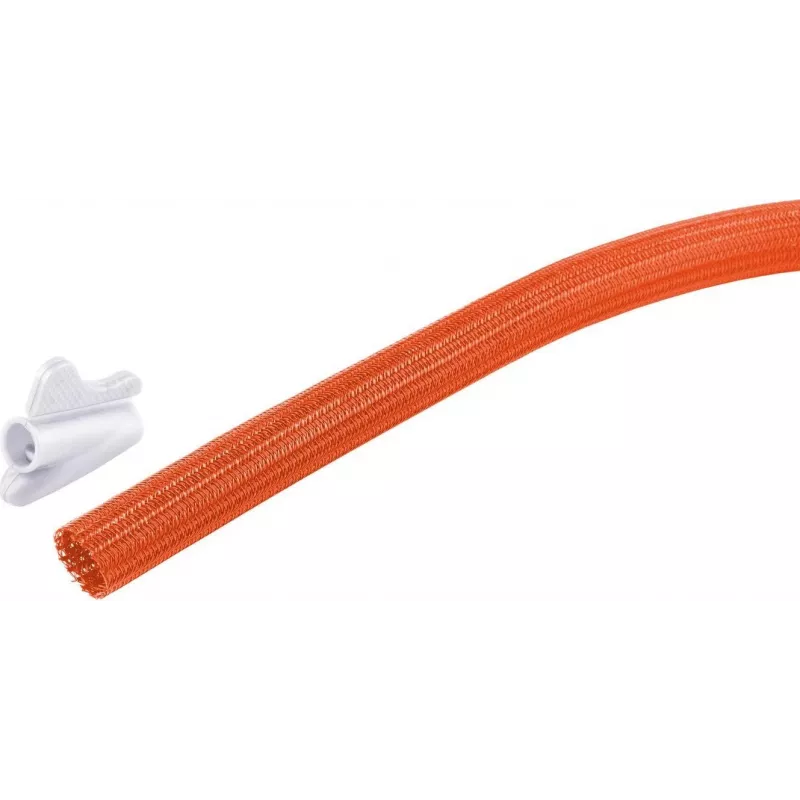

S CONN MAXIMUM CONNECTIVITY set guaina protettiva flessibile per cavi 13mm arancione 7,5m (18-33067)

IP68-rated flexible conduit set with a 13 mm outer diameter and 7.5 m length, built from halogen-free polypropylene that withstands temperatures from -20°C to +90°C, with short-term peaks up to +130°C.

Overview

The S/CONN maximum connectivity Flex Kabelkanal Set provides a robust cable management solution for industrial, machinery, and outdoor installations. The unslit orange conduit offers high flexibility and chemical resistance to oils, greases, acids, alkalis, and solvents. The set includes two M16 x 1.5 screw connections and two locknuts for secure mounting.

What stands out

• IP68 protection when used with suitable connectors
• Halogen-free and flame retardant (self-extinguishing)
• UV resistant for outdoor use
• Wide operating temperature range: -20°C to +90°C
• Minimum bend radius: 25 mm static, 50 mm dynamic

Technical details

• Material: Polypropylene (PP)
• Colour: Orange
• Length: 7.5 m
• Nominal outer diameter: 13 mm
• Inner diameter (approx.): 9.8 mm
• Connector thread size: M16 x 1.5
• Included components: 1x flexible conduit, 2x screw connections, 2x locknuts

Our verdict

A dependable conduit set for demanding environments, combining flexibility, chemical resistance, and high ingress protection.
