SATEL ACCO-KP2 modulo di controllo accessi senza case

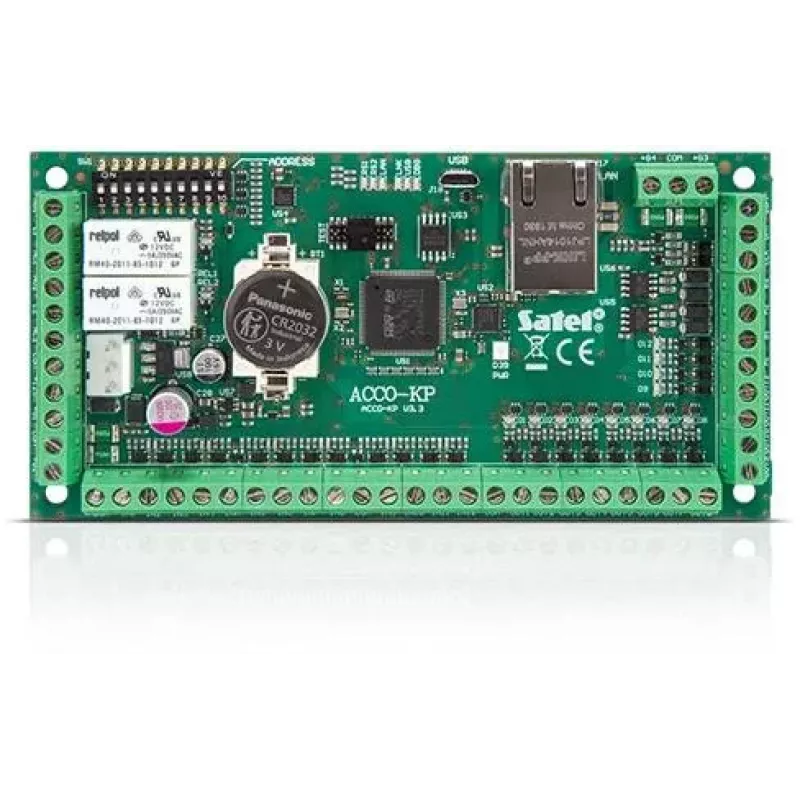

The SATEL ACCO-KP2 is a professional access control module designed for integration into the SATEL ACCO-NT system. This PCB-only module supports up to two Wiegand or DALLAS readers and provides comprehensive door control features, making it ideal for secure entry management in commercial and residential applications.

Advantages

Reliable and flexible access control with support for 1024 users and 24576 event log capacity. The module offers 8 programmable inputs and 4 outputs (2 relay, 2 OC) for versatile integration. Firmware updates via RS-485 ensure future-proof operation.

Suitable for

• Access control systems requiring up to two readers
• Integration with SATEL ACCO-NT security systems
• Door control with status monitoring and exit button support

Key specifications

• Module Type: Access Control Module
• Reader Support: 2 Readers (Wiegand 26-66 bit, DALLAS)
• Max Users: 1024
• Event Log Capacity: 24576 Events
• Programmable Inputs: 8
• Outputs: 4 (2 Relay, 2 OC)
• Communication Interface: RS-485
• Power Supply: 12 V DC
• Max Current Consumption: 150 mA
• Operating Temperature: -10°C to +55°C
• Time Zones: 250
• Schedules: 250
• Enclosure: Not included (PCB only)

Recommendations

For optimal performance, pair with SATEL ACCO-NT controllers and compatible readers. Ensure proper power supply and RS-485 wiring.
