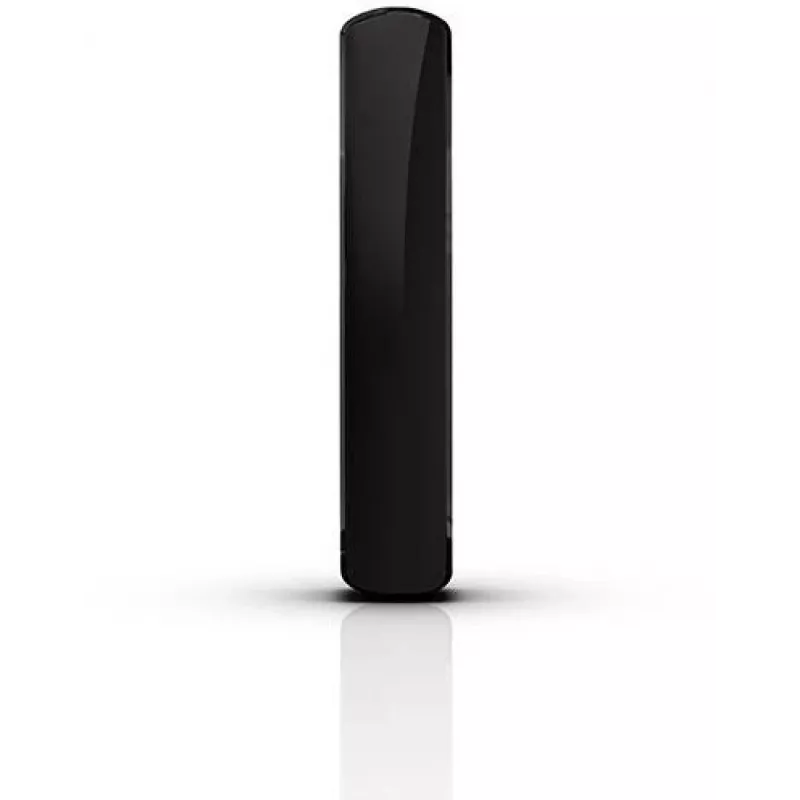

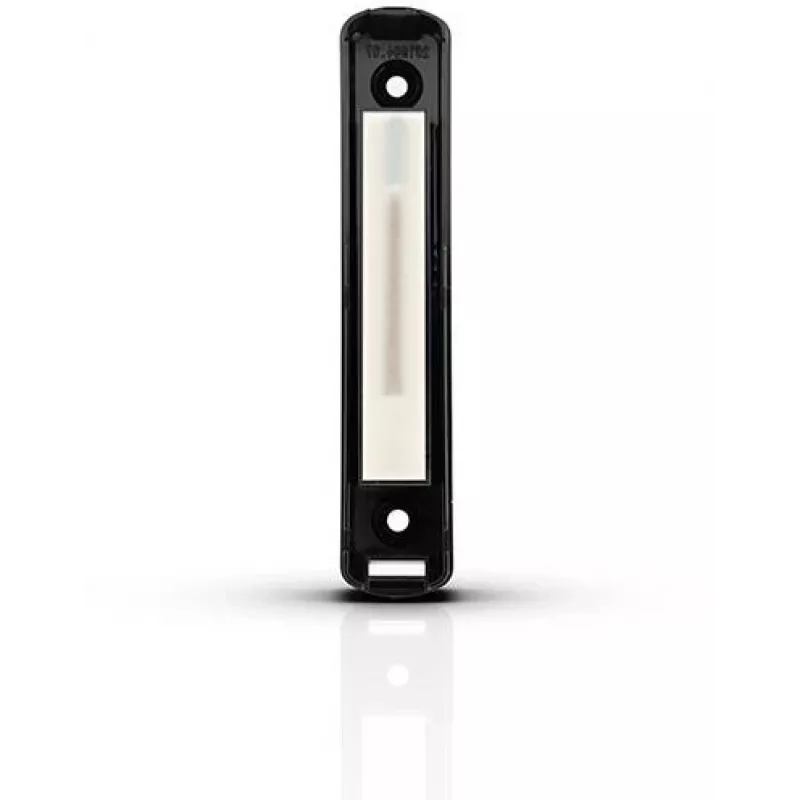

SATEL BE WAVE contatto magnetico in contenitore ermetico - nero OPXM B ABAX2

The SATEL OPXM-1 B is a wireless magnetic contact sensor designed for the ABAX2 system, featuring a hermetic enclosure for enhanced durability. Ideal for perimeter and door/window monitoring, it offers reliable detection with a maximum magnetic gap of 20 mm.

Advantages

Two-way encrypted communication (AES) ensures high security. Remote configuration and firmware updates simplify maintenance. The tamper protection includes enclosure opening and detachment detection.

Suitable for

• Perimeter protection
• Door and window monitoring
• Indoor and outdoor use (IP rating not specified, but hermetic enclosure)

Key specifications

• Wireless frequency: 868 MHz
• Range: up to 2000 m (open area)
• Power: 1x CR123A 3V lithium battery
• Battery life: up to 2 years
• Operating temperature: -10°C to +55°C
• Security grade: Grade 2 (EN 50131-2-6)
• Dimensions sensor: 102 x 24 x 23 mm
• Dimensions magnet: 48 x 14 x 12 mm

Recommendations

For optimal performance, use with SATEL ABAX2 control panels. Ensure proper alignment of sensor and magnet within 20 mm gap.
