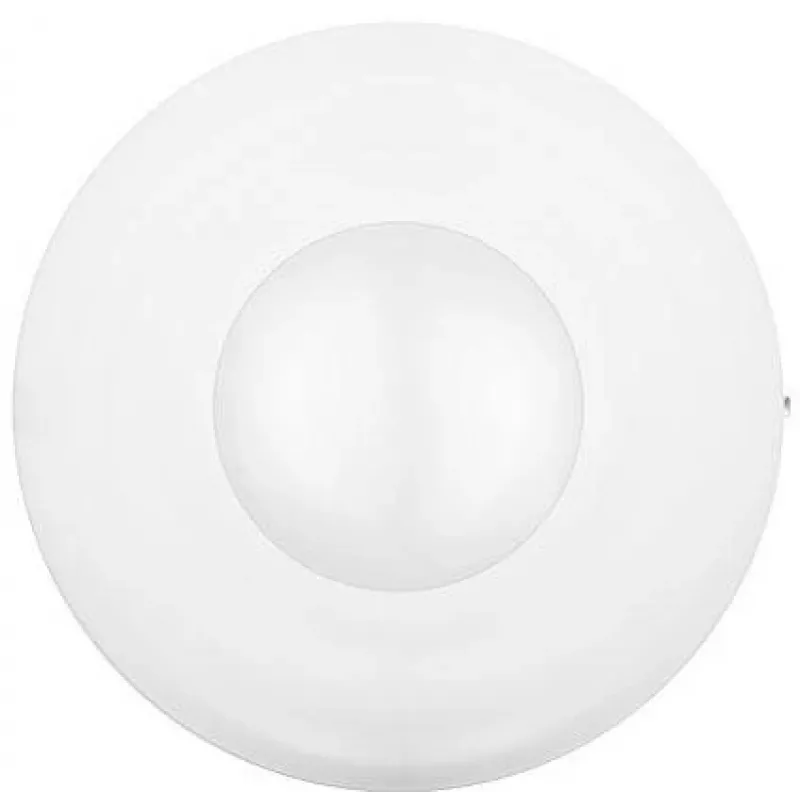

SATEL Magistral SLIM-S-DUAL-PRO BUS rilevatore doppio a soffitto (PIR e microonde)

The SATEL Magistral SLIM-S-DUAL-PRO BUS is a ceiling-mounted dual technology motion detector designed for professional indoor security systems. Combining passive infrared (PIR) and 24 GHz microwave (MW) detection, it offers reliable intrusion detection with enhanced pet immunity up to 20 kg. The detector communicates via the SATEL BUS protocol, enabling remote configuration and integration with SATEL alarm panels.

Advantages

Dual technology reduces false alarms by requiring both PIR and microwave triggers. Active IR anti-masking and tamper protection (opening and detachment) ensure high security. Adjustable sensitivity for both PIR and MW allows fine-tuning to the environment. Remote configuration via DLOADX software simplifies setup and maintenance.

Suitable for

• Indoor security installations in residential and commercial premises
• Ceiling-mount applications requiring wide-area coverage (up to 15 m x 24 m)
• Systems requiring Grade 2 security per EN 50131-2-4

Key specifications

• Detection Technology: PIR & Microwave (24 GHz K-band)
• Detection Range: Up to 15 m x 24 m (wide-angle)
• Pet Immunity: Up to 20 kg
• Anti-masking: Active IR
• Tamper Protection: Opening and detachment
• Power Supply: 12 VDC (from control panel)
• Current Consumption: Max 20 mA
• Operating Temperature: -10°C to +55°C
• Environmental Class: II (EN 50130-5)
• Security Grade: Grade 2 (EN 50131-2-4)
• Digital Signal Processing: Yes
• Adjustable Sensitivity: Yes (PIR and MW independently)
• Remote Configuration: Yes (via DLOADX)
• LED Indicator: Yes (alarm and pre-alarm)
• Housing Material: ABS Plastic
• Mounting: Ceiling
• Communication: SATEL BUS

Recommendations

For optimal performance, install the detector at a height of 2.5–3 m in areas with minimal temperature fluctuations. Avoid direct sunlight and HVAC vents. Use SATEL BUS-compatible control panels for full functionality.
