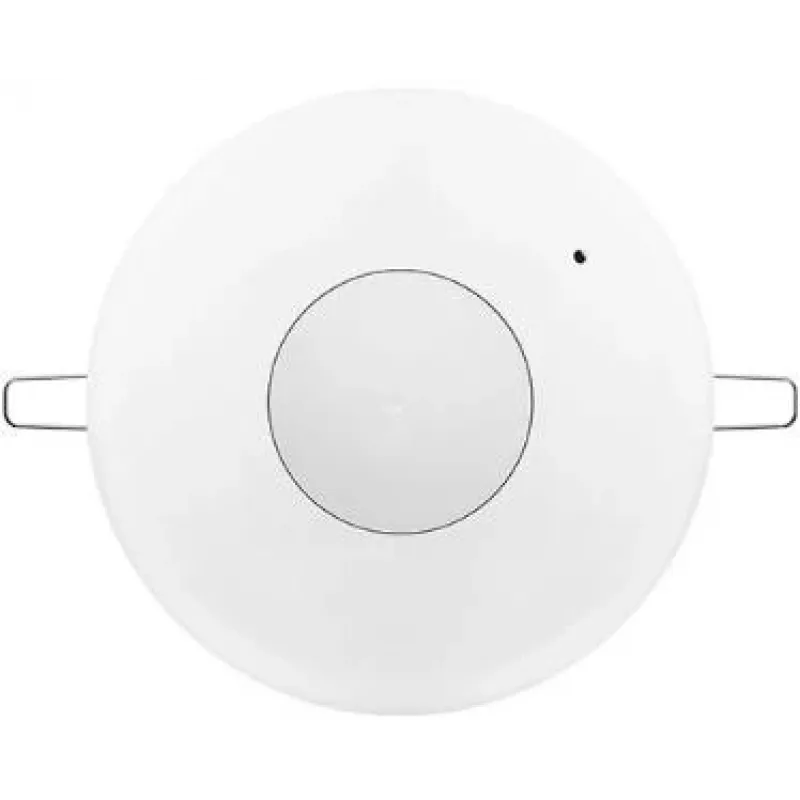

SATEL Rivelatore di movimento wireless doppio da soffitto APMC-250 R

The SATEL APMC-250 R is a wireless dual-technology ceiling motion detector that combines passive infrared (PIR) and microwave (MW) sensors for enhanced detection reliability. Designed for use with the SATEL ABAX 2 wireless system, it provides up to 16 meters of detection coverage at a 4-meter installation height. The detector is powered by a single CR123A lithium battery with a typical lifespan of up to 2 years, and features tamper protection against enclosure opening and detachment. Its compact white housing (110 mm diameter, 27 mm height) is made of ABS plastic, and the device supports remote configuration and independent sensitivity adjustment for both PIR and MW channels. Ideal for residential and commercial security applications, the APMC-250 R meets Grade 2 security standards and operates in temperatures from -10°C to +55°C.

Advantages

Dual detection technology reduces false alarms by requiring both PIR and microwave triggers. Wireless connectivity simplifies installation and integration with the ABAX 2 system. Long battery life and tamper protection ensure reliable, low-maintenance operation.

Suitable for

• Ceiling-mounted indoor security in homes, offices, and warehouses
• Integration with SATEL ABAX 2 wireless alarm systems
• Areas requiring pet immunity or reduced false alarms

Key specifications

• Detection Technology: Dual (PIR + Microwave)
• Mounting Type: Ceiling
• Wireless Frequency: 868 MHz (ABAX 2)
• Microwave Frequency: 24 GHz (K-band)
• Detection Coverage: Up to 16 m diameter (at 4 m height)
• Recommended Installation Height: 2.4 m to 4 m
• Power Supply: 1x CR123A 3V Lithium Battery
• Battery Life: Up to 2 years
• Tamper Protection: Enclosure opening and detachment
• Operating Temperature: -10°C to +55°C
• Environmental Class: II (EN 50130-5)
• Security Grade: Grade 2 (EN 50131-2-4)
• Remote Configuration: Yes (via ABAX 2 controller)
• Sensitivity Adjustment: Independent PIR and MW
• Test Mode: Yes, with LED indication
• Alarm Signaling: Wireless
• Housing Material: ABS Plastic
• Color: White
• Dimensions (Diameter x Height): 110 mm x 27 mm

Recommendations

For optimal performance, install at the recommended height of 2.4 to 4 meters and ensure clear line of sight. Pair with a compatible SATEL ABAX 2 controller for full remote configuration and monitoring.
