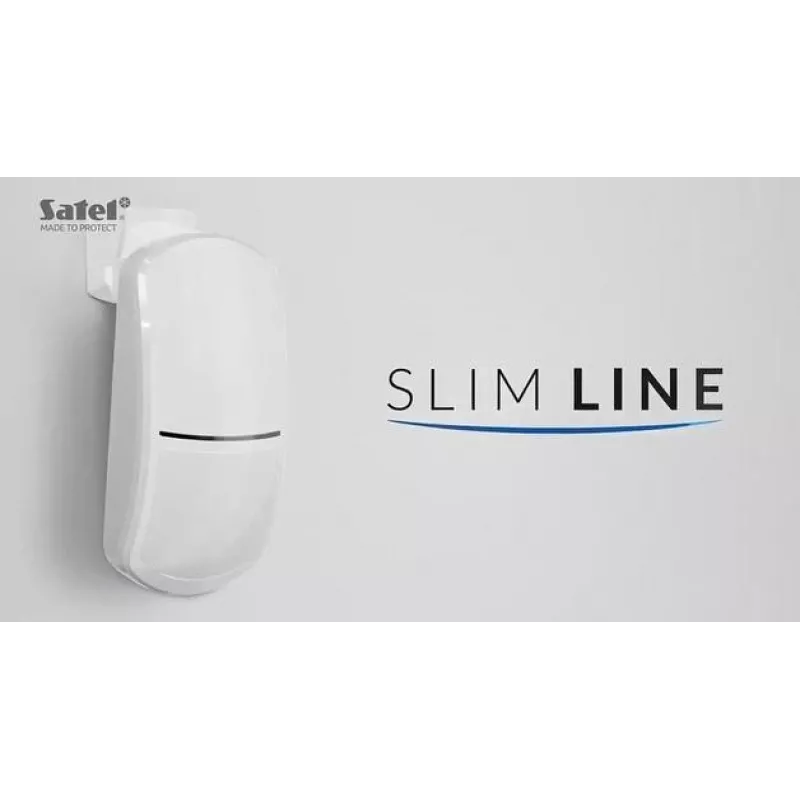

SATEL SLIM-DUAL sensore di movimento doppio PIR + microonde

The SATEL SLIM-DUAL is a high-performance dual-technology motion detector combining passive infrared (PIR) and microwave (MW) sensors for enhanced false alarm immunity. Designed for professional security systems, it offers reliable detection in residential and commercial premises.

Advantages

Dual sensor technology reduces false alarms caused by pets, temperature changes, or environmental disturbances. Independent sensitivity adjustment for PIR and MW allows precise tuning. Compact slim design fits discreetly in any interior. Digital signal processing ensures stable detection.

Suitable for

• Indoor security systems in homes, offices, shops, and warehouses
• Areas requiring high detection reliability with minimal false alarms
• Integration with wired alarm control panels supporting NC relays and EOL resistors

Key specifications

• Detection technology: Dual PIR + Microwave (24.125 GHz)
• Detection range: 15 m x 24 m (90° angle)
• Power supply: 9-15 V DC, max 12 mA
• Alarm output: NC relay, 40 mA / 24 V DC
• Tamper output: NC relay, 40 mA / 24 V DC
• Operating temperature: -10°C to +55°C
• Recommended mounting height: 2.4 m
• Compliance: EN 50131-2-4 Grade 2
• Housing material: ABS plastic, white

Recommendations

For optimal performance, mount at 2.4 m height and avoid direct sunlight or heat sources. Use with a compatible alarm panel that supports dual-technology detectors. Test sensitivity settings during installation.
