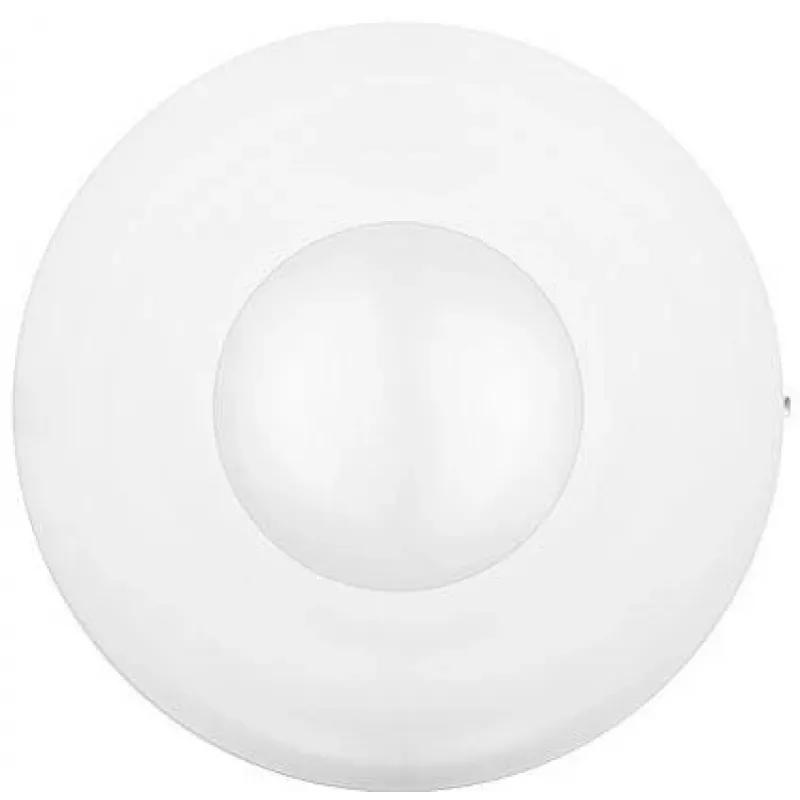

Satel SLIM-S-PIR-PRO BUS rilevatore di movimento PIR a soffitto con antimascheramento, montaggio a parete

The Satel SLIM-S-PIR-PRO BUS is a digital PIR motion detector designed for ceiling mounting in security systems. It features active IR anti-masking and communicates via the SATEL BUS interface, making it ideal for integration into SATEL alarm systems. With a 360° detection angle and a range of up to 5.5 m, it provides reliable intrusion detection for indoor applications.

Advantages

Active IR anti-masking prevents tampering attempts by detecting objects placed in front of the detector. Digital temperature compensation ensures stable performance across varying temperatures. Remote configuration via DLOADX software allows easy adjustments without physical access.

Suitable for

• Ceiling-mounted indoor security applications
• Integration with SATEL BUS alarm systems
• Areas requiring anti-masking protection

Key specifications

• Detector Type: Digital PIR (Passive Infrared)
• Detection Angle: 360°
• Detection Range: Up to 5.5 m (radius at 2.4 m mounting height)
• Mounting Type: Ceiling, Surface-mounted
• Communication Interface: SATEL BUS
• Anti-Masking: Yes, Active IR
• Tamper Protection: Enclosure opening, removal from mounting
• Power Supply: 12 V DC (from BUS)
• Current Consumption: Max. 20 mA
• Operating Temperature: -10°C to +55°C
• Environmental Class: II (EN 50130-5)
• Security Grade: Grade 2 (EN 50131-2-2)
• Digital Temperature Compensation: Yes
• Sensitivity Adjustment: Yes
• LED Indicator: Yes
• Remote Configuration: Yes (via DLOADX software)

Recommendations

For optimal performance, mount at a height of 2.4 m and ensure the detection area is free of obstructions. Use with SATEL control panels for full feature support.
