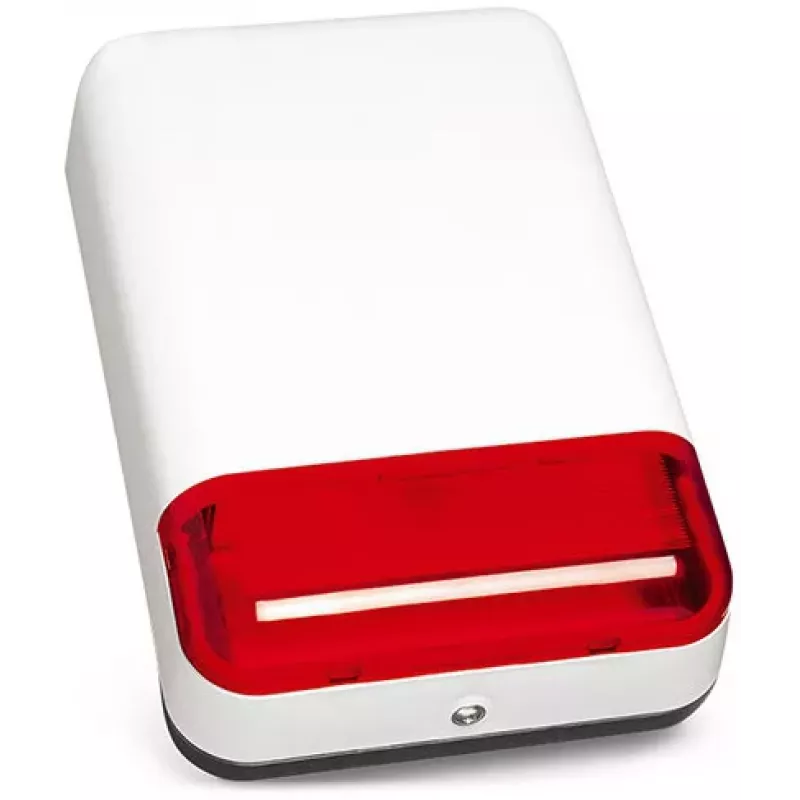

SATEL SPL-2030 R Sirena esterna acustico-ottica

The SATEL SPL-2030 R is a professional outdoor acoustic-optical siren designed for reliable alarm signaling in security systems. Combining a powerful piezoelectric transducer with super-bright LEDs, it delivers clear audible and visual alerts even in harsh environmental conditions. The red polycarbonate housing ensures durability and weather resistance, while integrated tamper protection safeguards against unauthorized access.

Advantages

High sound intensity of 120 dB at 1 meter ensures effective deterrence. Independent control of acoustic and optical signaling allows flexible alarm scenarios. Alarm memory with LED indication simplifies system diagnostics. Wide operating temperature range (-30°C to +70°C) and IP54 rating guarantee reliable performance outdoors.

Suitable for

• Outdoor perimeter security
• Industrial and commercial alarm systems
• Residential security installations
• Integration with SATEL and third-party control panels

Key specifications

• Signalling Type: Acoustic-Optical
• Acoustic Element: Piezoelectric Transducer
• Optical Element: Super-bright LEDs
• Sound Intensity: 120 dB (at 1m)
• Power Supply: 12 V DC
• Max Current Consumption: 270 mA
• Operating Temperature: -30°C to +70°C
• IP Rating: IP54
• Housing Material: Polycarbonate
• Tamper Protection: Against opening and removal
• Alarm Memory: Yes (LED indication)
• Control Inputs: Independent acoustic and optical
• Mounting: Wall-mounted
• Housing Color: Red

Recommendations

For optimal performance, use with a compatible 12 V DC power supply and ensure proper weatherproofing of connections. The siren should be mounted at a height of at least 2 meters to maximize coverage and deterrence.
