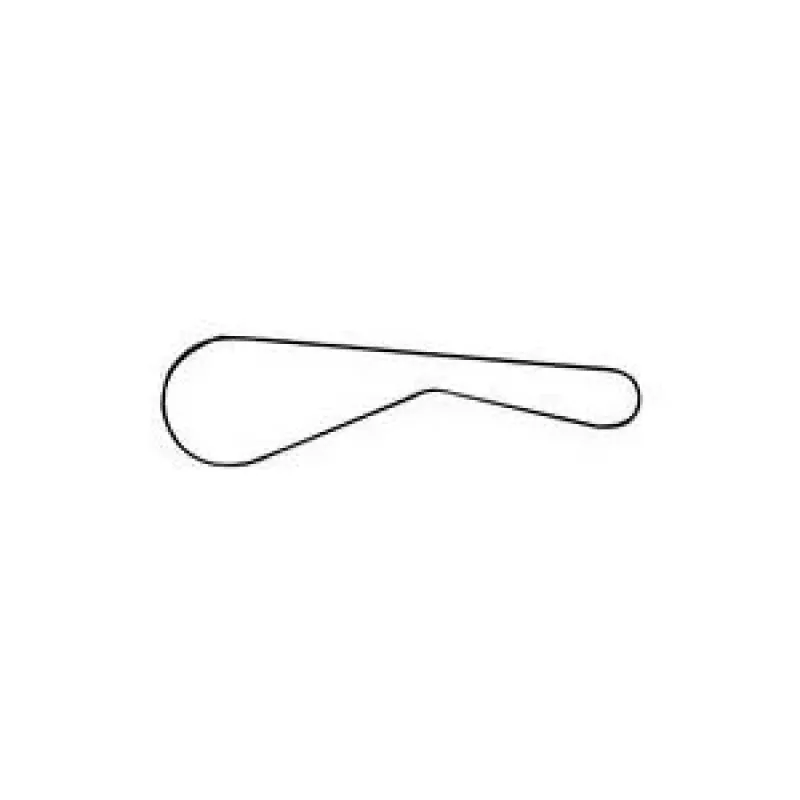

SATO cinghia di trasmissione (P34928000)

Printhead carriage drift and skipped teeth on SATO industrial printers lead to misaligned labels, wasted media, and costly downtime. The SATO P34928000 timing belt restores the precise motion transfer your print engine depends on, matching the exact pitch and profile of the original drive component.

Who is it for

Service technicians and maintenance teams responsible for SATO CL4NX, CL4NX Plus, CL6NX, CL6NX Plus, S84-EX, S86-EX, and M84Pro Series industrial printers. Ideal for high-volume labeling operations where print accuracy and uptime are critical.

Main features

• Genuine SATO spare part engineered to factory specifications
• 3 mm pitch HTD profile ensures smooth, synchronous carriage movement
• 15 mm width provides stable load distribution for long service life
• Fiberglass-reinforced neoprene resists stretching and wear
• Closed loop design for direct replacement without splicing

Specifications

• Part number: P34928000
• Product type: Timing belt
• Brand compatibility: SATO
• Printer compatibility: CL4NX, CL4NX Plus, CL6NX, CL6NX Plus, S84-EX, S86-EX, M84Pro Series
• Belt width: 15 mm
• Belt pitch: 3 mm
• Belt profile: HTD 3M
• Material: Neoprene rubber with fiberglass cords
• Colour: Black
• Configuration: Closed loop
• Application: Printhead carriage drive mechanism

Tips

Replace the timing belt at the first sign of print drift or unusual carriage noise. Always power off and disconnect the printer before service, and check belt tension after installation according to the service manual for your specific model.
