Scatola di connessione Axis 02025-001

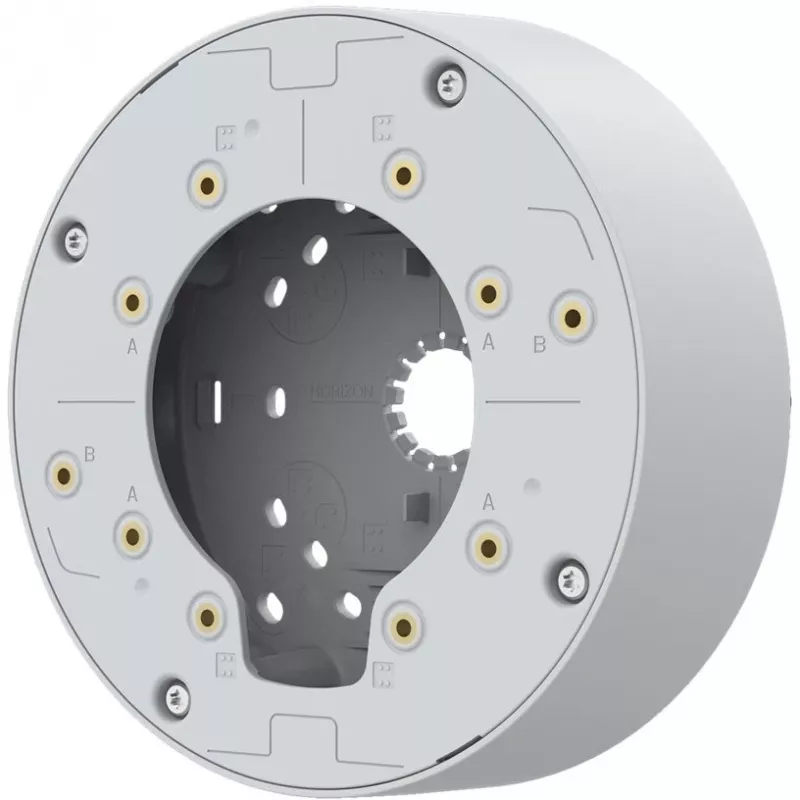

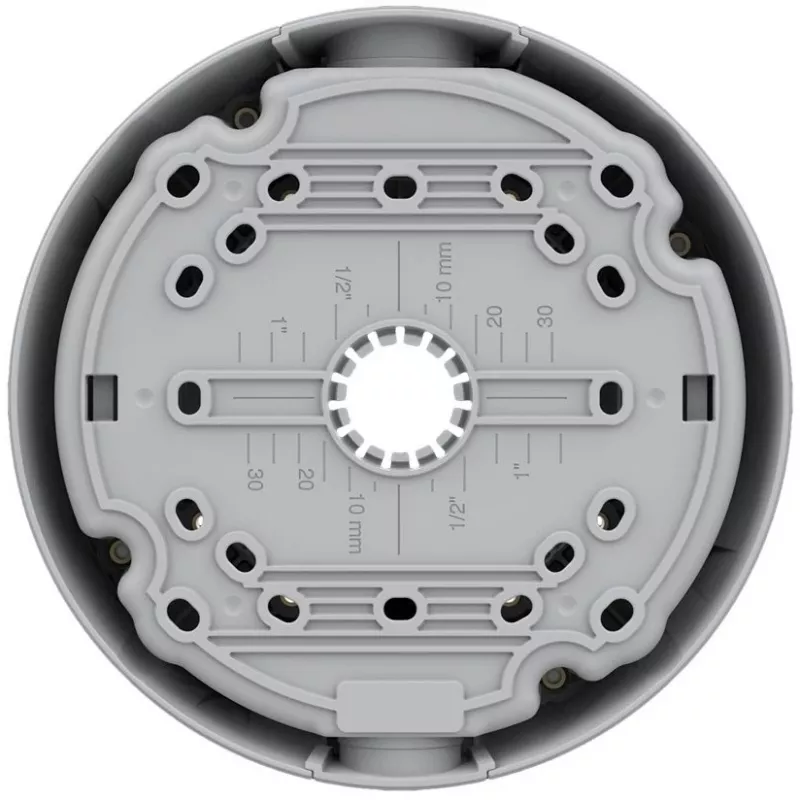

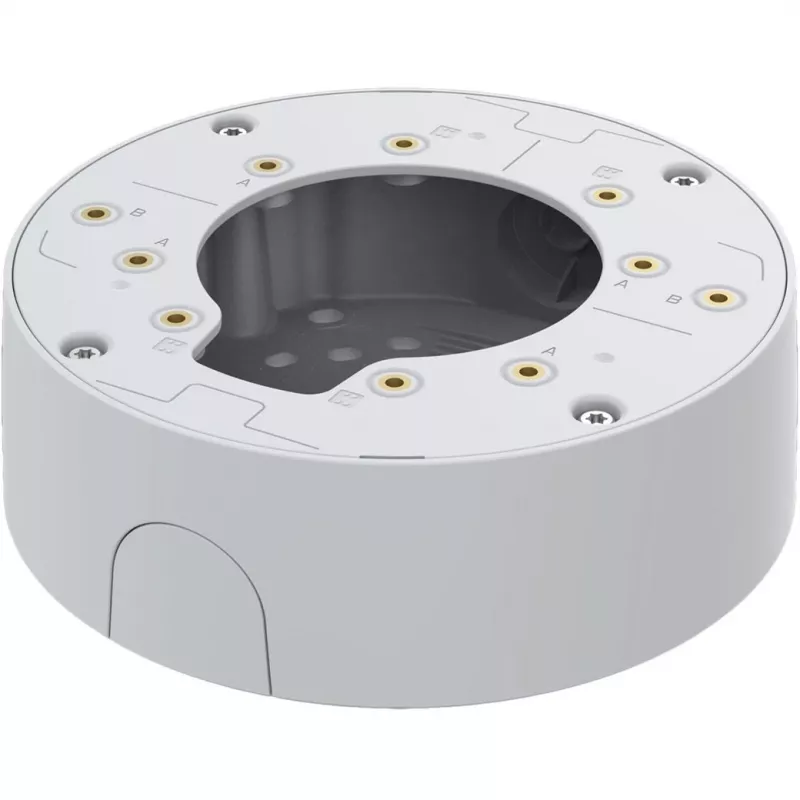

AXIS TP3603 Conduit Back Box is designed for large indoor installations where extra space for connectors and termination jacks is required. The back box helps streamline and shorten installation time by providing a dedicated enclosure for cable routing and terminations, and it is compatible with a wide range of Axis products.

Advantages

The AXIS TP3603 offers two separate conduit entries (1/2" and 3/4"), giving installers flexibility when choosing conduit sizes. Its roomy interior accommodates connectors and termination jacks, reducing onsite assembly complexity and helping to protect connections within a single enclosure.

Key specifications

• Model: AXIS TP3603 Conduit Back Box
• Application: Indoor installations
• Conduit entries: 1/2" and 3/4"
• Compatibility: Compatible with a wide range of Axis products

How to use

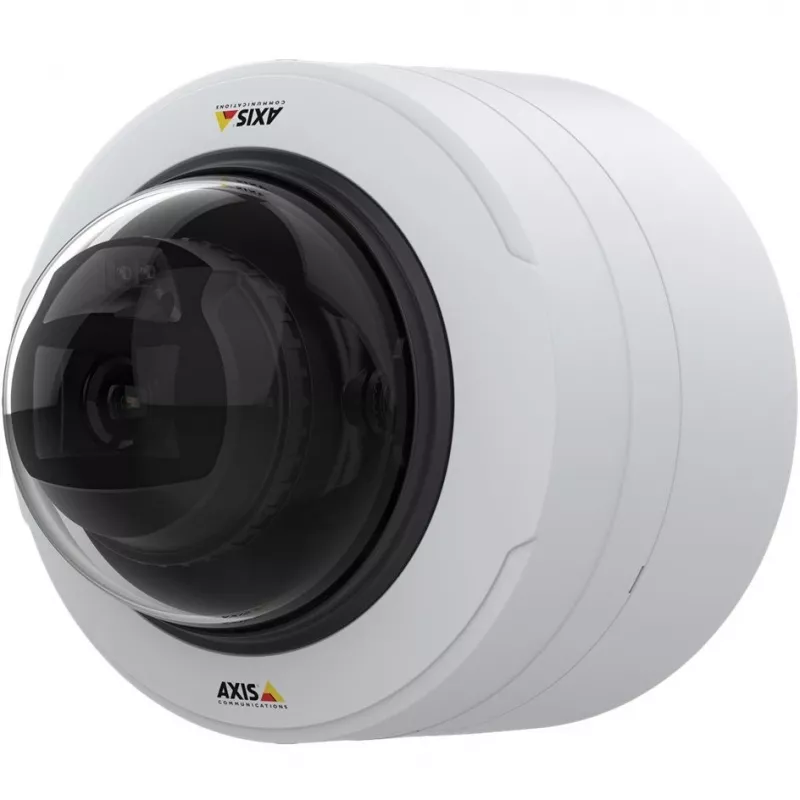

Mount the AXIS TP3603 at the desired indoor location where extra space for terminations is needed. Route cables through the appropriate conduit entry (1/2" or 3/4") and secure conduits according to local codes. Place connectors and termination jacks inside the back box, then mount the compatible Axis device to complete the installation.

Recommendations

Use the conduit size that matches your existing cabling and follow local electrical and building codes for conduit and enclosure installation. Verify compatibility with the specific Axis product before final mounting.
