Scatola di connessione Hikvision DS-SBOX-01 outdoor bianco 259,7x130,1x318,6mm

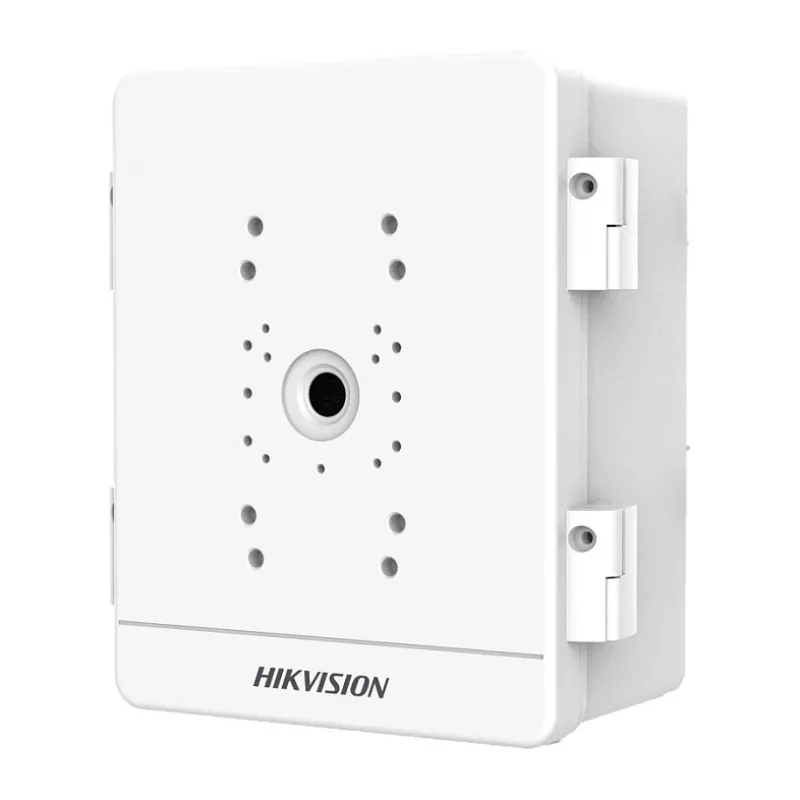

The Hikvision DS-SBOX-01 is a white outdoor junction box measuring 259.7 x 130.1 x 318.6 mm, designed to house and protect electrical and network connections for security camera installations. Made of high-strength polycarbonate, the box provides durable protection against environmental factors and mechanical impact while maintaining compatibility with Hikvision network cameras, PTZ units and network horn speakers.

Advantages

This junction box is constructed from flame-retardant polymer material (UL94-V0) for improved safety and uses polycarbonate housing for impact resistance (IK10) and weather protection (IP66). It supports quick installation on poles or walls and works with common Hikvision mounting brackets, offering a neat, secure enclosure for cables and connections to extend the service life of outdoor camera systems.

Suitable for

• Outdoor network cameras and PTZ units
• Network horn speakers used in surveillance systems
• Situations requiring pole or wall mounting of camera junctions
• Installations needing IP66 and IK10 rated protection

Key specifications

• Model: DS-SBOX-01
• Dimensions: 259.7 × 130.1 × 318.6 mm (W × D × H)
• Material: Polycarbonate (PC), flame proof UL94-V0
• Protection rating: IP66 and IK10
• Mounting: Pole or wall mount compatible; recommended bracket DS-1275ZJ-SUS for poles 67–127 mm diameter
• Application: Outdoor junction box for Hikvision devices
• Brand compatibility: Hikvision Digital Technology

How to use

Mount the DS-SBOX-01 on a suitable wall or on a pole using appropriate fasteners or the recommended DS-1275ZJ-SUS bracket for pole diameters between 67 mm and 127 mm. Route camera and power cables into the box through the provided entries, make the necessary electrical and network connections inside the enclosure, and secure the cover to maintain IP66 protection. Ensure cable glands or seals are properly fitted to preserve weatherproofing.

Recommendations

For reliable long-term performance, install the junction box in accordance with local electrical and building codes, use compatible mounting hardware, and verify seals after exposure to severe weather. Use with Hikvision network cameras, PTZs, and network speakers as specified by the manufacturer.
