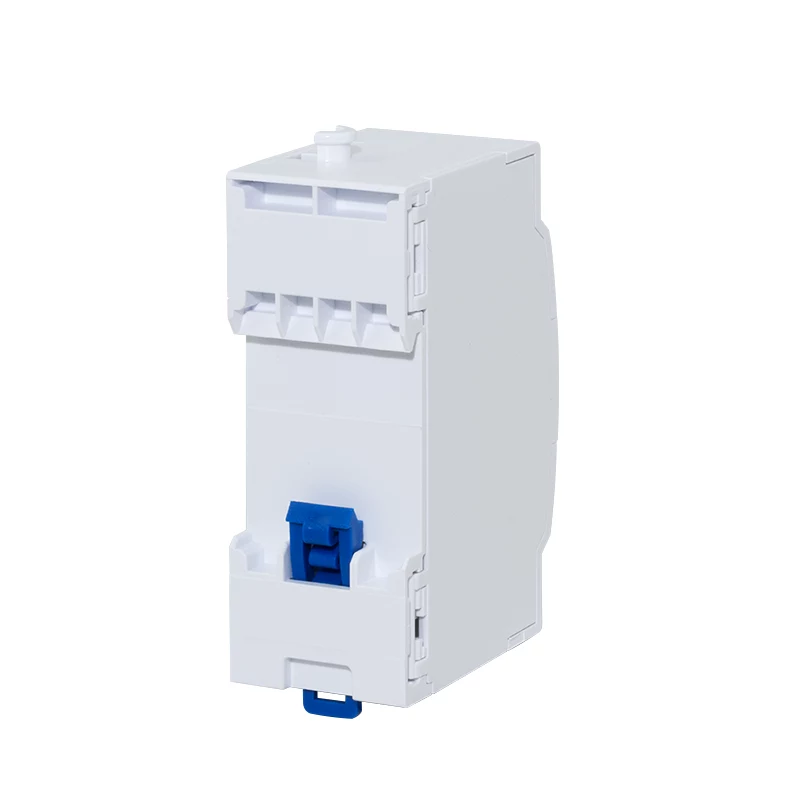

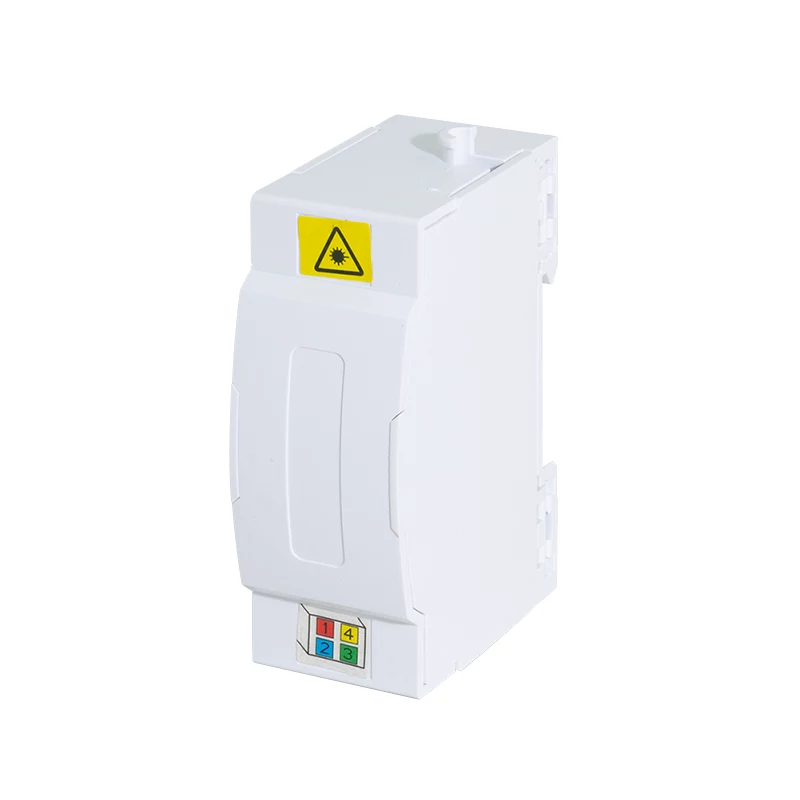

Scatola di terminazione FTTH LogiLink per montaggio su guida DIN, 4 porte, bianca

Supporting up to 4 fibers and 4 fusion splices, the LogiLink FB1009 FTTH Termination Box delivers reliable, high-density fiber distribution in FTTx networks. Its DIN rail mounting design enables quick installation in compact enclosures, while the integrated cable management system provides strain relief and organized routing for feeder and drop cables.

Overview

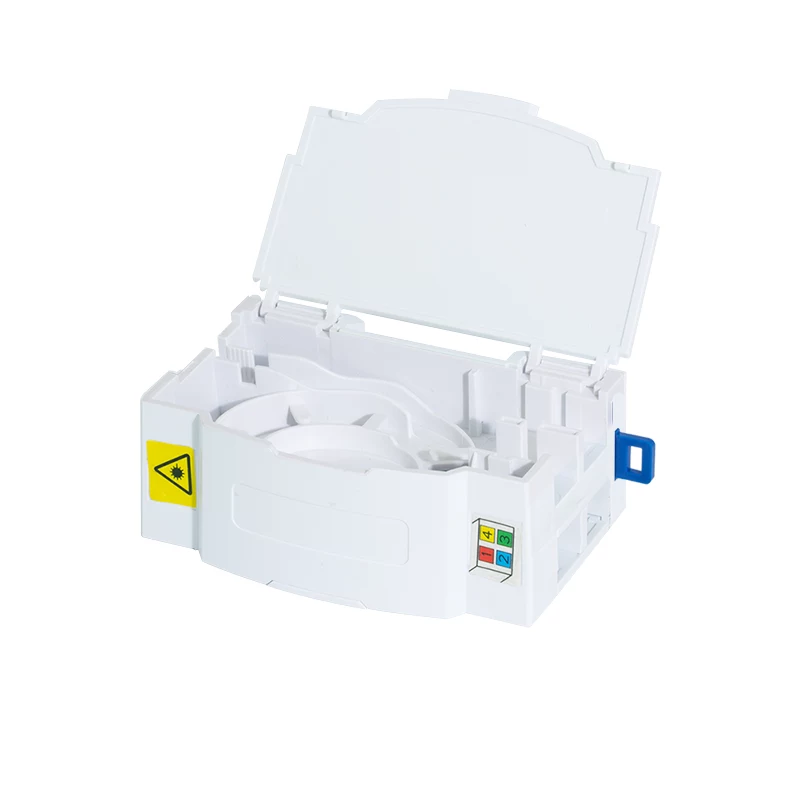

The LogiLink FB1009 is a robust fiber termination solution crafted from high-quality ABS plastic in a clean white finish. It supports SC simplex and LC duplex adapter footprints, offering flexibility for various network configurations. The screw-on cover secures internal components, protecting splices and adapters from dust and tampering. With multiple cable entry points, it simplifies deployment in both residential and commercial FTTH applications.

What stands out

• DIN rail mounting for space-saving installation in control cabinets and distribution boxes
• Supports up to 4 fibers and 4 fusion splices for efficient fiber management
• Compatible with SC simplex and LC duplex adapters for versatile connectivity
• High-quality ABS plastic housing with screw-on cover for durability and security
• Integrated cable routing and strain relief to maintain bend radius and reduce stress
• Wide operating temperature range from -20°C to +70°C for harsh environments

Technical details

• Product type: FTTH Termination Box
• Mounting type: DIN Rail
• Port capacity: 4 ports
• Fiber capacity: Up to 4 fibers
• Adapter footprint: SC Simplex / LC Duplex
• Splice capacity: 4 fusion splices
• Cable entry points: Multiple (for feeder and drop cables)
• Material: High-quality ABS plastic
• Color: White
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Standards compliance: RoHS

Our verdict

The LogiLink FB1009 is a reliable and compact FTTH termination box, ideal for DIN rail installations in tight spaces. Its robust ABS housing and flexible adapter support make it a practical choice for fiber distribution in both residential and commercial networks.
