Scheda adattatore estrusore Flashforge 30002136001 per connessione estrusore stampante 3D

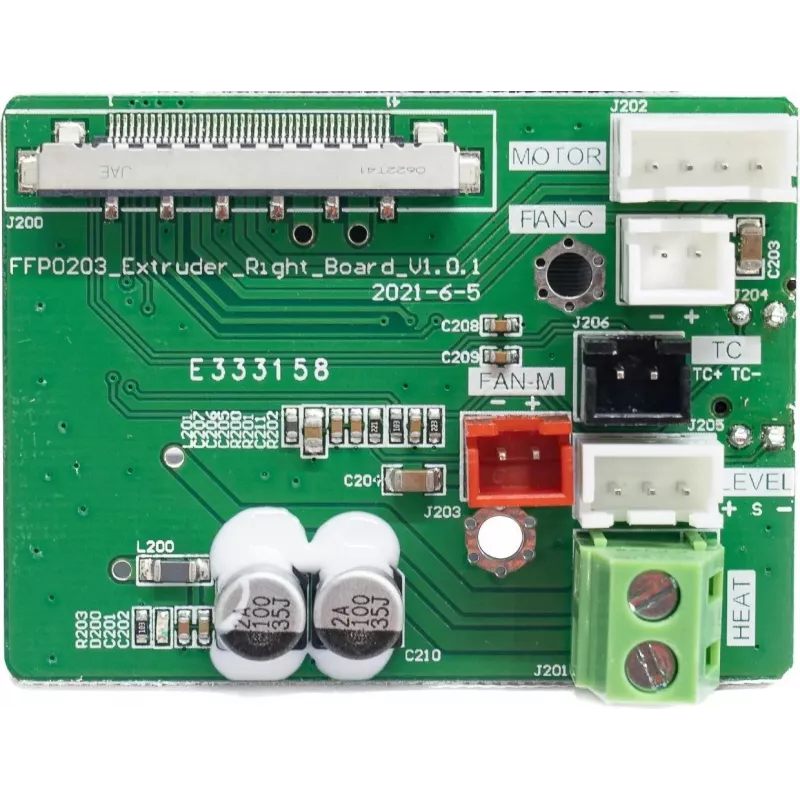

Flashforge Extruder Adapter Board model 30002136001 (C3P) is a replacement adapter board intended to restore electrical and signal connections between a compatible 3D printer mainboard and its extruder. The board enables communication, power distribution and sensor interfacing required for proper extruder operation, helping to return printers to working condition after a failure or during component replacement. It is designed for use with Flashforge systems that accept this specific adapter form and connector layout.

Advantages

The adapter board provides a compact, ready-to-install solution to re-establish extruder connectivity without replacing the whole mainboard or extruder assembly. It supports standard signal and power lines used by Flashforge extruders, reducing troubleshooting time during repairs. Its form factor and connector arrangement match compatible printer models to ensure a consistent fit and reliable electrical contacts, which helps maintain print quality and consistent extruder performance.

Suitable for

• Repairing a non-responsive or electrically damaged extruder connection
• Replacing a faulty adapter board during routine maintenance
• Upgrading a printer where a compatible adapter board is required
• Service centers and technicians performing 3D printer diagnostics and fixes

Key specifications

• Function: adapter board for extruder electrical and signal interfacing
• Compatibility: designed for specific Flashforge extruder connector layouts and systems
• Connectors: multi-pin extruder and mainboard sockets for power, thermistor, heater and control signals
• Form factor: compact PCB sized to match compatible Flashforge mounting and connector positions
• Electrical: supports standard low-voltage DC power and digital/analog sensor signals used in extruder modules

How to use

Power down the printer and disconnect it from the mains before beginning any work. Remove the printer cover panels as needed to access the existing extruder adapter or wiring harness. Unplug the old adapter board from both the extruder and the mainboard connectors, noting connector orientation and cable routing. Install the replacement adapter board by seating the connectors in the correct sockets and routing cables to avoid strain or interference. Reassemble covers, reconnect power and perform an initial test sequence to verify heater, thermistor and motor signals respond correctly. If necessary, run basic calibration and a short test print to confirm normal operation.

Recommendations

Handle the PCB and connector pins with care to avoid bending or contamination. Use ESD precautions when working inside the printer. If uncertain about compatibility or installation steps, consult Flashforge service documentation or contact a qualified technician to prevent damage to the printer or extruder components.
