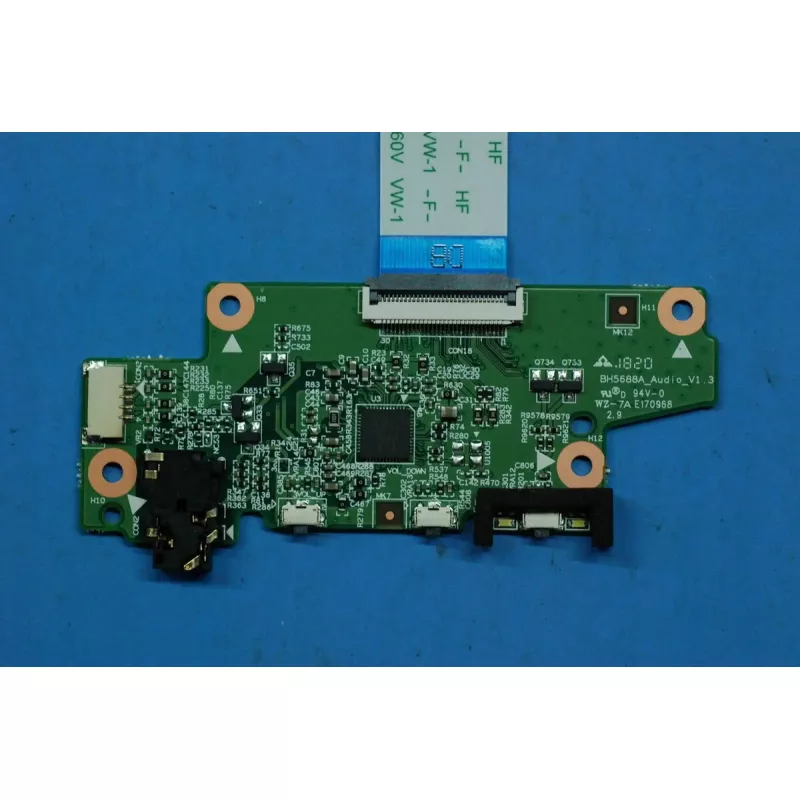

Scheda audio secondaria Lenovo 5P68C11489 — scheda audio di ricambio per laptop Lenovo

The Audio sub board Lenovo 5P68C11489 is a replacement audio daughterboard designed for compatible Lenovo laptop models. It restores the audio port and associated circuitry to enable headphone, microphone and line-out functions when the original board is faulty or damaged. This component is intended for repair or refurbishment of laptops to return full onboard audio connectivity without replacing the entire mainboard.

Advantages

This replacement audio daughterboard provides a direct way to restore audio I/O functionality. It supports standard analog audio connectors used in many Lenovo laptops and integrates with the existing internal cabling and connectors. Replacing only the sub board reduces repair cost and time compared with mainboard replacement and helps maintain the original device configuration. The module is compact and matches the form factor required for compatible models, ensuring a precise fit.

Suitable for

• Repairing laptops with no sound from headphone or microphone jack
• Refurbishment projects to restore full audio I/O
• Service centres performing component-level laptop repairs
• Users replacing a physically damaged or non-responsive audio port

Key specifications

• Function: analog audio I/O daughterboard (headphone and microphone ports)
• Form factor: compact replacement sub board designed for specified Lenovo laptop layouts
• Interface: internal board-to-mainboard connector compatible with original laptop wiring
• Compatibility: built to match mechanical and electrical connections of supported Lenovo models
• Mounting: PCB with pre-attached connector and screw points for secure installation

How to use

Power off the laptop, disconnect any power sources and remove the battery if applicable before beginning. Open the laptop case following the manufacturer's service manual for the specific model to access the internal sub boards. Disconnect the existing audio daughterboard from its cable and remove any mounting screws. Install the replacement board in the same orientation, secure it with the original screws, and reconnect the internal cable to the mainboard connector. Reassemble the laptop and perform a basic audio test in the operating system to confirm headphone and microphone detection and function.

Recommendations

Perform installation on an anti-static surface and use appropriate ESD protection. If unsure about compatibility or the disassembly process, consult the laptop service manual or seek professional repair assistance. After installation, update or reinstall audio drivers if the operating system does not automatically detect the hardware.
