Scheda DeLOCK PCI Express x16 su 4 x NVMe M.2 Key M interne 89044

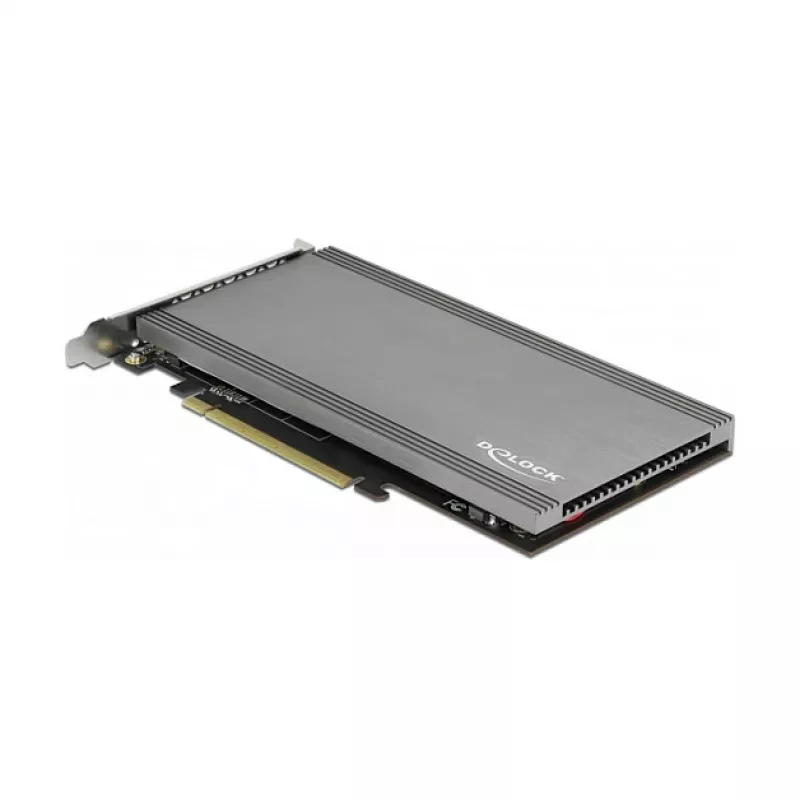

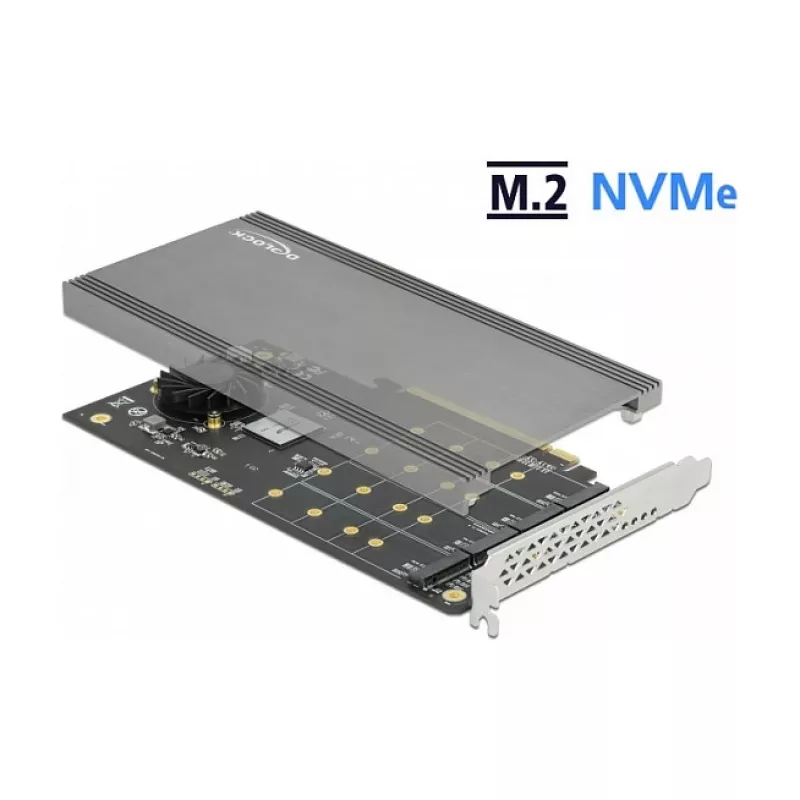

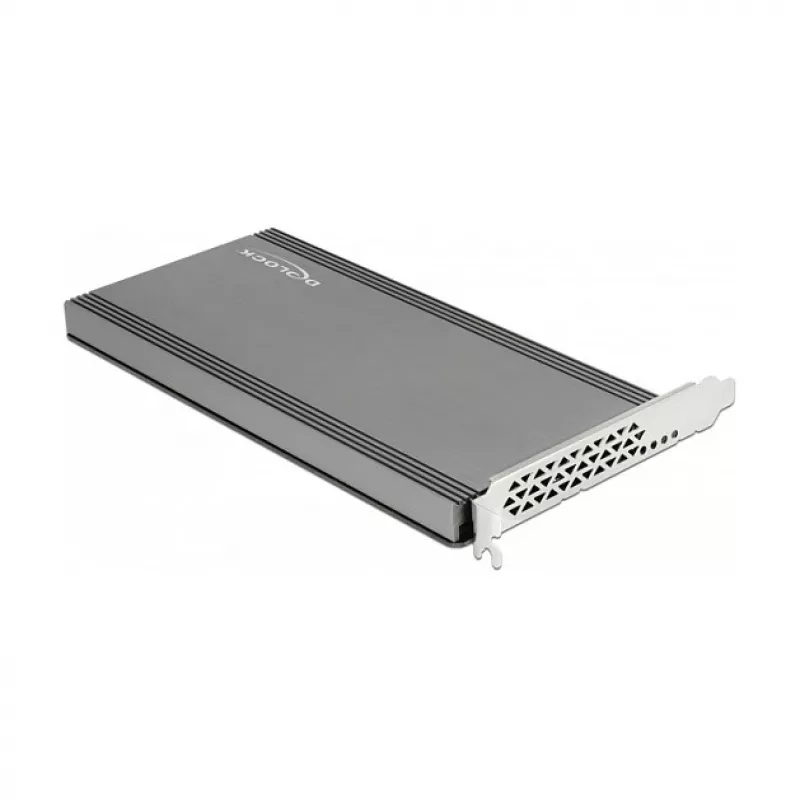

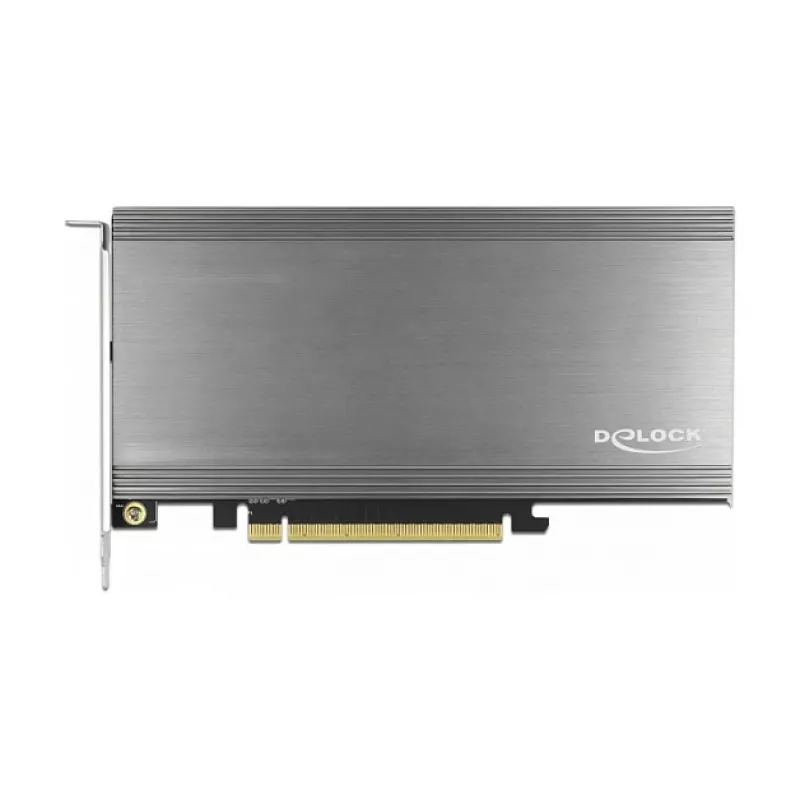

This PCI Express x16 card by DeLOCK provides four internal NVMe M.2 Key M slots for upgrading a desktop or server system. It supports M.2 SSDs in sizes 2280, 2260, 2242 and 2230 and uses a PCIe 3.0 host interface with a maximum data transfer rate of 32 Gbit/s. The card is equipped with a large heatsink and an active fan to ensure sufficient cooling when multiple M.2 modules are installed.

Advantages

The DeLOCK card expands a PC or server with four simultaneous NVMe M.2 connections while occupying a single PCIe x16 slot. Active cooling with a heatsink and fan helps maintain performance under load. Compact dimensions (95 × 202 × 8 mm) and internal mounting make it suitable for systems that require additional high-speed storage without external adapters.

Suitable for

Key specifications

How to use

Install the DeLOCK PCI Express x16 card into an available PCIe x16 slot on the motherboard. Mount up to four M.2 NVMe SSDs of supported lengths into the M.2 slots and secure them according to the motherboard or card instructions. Connect any required power or system fan headers if applicable, then power on the system and configure the drives in the operating system or BIOS/UEFI.

Recommendations

For best results, ensure the system chassis provides adequate airflow and verify compatibility with the motherboard BIOS/UEFI. When installing multiple high-performance NVMe drives, monitor temperatures and consider additional case cooling if the card operates under sustained heavy load.
