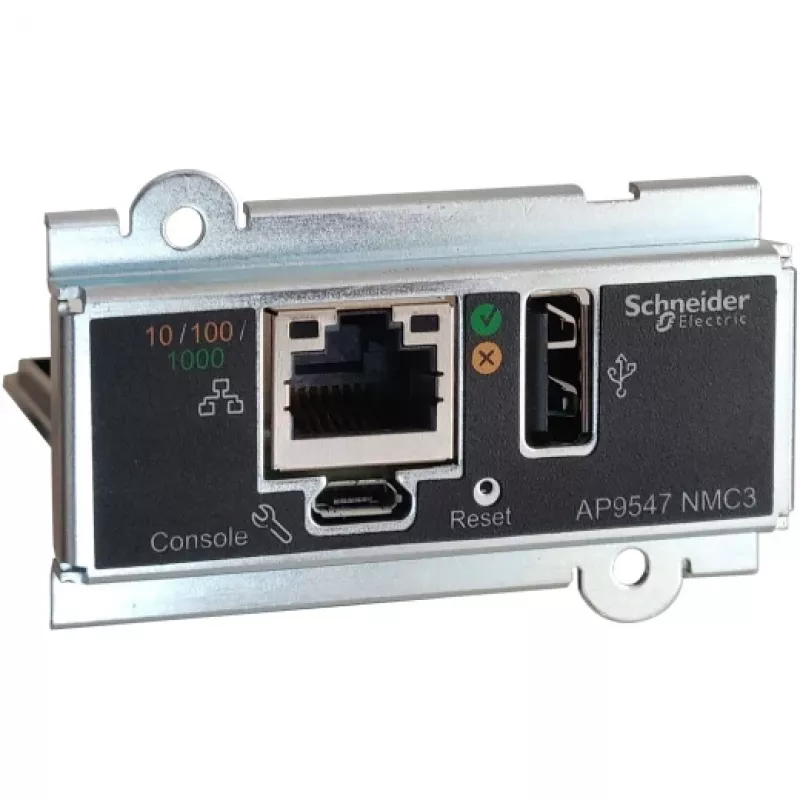

Scheda di gestione rete APC AP9547 Gigabit Ethernet RJ-45

The APC AP9547 Network management card provides secure remote monitoring and control for one Easy UPS 3S, Easy UPS 3M or Easy UPS 3L. With Gigabit Ethernet (RJ-45) connectivity it supports 10/100/1000 Mbit/s links and integrates with web browser interfaces, EcoStruxure IT software or any SNMP-enabled management system. A 12-month support contract for firmware updates is included; after it expires a new support contract is required to receive further firmware updates, priority support and cybersecurity patches.

Advantages

The card delivers real-time fault notifications and event logging to reduce response times and help trace sequences of events. Remote device management and scheduled shutdown/reboot functions allow administrators to control UPS and connected equipment over the network, including remote reboot of devices to avoid technician dispatch. Multi-tier user access, password security and RADIUS support provide flexible and secure authentication. The AP9547 forwards SNMP traps (SNMPv1 and SNMPv3) using the PowerNet MIB and integrates with StruxureWare / EcoStruxure management systems for enterprise monitoring. Firmware is flash-upgradeable via FTP and data logging captures trends for export and analysis.

Suitable for

• Remote monitoring and management of Easy UPS 3 Series (3-phase) units
• Integration with SNMP-based enterprise management systems
• Network-based scheduled shutdown and reboot of servers and connected equipment
• Environments requiring centralized event logging and firmware management

Key specifications

• Model: APC AP9547
• Network interface: Gigabit Ethernet RJ-45 (10/100/1000 Mbit/s)
• Protocols: PowerNet MIB, SNMP (v1, v3), BACnet
• Dimensions: 52 mm (W) x 80 mm (D) x 44 mm (H)
• Weight: 0.05 kg
• Colour: Black, Metallic
• Compatibility: Easy UPS 3S, 3M, 3L series
• Includes: 12-month firmware support contract (renewable)

How to use

Install the AP9547 card into the compatible Easy UPS 3 Series UPS according to the UPS installation guide. Connect the card to your network using the RJ-45 Gigabit Ethernet port. Access the device interface via a web browser, EcoStruxure IT or an SNMP-enabled management system to configure network settings, user accounts and scheduled shutdown or reboot tasks. Use FTP to apply firmware updates when available and export data logs for offline analysis.

Recommendations

Keep the included 12-month support contract active to receive firmware updates and security patches; configure multi-tier access and strong passwords or RADIUS authentication to protect management access. Regularly export event and data logs to monitor trends and validate scheduled shutdown procedures in test scenarios before applying them in production.
