Scheda di interfaccia DeLOCK 62710 interna M.2

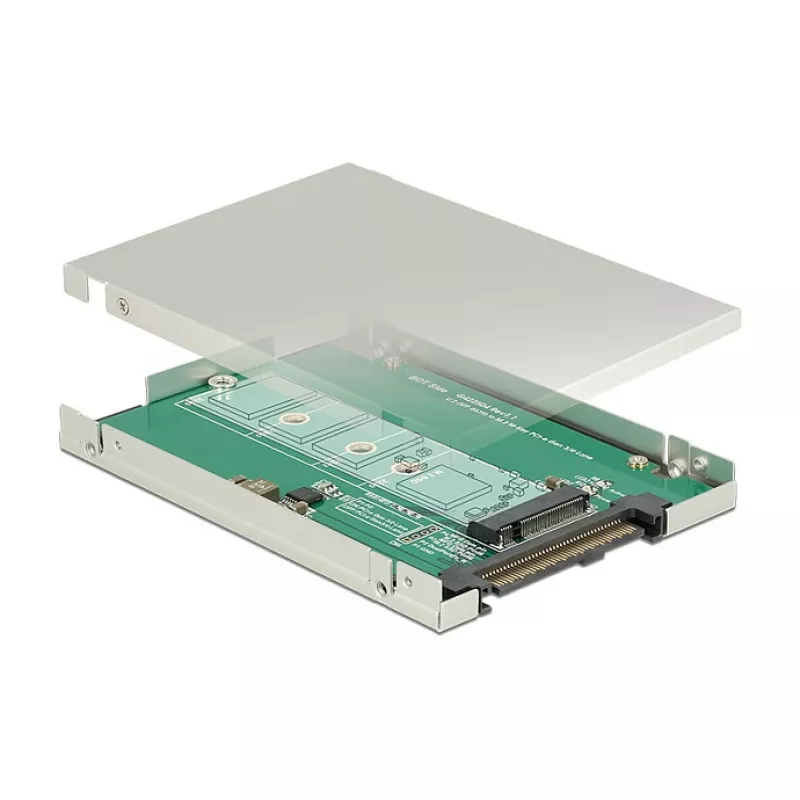

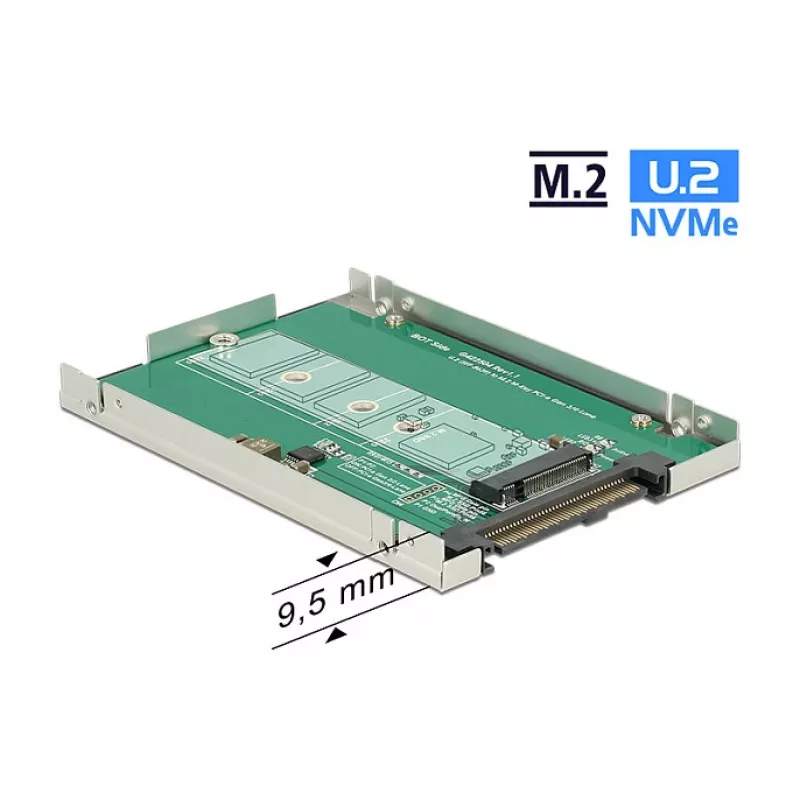

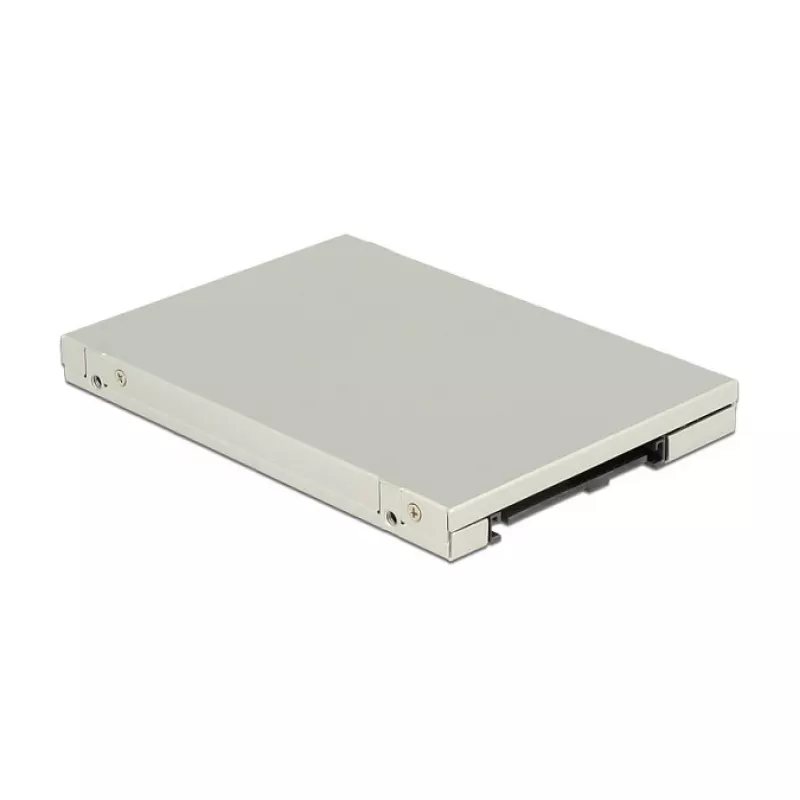

The DeLOCK 62710 Internal M.2 interface card provides an internal U.2 68‑pin host connection for installing an M.2 NGFF SSD in sizes 2280, 2260, 2242 or 2230. With compact dimensions of 100 × 65 × 7 mm and a typical power consumption of 13.2 W, the card is designed to be mounted inside a compatible system to add M.2 storage via a U.2 interface.

Advantages

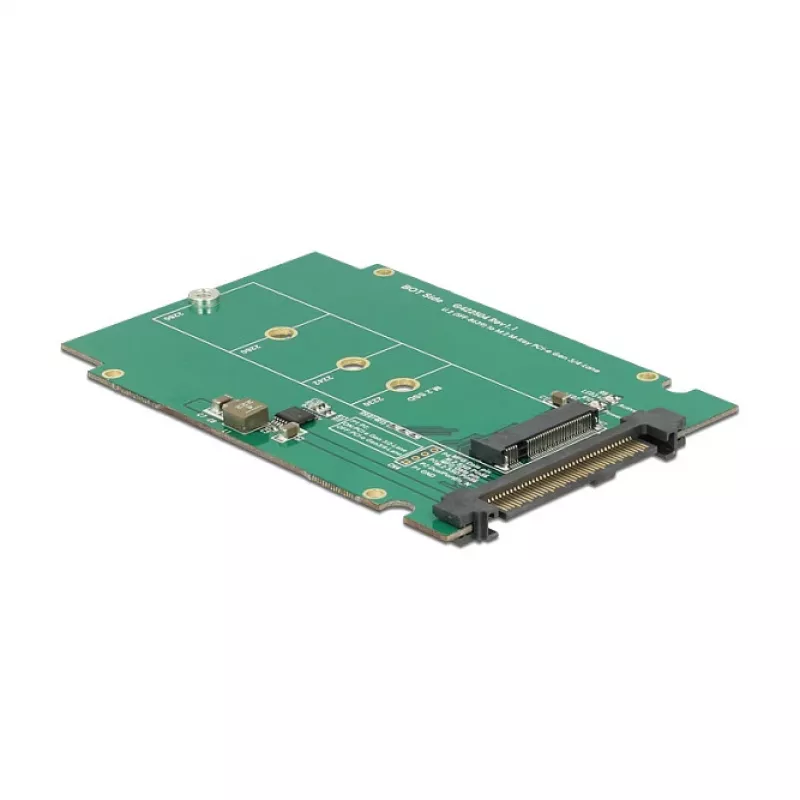

This interface card supports multiple M.2 form factors (2280/2260/2242/2230) and uses a standard U.2 68‑pin connection for internal installation. Its compact PCB layout saves space inside the chassis, and compatibility with common Windows versions helps simplify driver and system integration.

Suitable for

• Adding an M.2 NVMe or SATA SSD to a system with a U.2 host interface
• Upgrading internal storage capacity in desktops and workstations
• Systems requiring multiple M.2 form factor support (2280, 2260, 2242, 2230)

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 62710
• EAN: 4043619627103
• Interface: U.2 68‑pin host (internal)
• Supported M.2 sizes: 2280, 2260, 2242, 2230
• Dimensions: 100 × 65 × 7 mm
• Typical power consumption: 13.2 W
• Category: HDD and SSD disks accessories

How to use

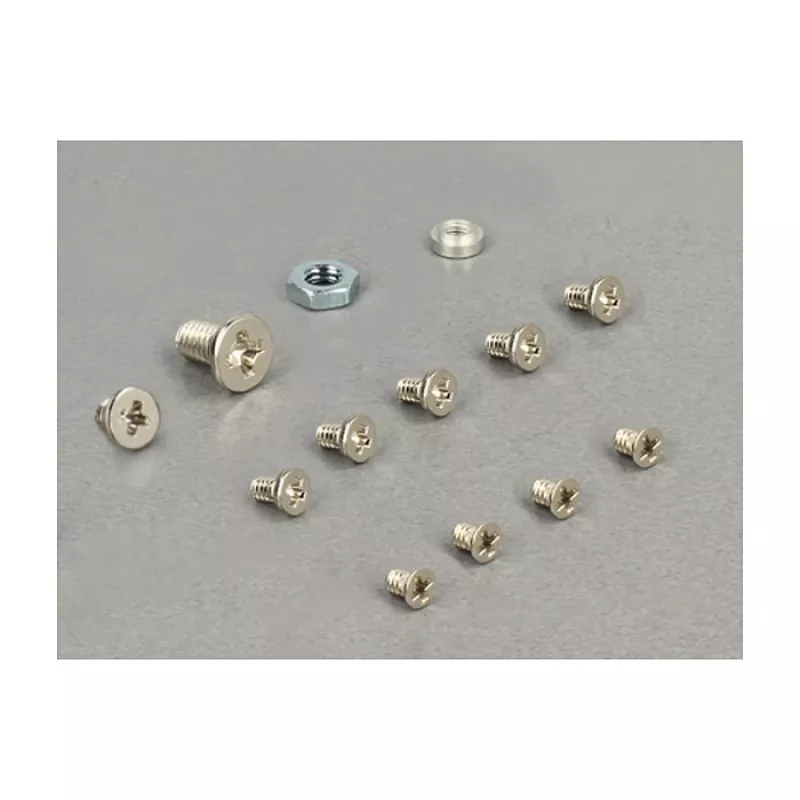

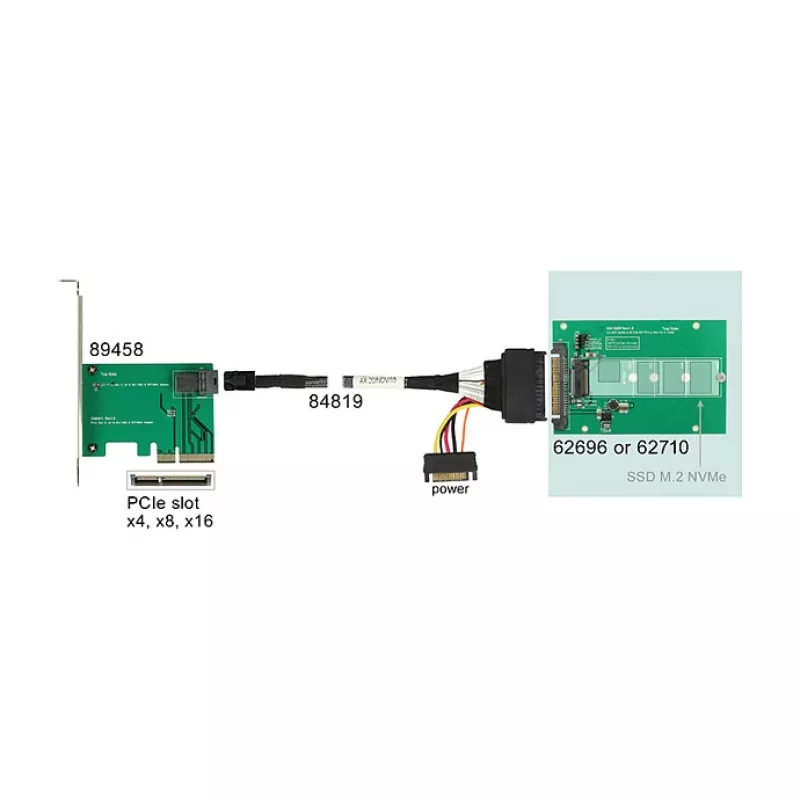

Install the DeLOCK 62710 card inside the PC chassis into a compatible U.2 host connector on the motherboard or controller. Secure the M.2 SSD of the appropriate size (2280/2260/2242/2230) onto the card according to the card’s mounting points and fasten with the supplied screw(s). Connect any required power and data cabling for the U.2 interface, then power on the system and configure the SSD in the operating system. Ensure the firmware and drivers for the host controller are up to date for full compatibility.

Recommendations

Before installation, verify that your system motherboard or controller supports an internal U.2 68‑pin connection and that the chosen M.2 SSD is compatible (NVMe or SATA according to your controller). Use appropriate anti‑static precautions and consult your system manual for mounting locations and BIOS/UEFI storage settings.
