Scheda di interfaccia DeLOCK 62859 interna M.2 mSATA

The DeLOCK 62859 interface card allows installation of an M.2 SSD (2280, 2260, 2242 or 2230) or an mSATA module (full or half size) into a system via a SATA host interface. The card is an internal expansion device with compact dimensions (70 × 100 × 7 mm) and a green circuit-board finish. If both the M.2 and mSATA slots are populated simultaneously, only the M.2 SSD is supported for operation.

Advantages

The DeLOCK 62859 provides flexible support for commonly used M.2 sizes and mSATA modules while using a standard SATA host connection. Its compact, low-profile design fits inside many desktop or embedded systems and enables additional storage options without requiring a dedicated PCIe slot. Clear compatibility with multiple Windows editions simplifies integration into existing setups.

Suitable for

• Adding an M.2 SSD (2280/2260/2242/2230) to a system with a free SATA connection
• Installing an mSATA module in systems that lack native mSATA sockets
• Upgrading storage in small form-factor or embedded systems where space is limited
• Systems that require a SATA-based internal storage adapter

Key specifications

• Host interface: SATA
• Output interfaces: M.2 (2280/2260/2242/2230), mSATA (full/half size)
• Internal form factor: yes
• Dimensions: 70 mm (W) × 100 mm (D) × 7 mm (H)
• Product colour: green
• Brand: DELOCK, MPN: 62859, EAN: 4043619628599

How to use

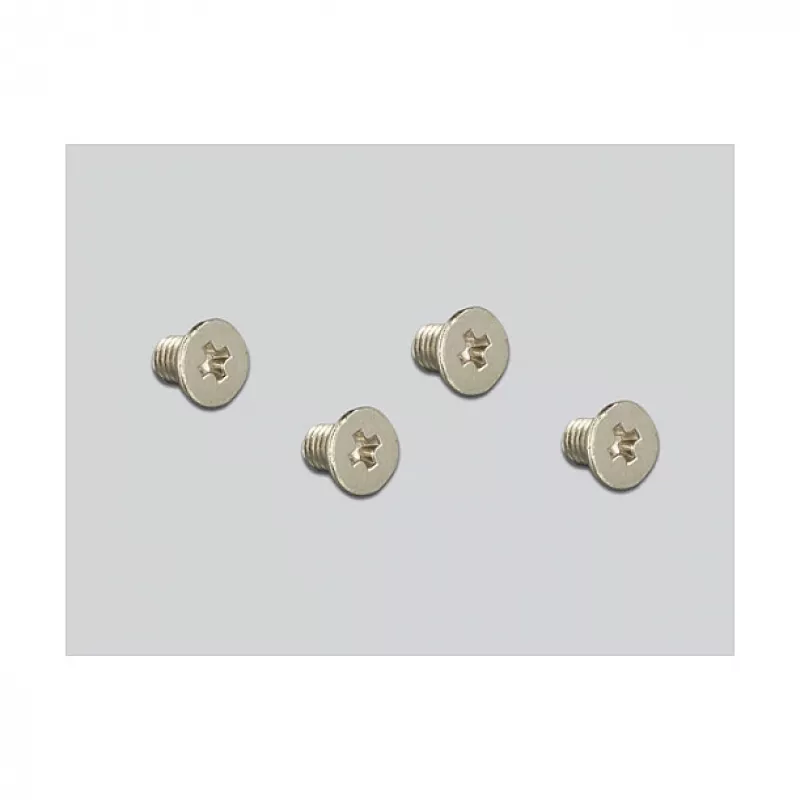

Mount the chosen storage module into the matching slot on the DeLOCK 62859: install an M.2 SSD in one of the supported M.2 positions (2280/2260/2242/2230) or an mSATA module in the mSATA slot. Secure the module with the appropriate screw or standoff according to the device mounting points. Connect the card to the host system using a SATA data and power connection as required by your chassis or motherboard. If both slots are populated, the system will only recognize and use the M.2 SSD.

Recommendations

Use a compatible SATA port and ensure the system BIOS or OS supports SATA-connected M.2/mSATA devices. Verify which slot will be active if you plan to install both module types simultaneously, and follow anti-static handling and mounting torque guidance from your system manufacturer when installing the card.
