Scheda di interfaccia DeLOCK 62863 interna PCIe

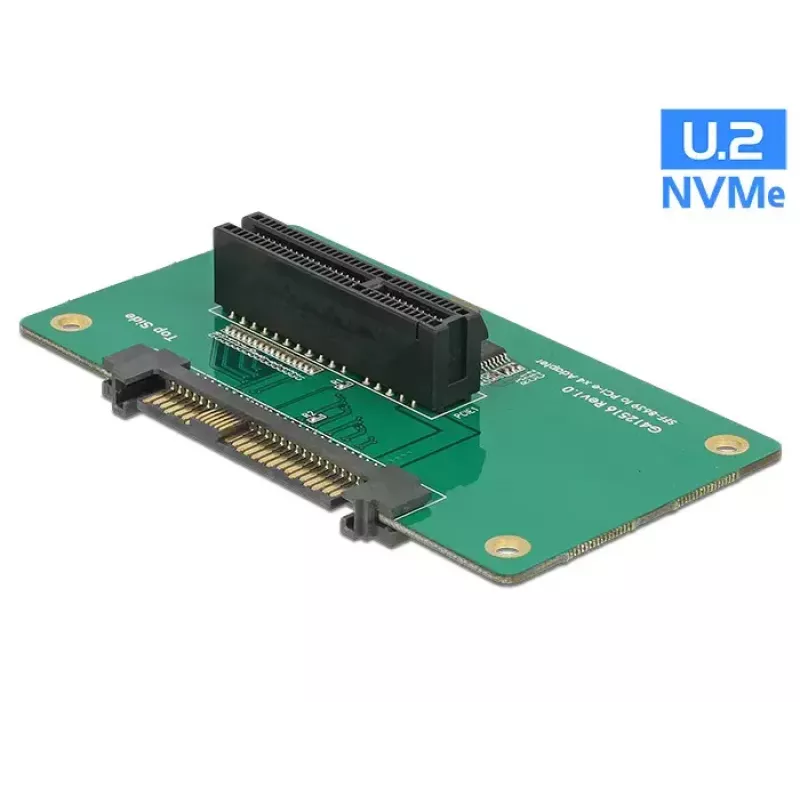

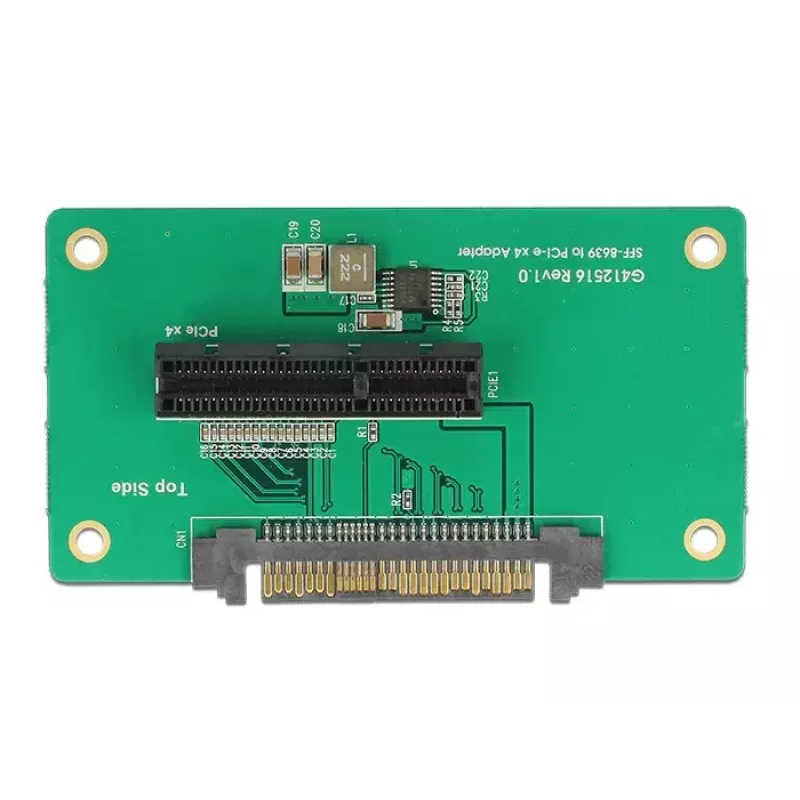

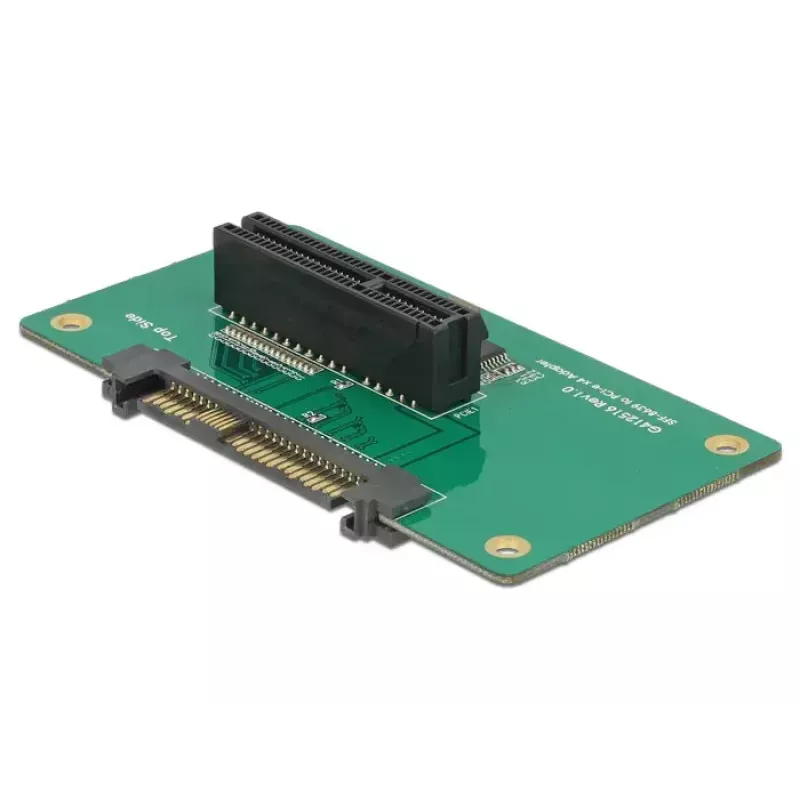

The DeLOCK 62863 is an internal interface card that connects to a system via a U.2 host interface and provides a PCI Express x4 NVMe slot. It implements the PCIe 3.0 standard for high-speed data transfer and is intended for installation inside desktop or server systems to expand internal PCIe connectivity. The card is finished in black and green and is supplied in box packaging.

Advantages

The adapter converts a U.2 host connection into a PCIe x4 NVMe slot, enabling the use of PCI Express cards with M.2 slots or other PCIe NVMe modules. Support for PCIe 3.0 ensures compatibility with a wide range of NVMe devices and offers reliable transfer speeds. Its compact internal design (45 × 85 × 15 mm) allows installation in systems with limited space.

Suitable for

• Adding an NVMe-capable PCIe card to a system with a U.2 host interface
• Expanding internal PCIe connectivity in desktops and servers
• Using PCIe cards that provide M.2 slots for M.2 PCIe modules

Key specifications

• Host interface: U.2
• Output interface: PCIe x4 (NVMe slot)
• PCIe standard: PCIe 3.0

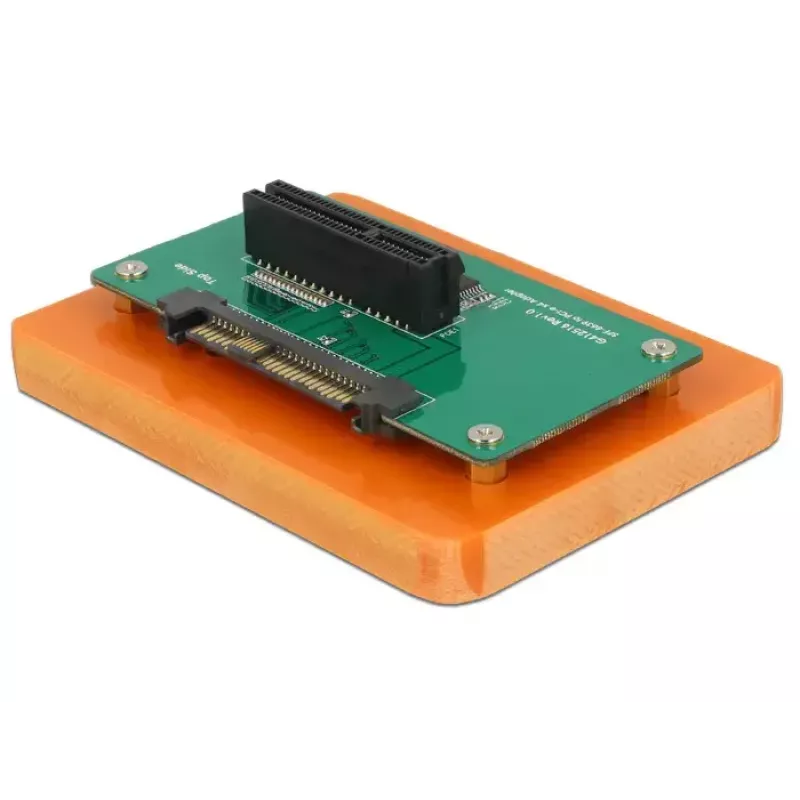

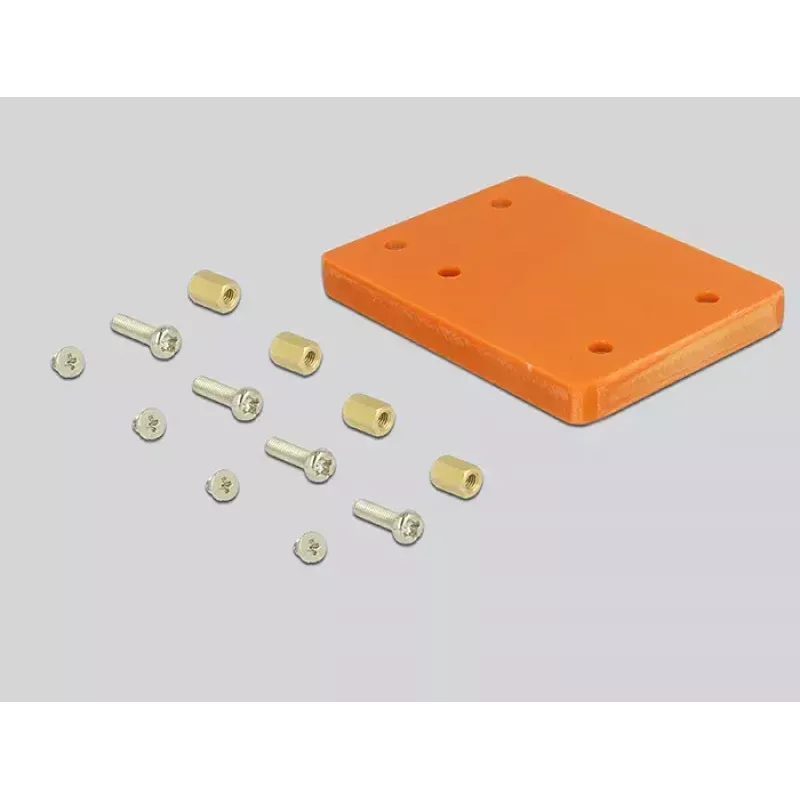

• Internal mounting: Yes
• Dimensions: 45 mm × 85 mm × 15 mm
• Product colour: Black, Green
• Packaging: Box

How to use

Install the DeLOCK 62863 inside the computer chassis and connect it to the system U.2 host connector. Insert a compatible PCIe card (for example a card with an M.2 slot for M.2 PCIe modules) into the provided PCIe x4 slot. Secure the card according to the system’s internal mounting procedures and power on the system to allow the operating system to detect the connected NVMe device.

Recommendations

Ensure the host system supports a U.2 interface and that the installed PCIe card is compatible with PCIe 3.0 and NVMe standards. Verify available internal space and proper airflow when installing the adapter and any NVMe modules to maintain thermal performance.
