Scheda di interfaccia DeLOCK 62866 interna M.2 mSATA

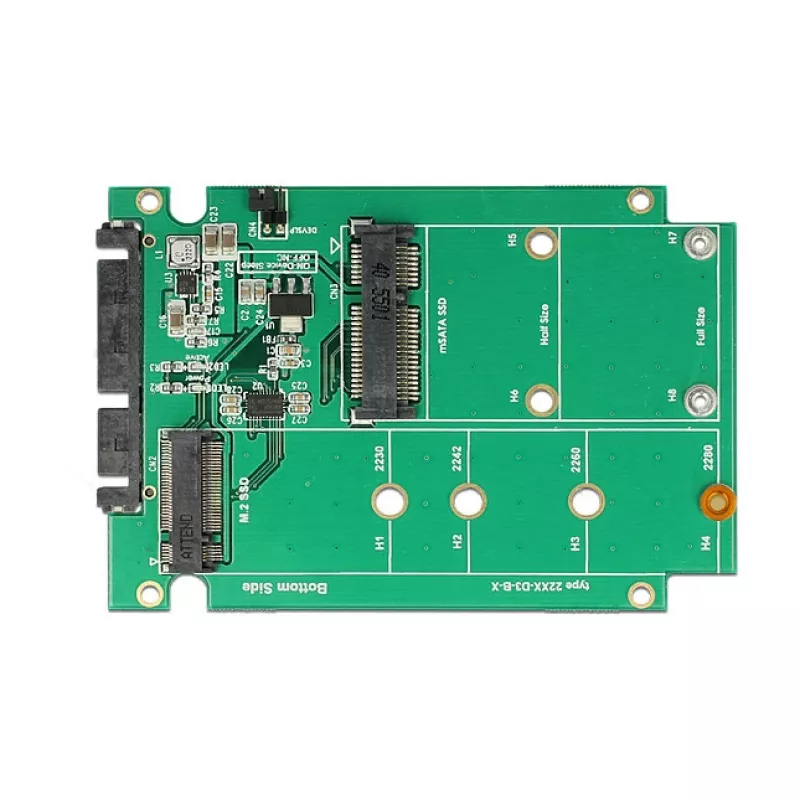

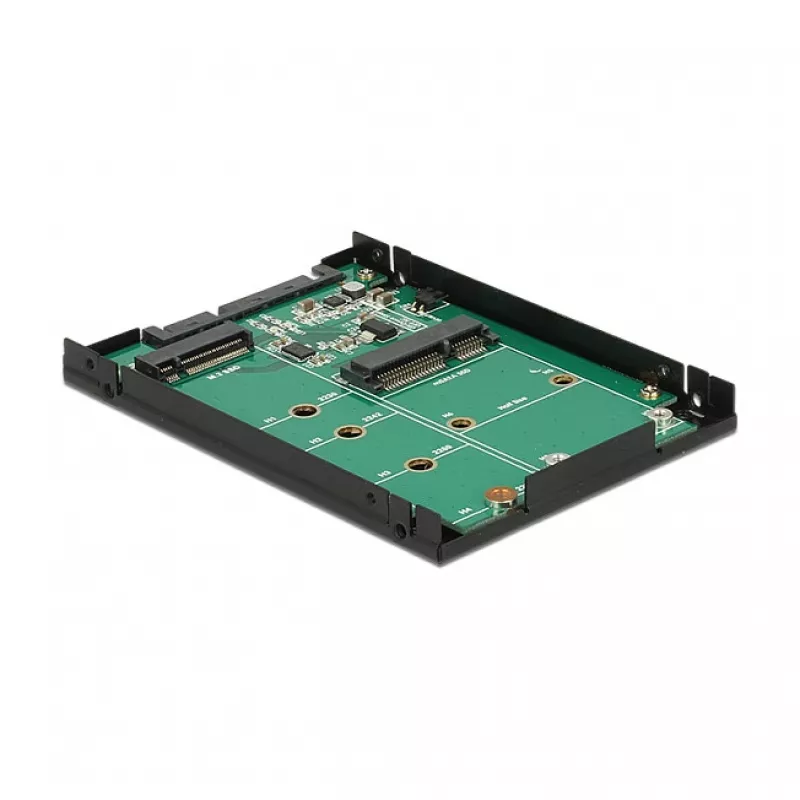

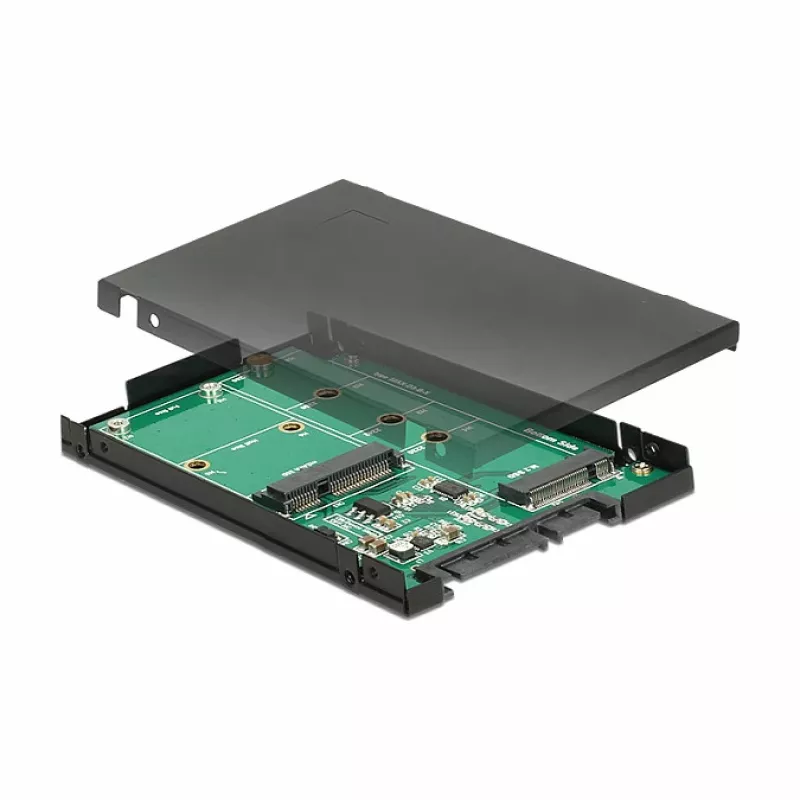

The DeLOCK 62866 interface card allows installation of an M.2 SATA SSD (2280, 2260, 2242, 2230) or an mSATA module (half‑size or full‑size) into a system via a SATA 22‑pin internal connection. The card provides a SATA host interface with a maximum data transfer rate of 6 Gbit/s and comes in black and green. If both M.2 and mSATA slots are populated simultaneously, only the M.2 SSD is usable.

Advantages

The card supports multiple M.2 form factors and mSATA modules on a single internal adapter, offers SATA III (6 Gbit/s) performance, and fits into standard internal SATA 22‑pin connections. Its compact PCB design and compatibility with Windows operating systems simplify integration into desktop systems where additional internal SSD connectivity is needed.

Suitable for

• Expanding internal storage with M.2 SATA SSDs (2280/2260/2242/2230)
• Using mSATA modules in systems with an available SATA 22‑pin internal port
• Upgrading older PCs to use modern SATA‑based SSDs

Key specifications

• Interface: SATA host via 22‑pin internal connector
• Supported drives: M.2 SATA SSD 2280/2260/2242/2230; mSATA half‑size and full‑size
• Maximum transfer rate: 6 Gbit/s (SATA III)

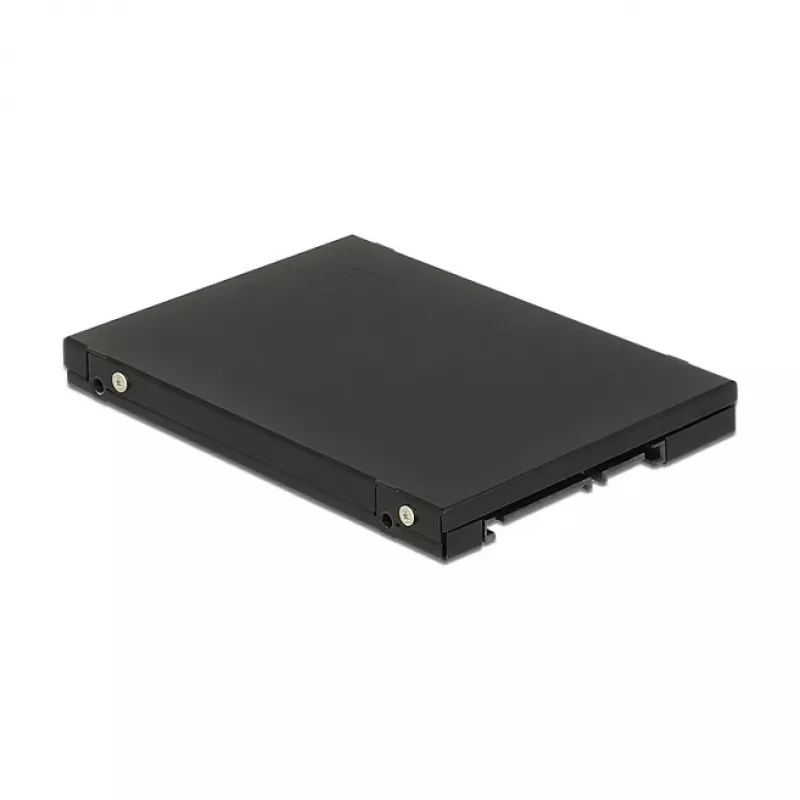

• Dimensions (W×D×H): 70 × 100 × 9.5 mm
• Colours: Black, Green
• Brand/Model: DELOCK 62866
• EAN: 4043619628667

How to use

Mount an M.2 SATA SSD or an mSATA module into the appropriate slot on the DeLOCK 62866 card and secure it according to the drive form factor. Connect the card to the host system using the internal SATA 22‑pin connector. If both M.2 and mSATA modules are installed, only the M.2 SSD will be active. After physical installation, power on the system and configure the drive in the BIOS/UEFI or operating system disk management tools as required.

Recommendations

Use the DeLOCK 62866 in systems with a free internal SATA 22‑pin connection and ensure the selected M.2 device is SATA (not NVMe). Verify drive compatibility with your motherboard and back up data before installing or changing storage devices.
