Scheda di interfaccia EXSYS EX-12006 USB 3.2 Gen 2 interna

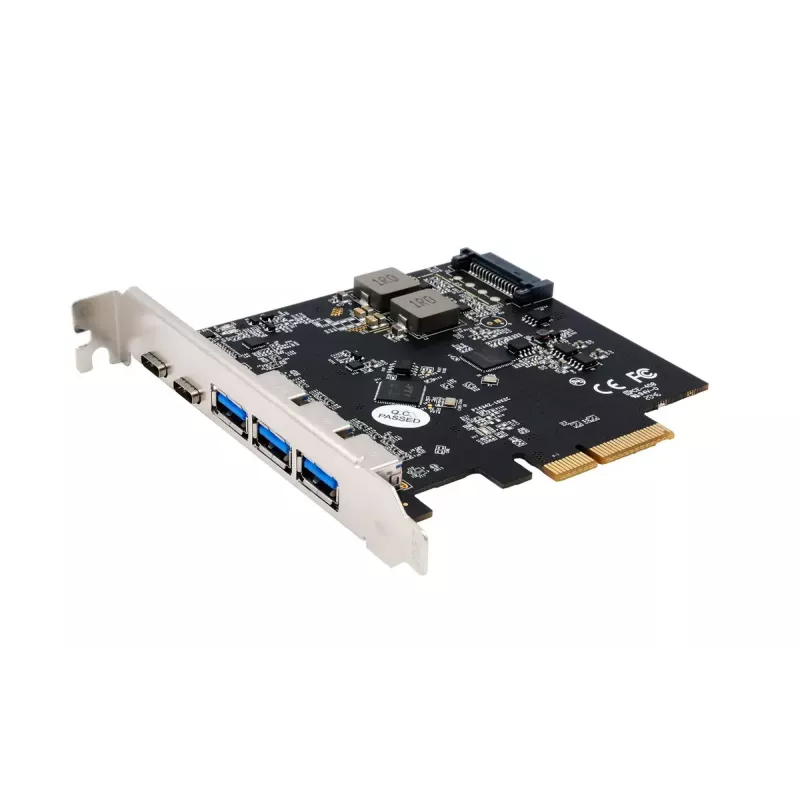

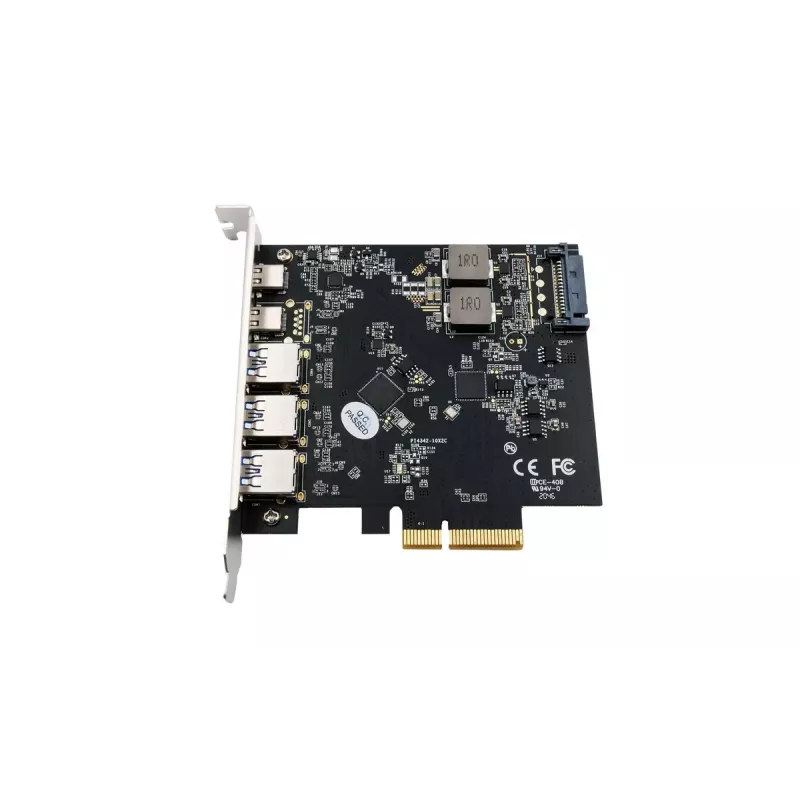

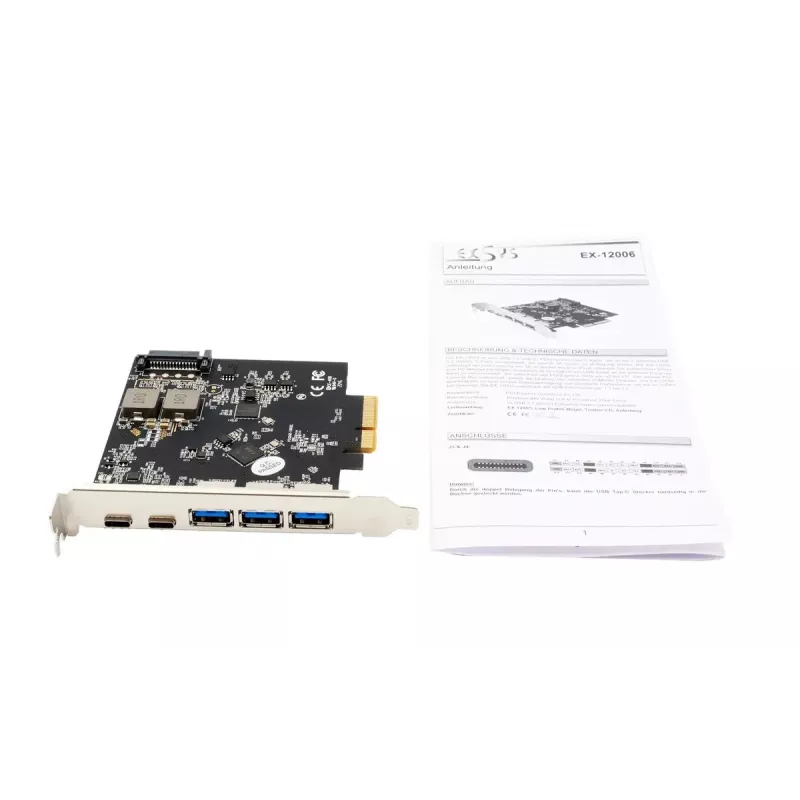

The EXSYS EX-12006 Internal USB 3.2 Gen 2 interface card installs into a PCIe slot (Gen3x4) and provides five external SuperSpeed+ USB 3.2 Gen2 ports—three Type-A and two Type-C. It is designed to add additional USB 1.1, 2.0, 3.0 and 3.2 Gen2 device connectivity to a workstation, desktop or server, supporting transfer rates from 1.5 Mbps up to 10 Gbps. Typical uses include connecting external storage enclosures, digital cameras, webcams and scanners.

Advantages

The card delivers up to 10 Gbps transfer speed on USB 3.2 Gen2 ports and maintains backward compatibility with USB 3.0, 2.0 and 1.1 devices. Its combination of three A-type and two C-type external sockets offers flexible connectivity for a variety of peripherals. The Type-C external port supports up to 3.0 A current for higher-power devices.

Suitable for

• Connecting external SSDs and HDD enclosures
• Attaching digital cameras and webcams
• Connecting scanners and other office peripherals
• Expanding USB ports on workstations, desktops and servers

Key specifications

• Interface: PCIe Gen3x4 internal card
• External ports: 5 × USB 3.2 Gen2 (3 × Type-A, 2 × Type-C)
• Supported USB standards: 1.1, 2.0, 3.0, 3.2 Gen2
• Data rates: 1.5 Mbps (Low-Speed), 12 Mbps (Full-Speed), 480 Mbps (High-Speed), 5 Gbps (SuperSpeed), 10 Gbps (SuperSpeed+)
• Type-C external port current: up to 3.0 A
• Brand: Exsys, MPN: EX-12006, EAN: 4718359120060

How to use

Power down the PC, open the case and insert the EXSYS EX-12006 into an available PCIe Gen3x4 slot. Secure the card, reconnect any required internal power if applicable, close the case and power on the system. Install any necessary drivers according to the operating system prompts. After installation, connect external USB devices to the Type-A or Type-C ports as needed.

Recommendations

For best performance, connect high-speed storage devices to the USB 3.2 Gen2 ports and ensure the motherboard PCIe slot provides Gen3x4 bandwidth. Use the Type-C port with cables and devices rated for USB 3.2 Gen2 and up to 3.0 A when higher current is required.
