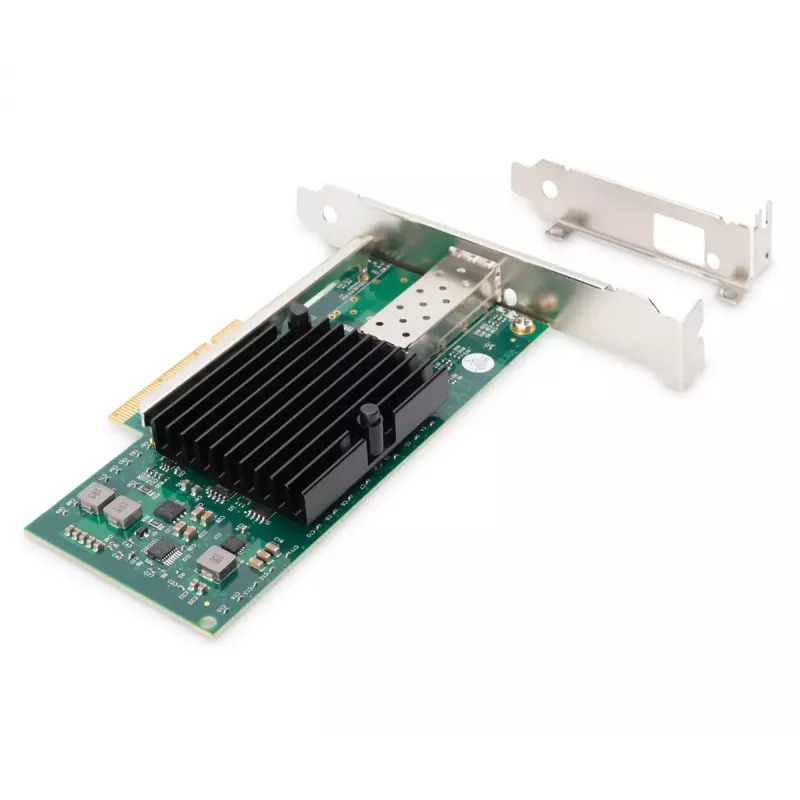

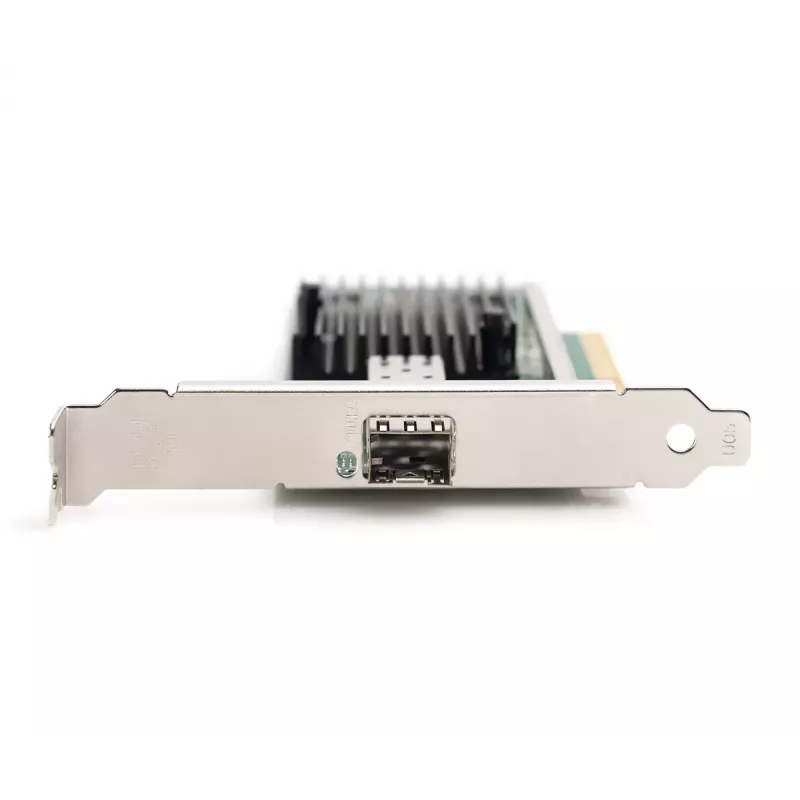

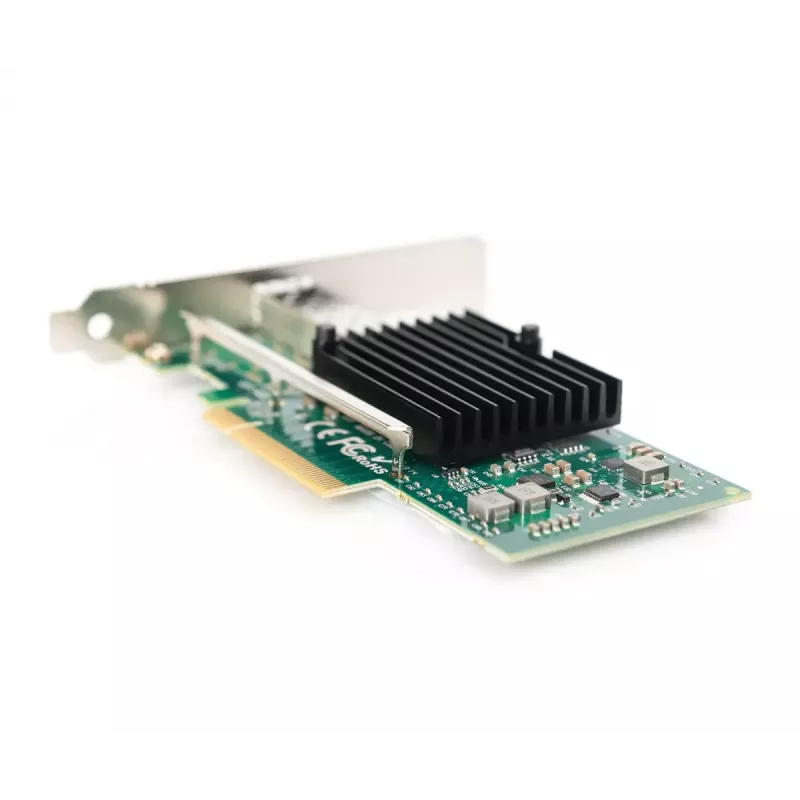

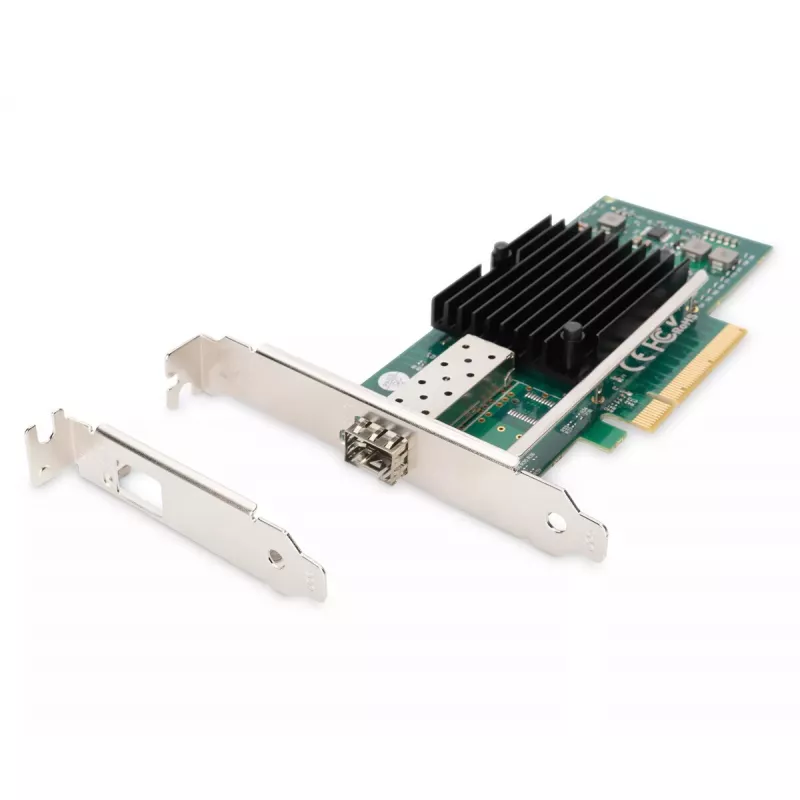

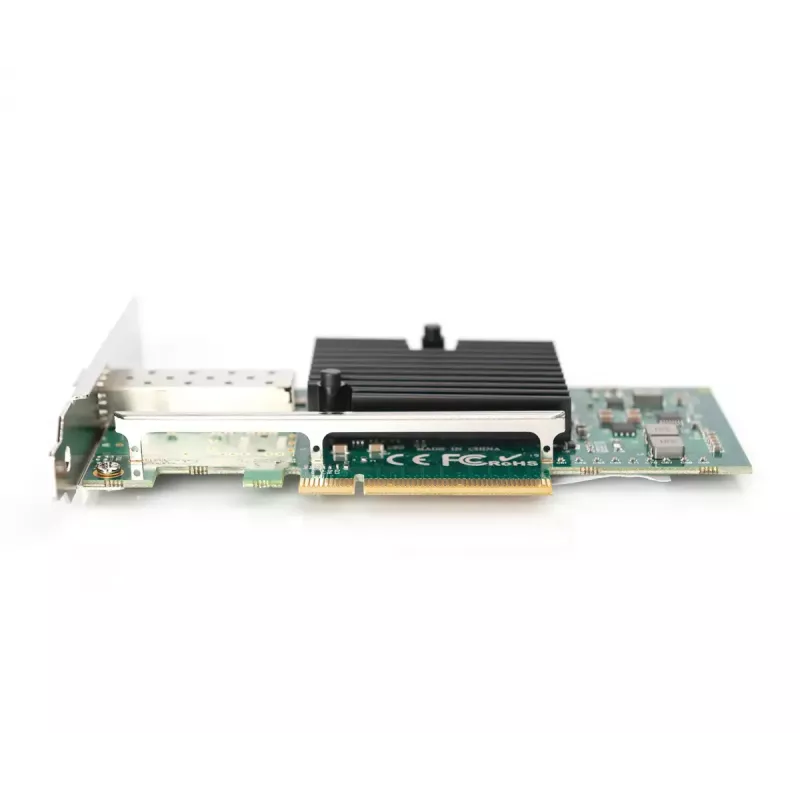

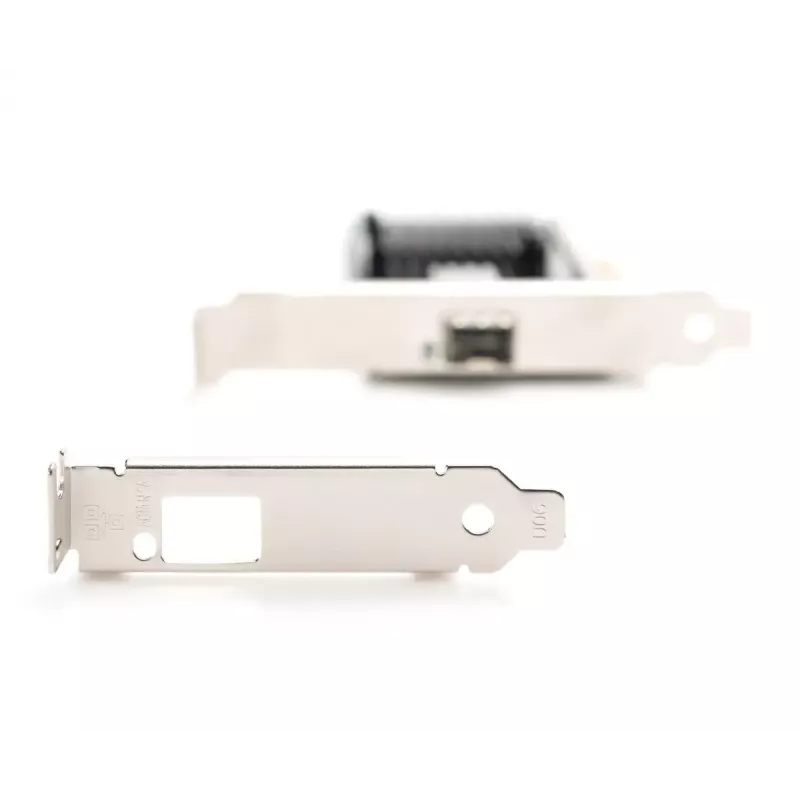

Scheda di rete Digitus Single Port 10G SFP PCIe

Connect your workstation directly to a 10G fiber-optic network with the Digitus Single Port 10G SFP PCIe network card. This single-port card uses a PCI Express x8/x16 slot and accepts SFP+ transceivers of your choice. Based on an Intel chipset, it supports fiber connections and offers standard networking features for high-speed wired environments.

Advantages

The card supports 10 Gbit/s throughput and is compatible with user-selected SFP+ transceivers, allowing flexible media choices. It fits into x8 and x16 PCIe slots and supports IEEE 802.1Q VLAN tagging. Hardware offloading features include IP, TCP and UDP checksum offload for both IPv4 and IPv6, and it can handle jumbo frames up to 15.5K.

Suitable for

• Workstations requiring 10 Gbit/s fiber connectivity
• Server or desktop upgrades with available PCIe x8/x16 slots
• Virtualized environments and VLAN-segmented networks

Key specifications

• Brand: DIGITUS
• Model: DN-10161
• Interface: PCI Express (x8/x16 compatible)
• Port: Single SFP+ (use compatible SFP+ transceiver)
• Maximum data rate: 10000 Mbit/s (10 Gbit/s)
• Supported standards: IEEE 802.1Q VLAN tagging
• Features: IP/TCP/UDP checksum offload (IPv4, IPv6), jumbo frames up to 15.5K
• Connectivity technology: Wired, Fiber
• EAN: 4016032445180

How to use

Install the network card into an available PCI Express x8 or x16 slot on your workstation or server. Insert a compatible SFP+ transceiver into the card’s SFP+ port and connect the appropriate fiber cable. Install or verify the correct driver for the Intel-based chipset on your operating system, then configure network settings including VLANs and offload options as needed.

Recommendations

Use certified SFP+ transceivers and matching fiber cabling for guaranteed link stability. Ensure your system BIOS and OS drivers are up to date before deployment, and verify PCIe slot bandwidth (x8 or x16) for optimal performance.
