Scheda di rete InLine 51125R Ethernet 1000 Mbit/s PCI Express

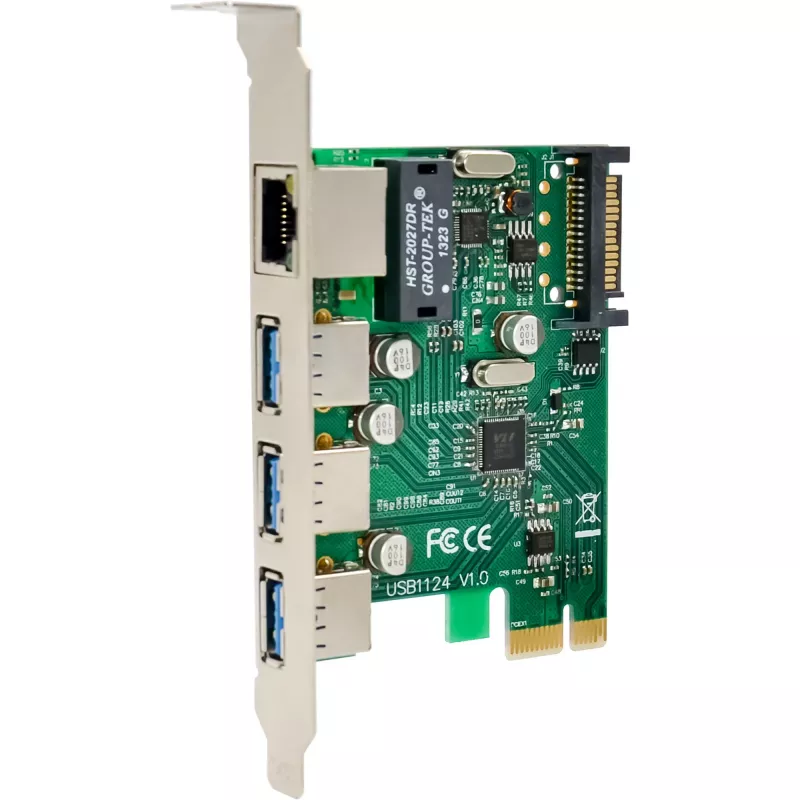

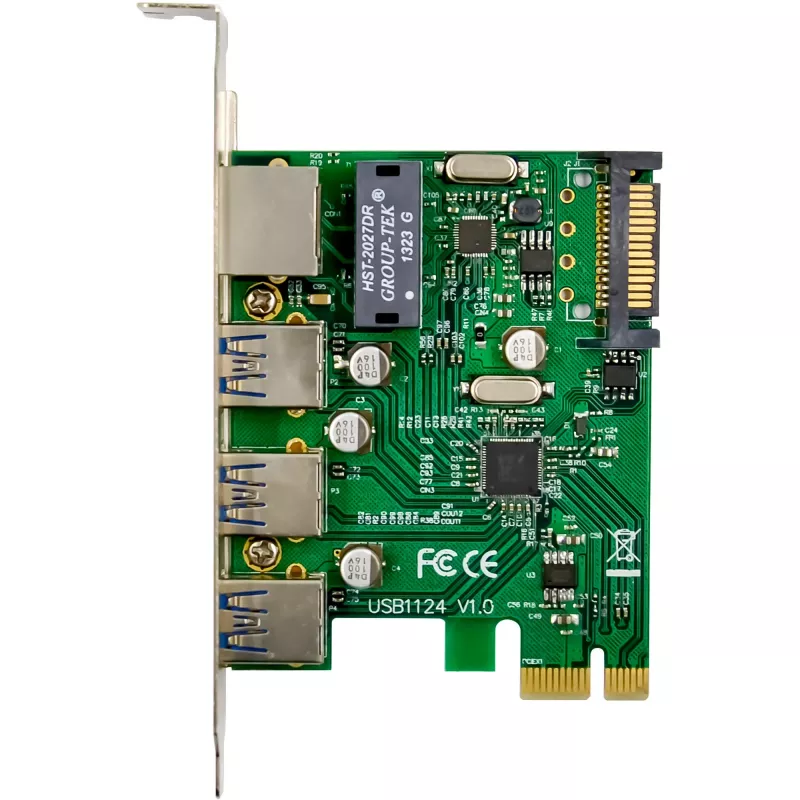

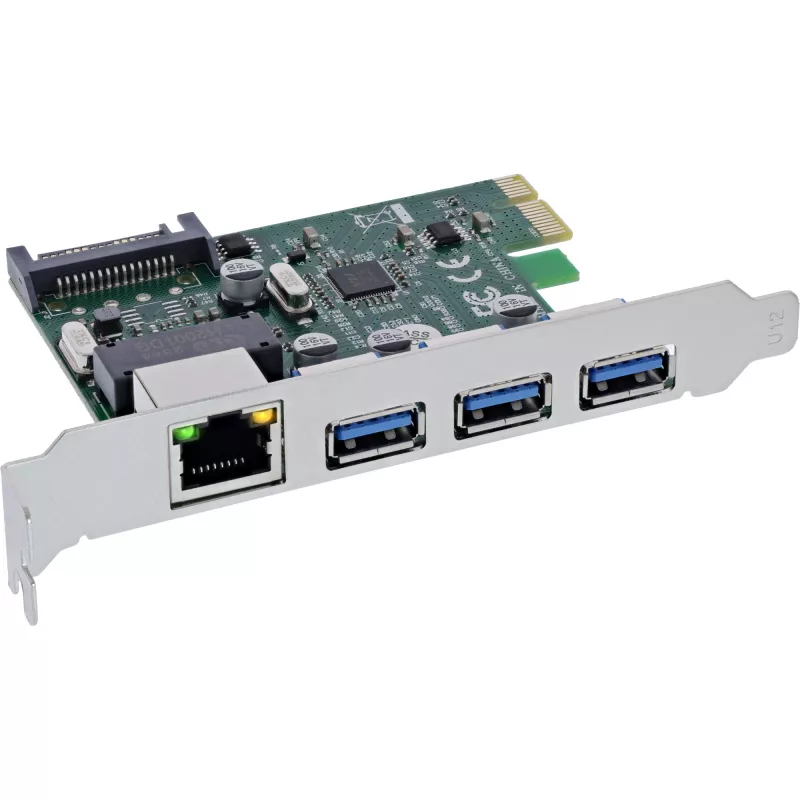

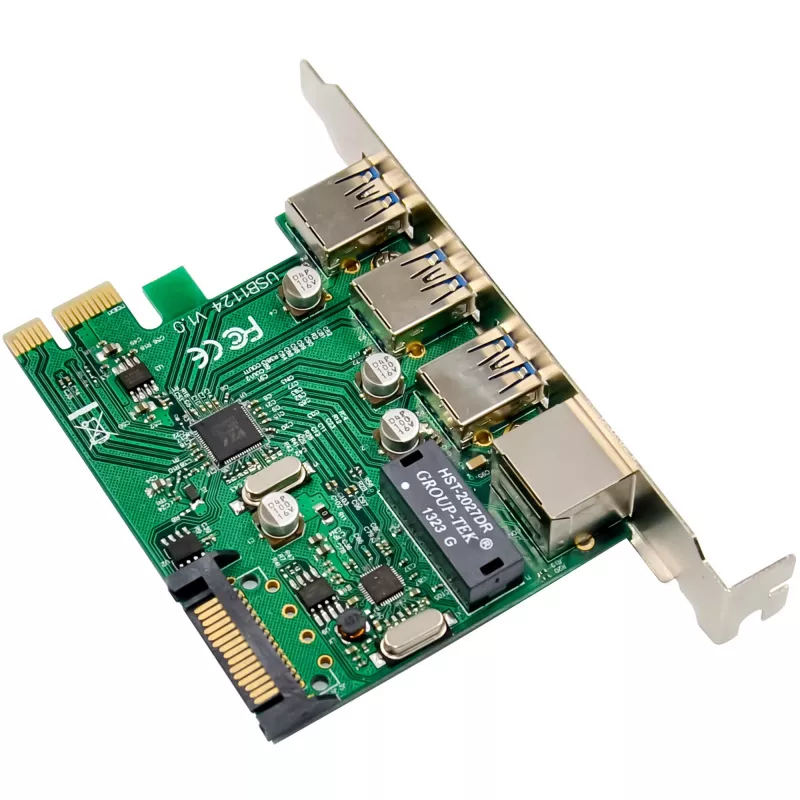

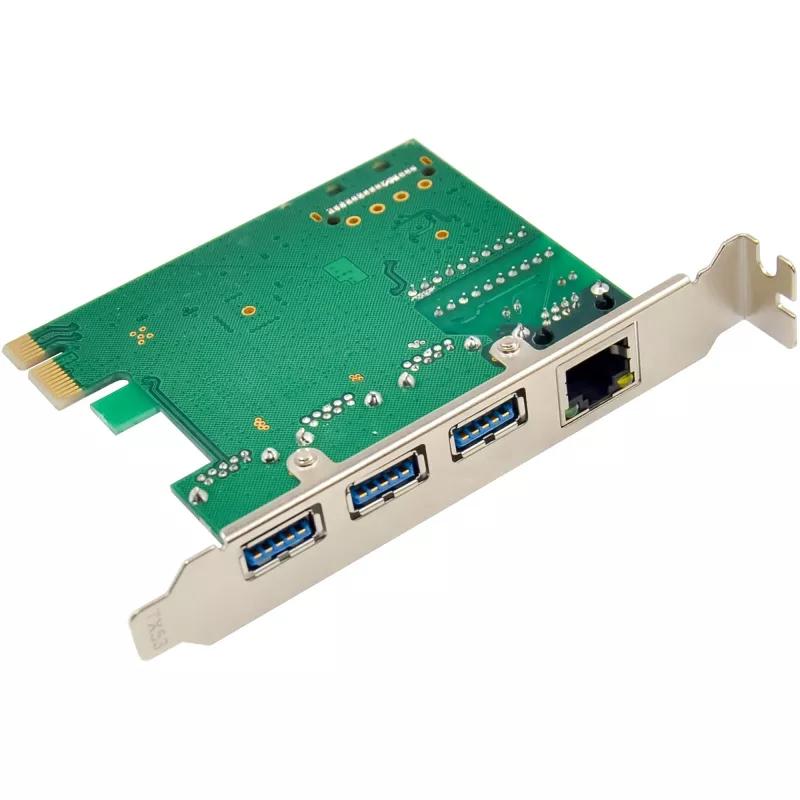

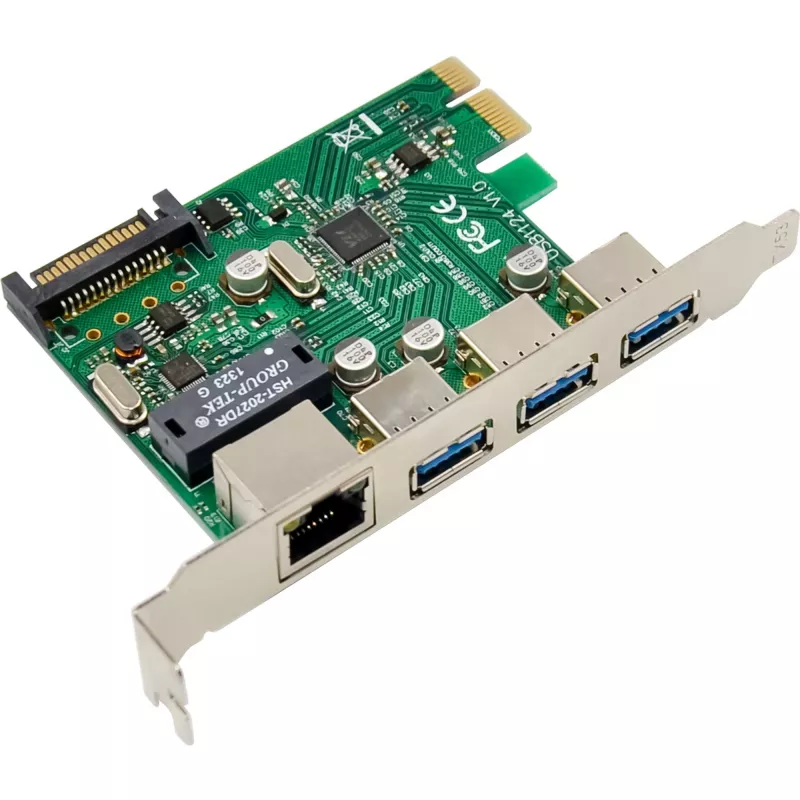

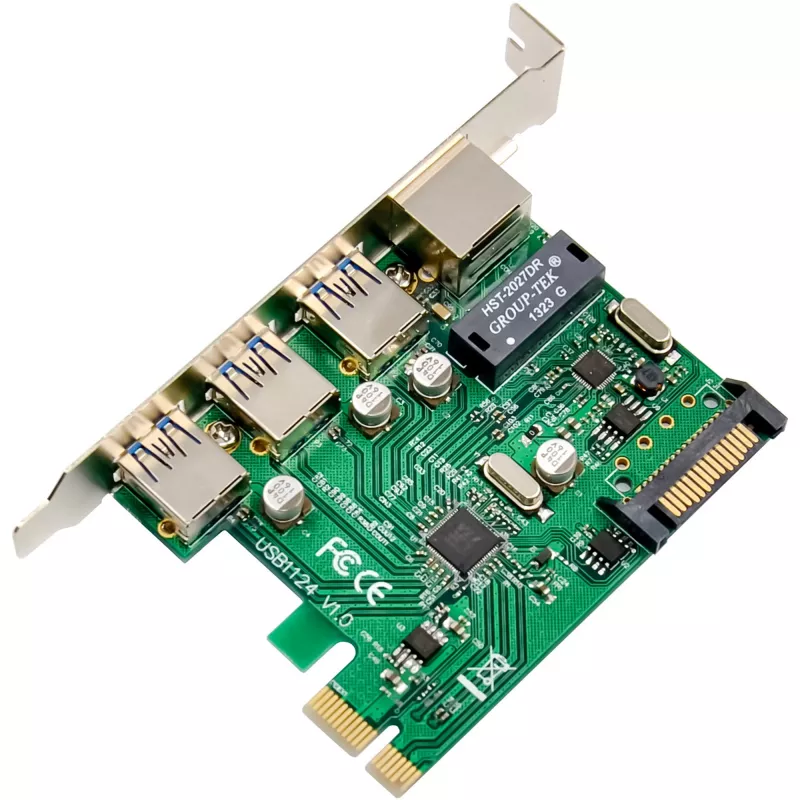

The InLine 51125R is a combination network and USB expansion card for PCI Express. It provides one RJ45 Gigabit Ethernet port and three USB 3.2 Gen.1 ports, and includes a 15-pin power connector for additional power supply to the USB ports.

Key features

• Combined network and USB extension
• 1x RJ45 Gigabit Ethernet with auto-negotiation
• 3x USB 3.2 Gen.1 ports with up to 5 Gb/s data rate
• PCIe x1 interface
• Supports Wake-on-LAN, Jumbo Frames & modern network protocols
• Plug & Play and hot-pluggable

Specifications

• Bus type: PCIe v2.1 (5.0 GT/s) 1-lane
• Ports: 1 x RJ45 (Gigabit LAN), 3 x USB 3.2 Gen.1 (USB-A, 5 Gb/s)
• Data rate RJ45: 10/100/1000 Mb/s (Gigabit Ethernet)
• Supported speeds: 10/100 Mb/s in half-duplex mode; 10/100/1000 Mb/s in full-duplex mode
• Data rate USB-A: 5 Gb/s
• Power supply: 15-pin power connector for additional power supply of the USB ports
• Chip set: VIA VL805 (USB), Realtek RTL8153 (LAN)
• Supported protocols: IPv4, IPv6
• Dimensions: 75 mm x 80 mm (PCIe board)
• Supported IEEE standards: IEEE 802.3, 802.3u, 802.3az (Ethernet standards); IEEE 802.3x (flow control)
• Maximum power: 5 V / 900 mA per port
• Features: Auto-negotiation (10/100/1000 Mb/s); Wake-on-LAN (WOL) & remote wakeup; Support for jumbo frames (up to 9K); UDP/TCP & IP checksum offloading; Virtual Machine Device Queues (VMDq, up to 8 VMs); Interrupt throttling control
• Operating system support: Windows 11, 10, 8, 7; Windows Server 2008 R2, 2016, 2019, 2021; Linux from kernel version 2.6.30
• Operating temperature: 0 °C to 55 °C
• Storage temperature: -40 °C to 70 °C
• Maximum humidity: 90 %
• Scope of delivery: 1x InLine combo card Gigabit network, 1x driver CD, 1x operating instructions (German/English)
• Manufacturer No.: 51125R
• EAN Barcode: 4043718341467
• Connections external: 1x RJ45 socket + 3x USB-A
• Connections internal: None
• Low Profile: No
• Country of origin: Taiwan
