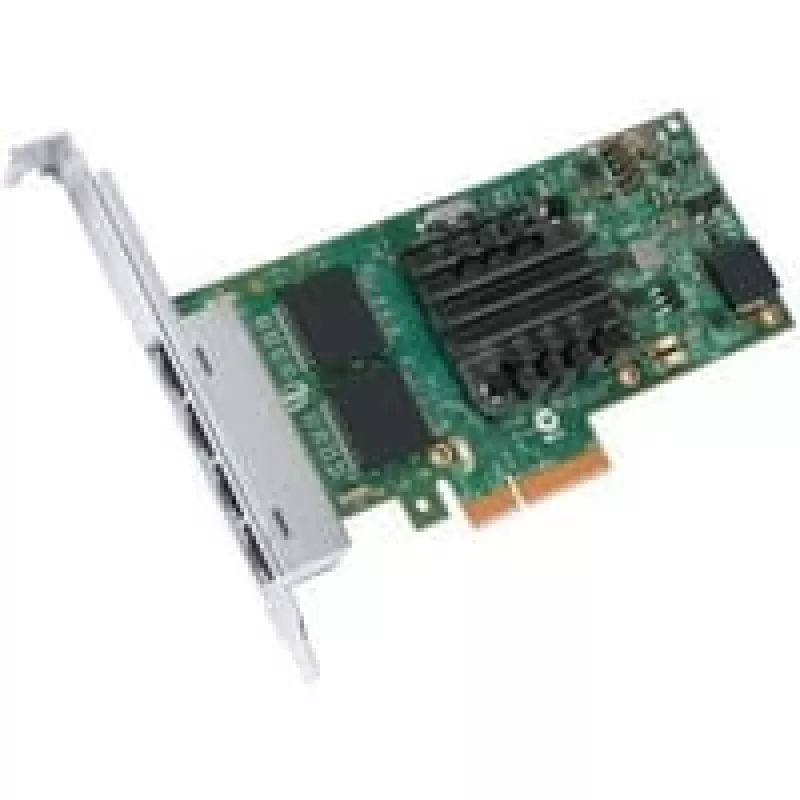

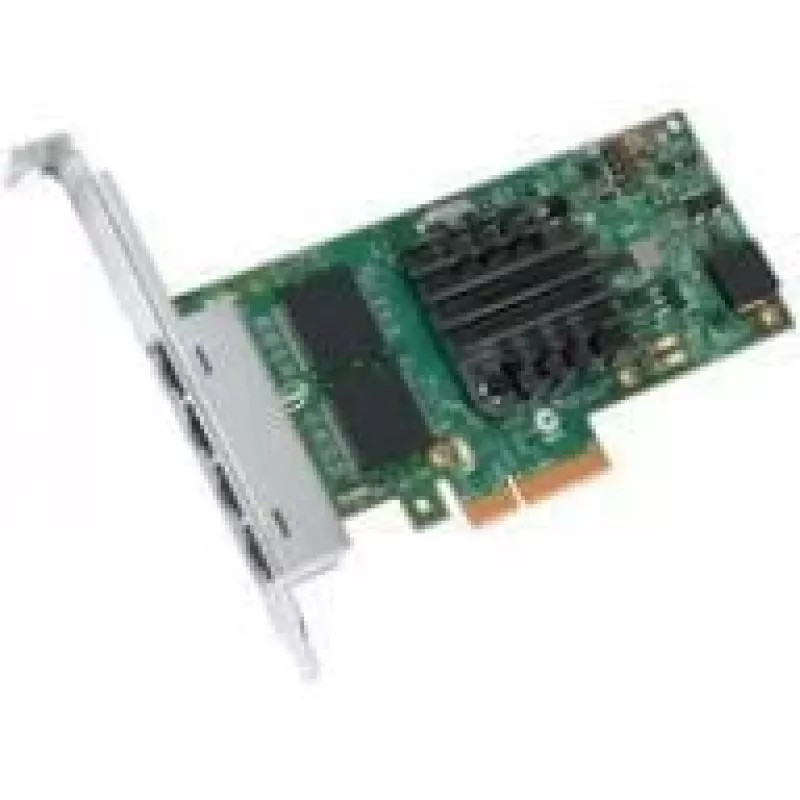

Scheda di rete Intel I350T4V2BLK 1000 Mbit/s PCI Express Ethernet

The Intel I350T4V2BLK is a PCI Express network card offering reliable wired Ethernet connectivity with up to 1000 Mbit/s throughput. Designed for servers and workstations, it supports industry networking standards and technologies that improve performance, virtualization support, and power efficiency.

Advantages

This network card supports iWARP/RDMA for low-latency data transfer via kernel bypass and direct data placement, PCI-SIG SR-IOV for efficient device sharing between virtual machines, and Flexible Port Partitioning (FPP) and Virtual Machine Device Queues (VMDq) to optimize virtualization and Quality of Service. Intel Ethernet Power Management features reduce idle power and adjust capacity according to demand to improve energy efficiency.

Suitable for

• Servers requiring stable 1 Gbit/s wired Ethernet connections
• Virtualized environments using SR-IOV or VMDq
• Data center workloads needing low-latency RDMA over Ethernet
• Workstations and appliances where power efficiency is important

Key specifications

• Brand: INTEL
• Model: I350T4V2BLK-C (MPN)
• EAN: 4260610450602
• Interface: PCI Express
• Connectivity technology: Wired Ethernet
• Maximum data transfer rate: 1000 Mbit/s
• Supported standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.1Q, 802.3x, 802.1as

How to use

Install the card into an available PCI Express slot on a compatible server or workstation motherboard. Ensure the operating system has appropriate Intel drivers installed to enable features such as iWARP/RDMA, SR-IOV, FPP and VMDq. Connect to a Gigabit Ethernet switch using standard Ethernet cabling to achieve up to 1000 Mbit/s throughput. Configure virtualization settings in the hypervisor if using SR-IOV or VMDq.

Recommendations

For best results in virtualized and low-latency scenarios, use up-to-date Intel drivers and firmware and enable SR-IOV or VMDq in the host hypervisor. In data center deployments that require RDMA, verify switch and network fabric compatibility with iWARP. To maximize energy efficiency, rely on Intel Ethernet Power Management features and configure power policies according to workload demands.
