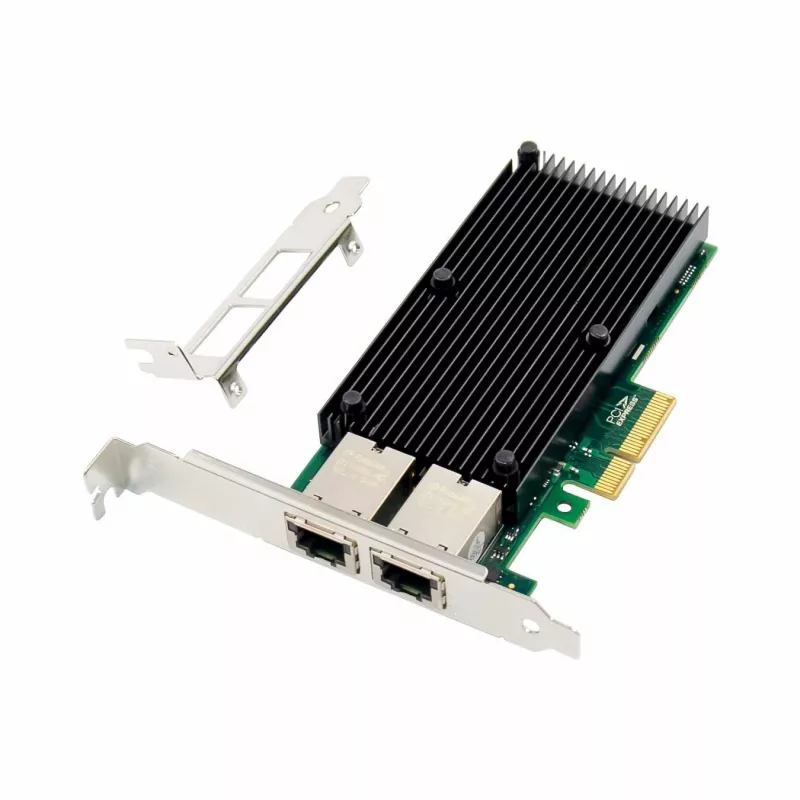

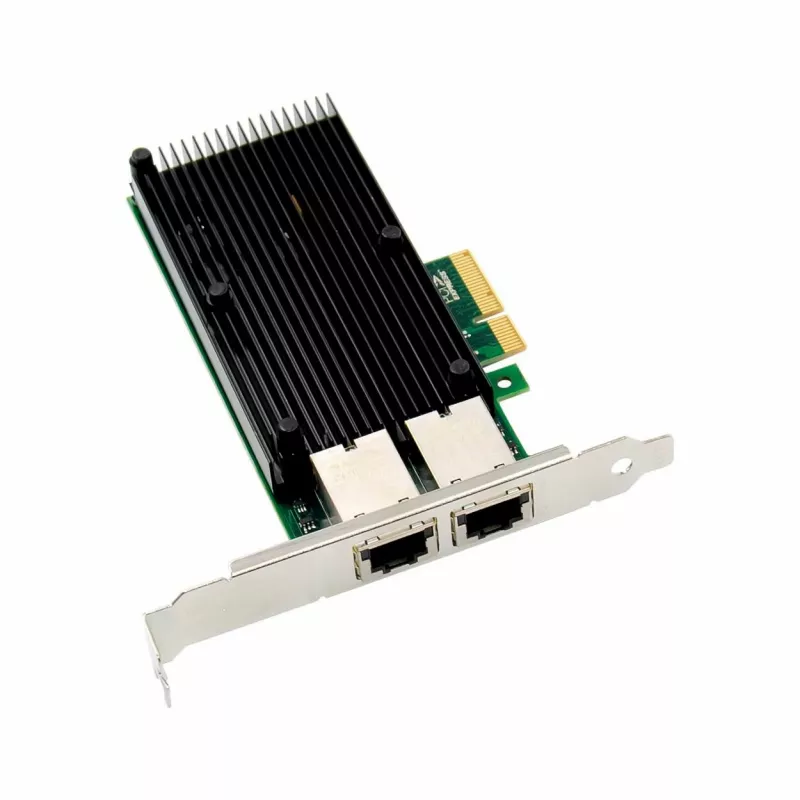

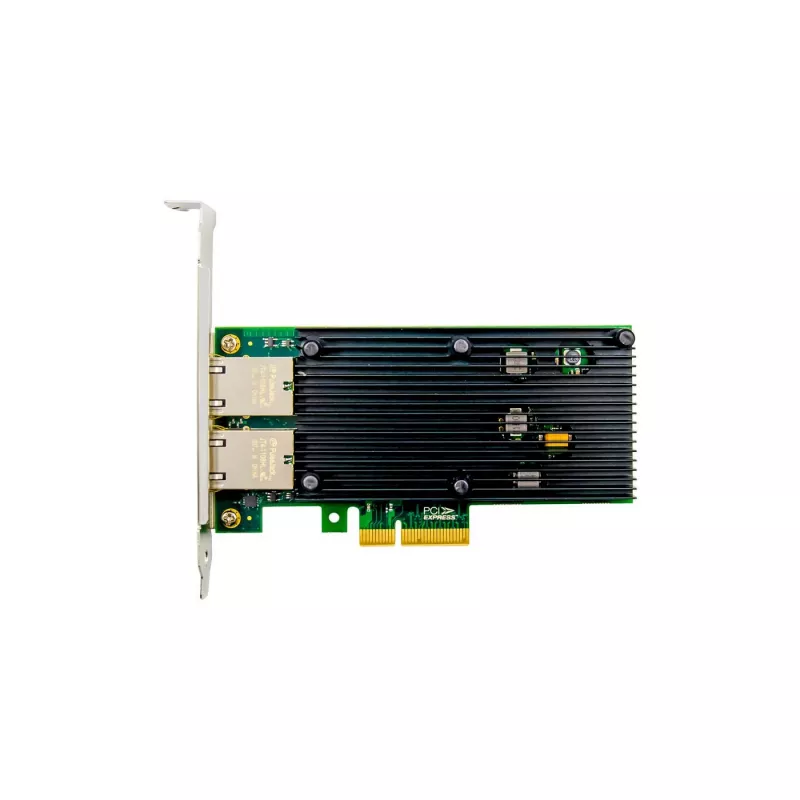

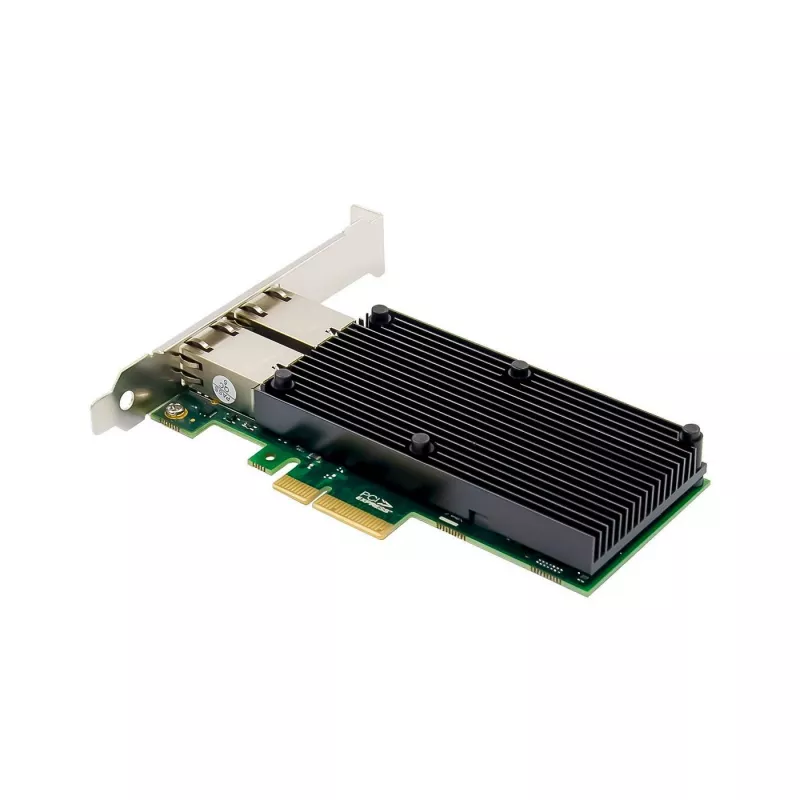

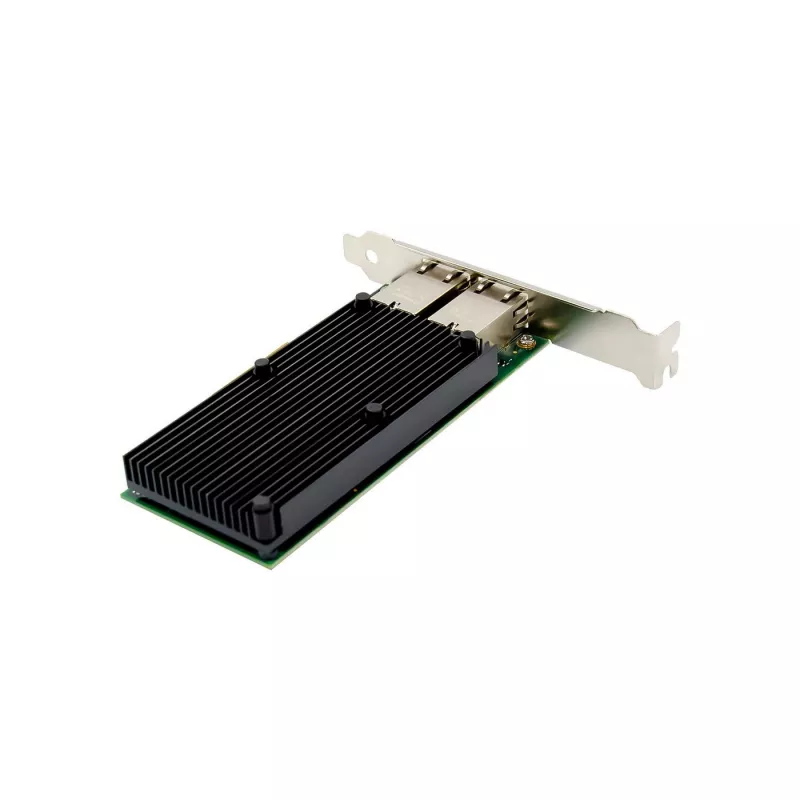

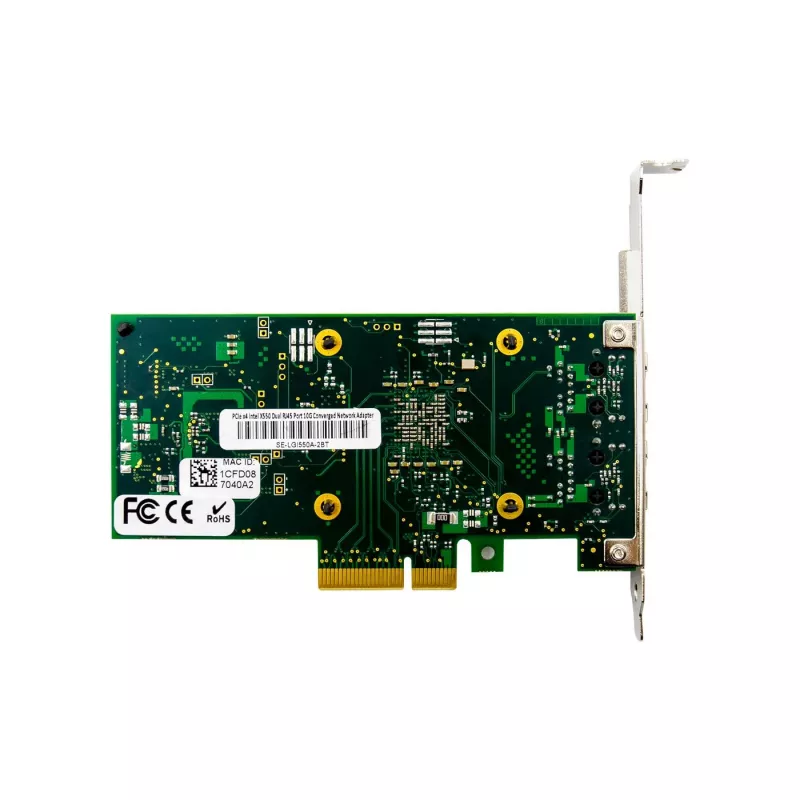

Scheda di rete MicroConnect X550-T2 PCIe x4 dual port 10GbE

The MicroConnect X550-T2 PCIe x4 Dual Port 10GbE is a network interface card designed to provide two 10 Gigabit Ethernet RJ45 connections for desktop or server systems. It installs in a PCIe x4 or larger slot and delivers high-throughput, low-latency wired connectivity suitable for virtualization hosts, storage servers, workstations, and high-bandwidth data transfers. The card supports standard copper Ethernet cabling and is intended for environments that require increased LAN bandwidth and reliable 10GbE links.

Advantages

The dual-port design allows simultaneous use of two independent 10GbE links for link aggregation, redundancy, or separate network segments. By using a PCIe x4 interface the card provides efficient data transfer to the host with a compact slot footprint. Compatibility with standard RJ45 copper networks removes the need for fiber optics in many installations, enabling cost-effective high-speed upgrades. The card is suitable for mixed hardware environments and supports common operating systems and drivers for straightforward integration.

Suitable for

• Upgrading desktop or server systems to 10 Gigabit Ethernet
• Virtualization hosts and hyperconverged nodes requiring high I/O
• NAS and storage servers for faster file transfers and backups
• Network aggregation, link redundancy, and server clustering
• High-bandwidth workstations for media editing, CAD, and data analysis

Key specifications

• Interface: PCI Express x4 (backward compatible with x8/x16 slots)
• Network ports: 2 × 10 Gigabit Ethernet RJ45
• Link speeds: 10 Gbps per port, auto-negotiation with supported speeds
• Connector type: Standard copper RJ45 for Cat6a/Cat7 copper cabling
• Supported features: Link aggregation, VLAN tagging, checksum offload, jumbo frames
• Form factor: Low-profile bracket compatible with standard and low-profile chassis
• Power consumption: Typical for dual 10GbE copper NICs (depends on workload)

How to use

Install the MicroConnect X550-T2 into an available PCIe x4 or larger slot on a powered-off system, secure the bracket, and connect standard Cat6a/Cat7 cables to the RJ45 ports. After powering on, install the appropriate drivers for your operating system or allow the OS to load native drivers if available. Configure network settings through the operating system or management software, set up link aggregation or VLANs if required, and verify connectivity and link speed using system network tools.

Recommendations

For stable 10 Gbps performance use Cat6a or better copper cabling and keep cable runs within recommended lengths. When deploying in servers with multiple high-speed devices, ensure adequate airflow and power headroom. Apply vendor-recommended drivers and firmware updates for best compatibility and performance in virtualization or storage environments.
