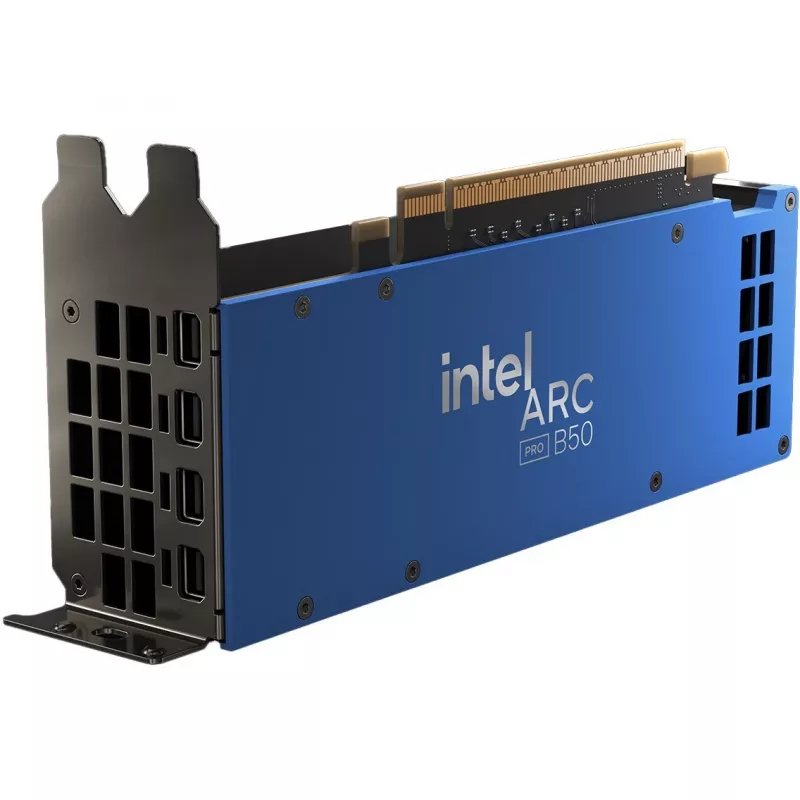

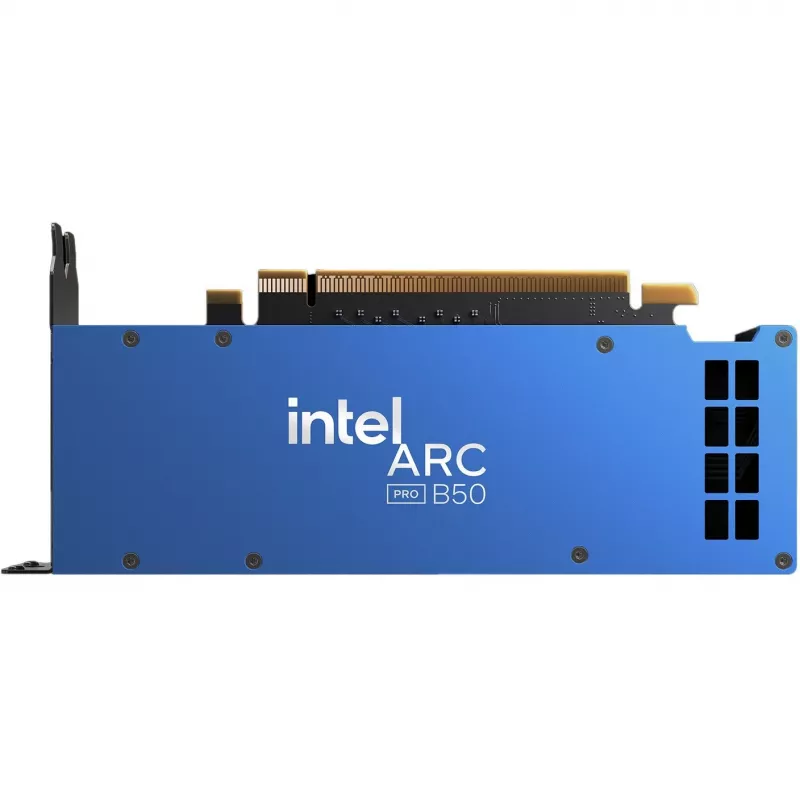

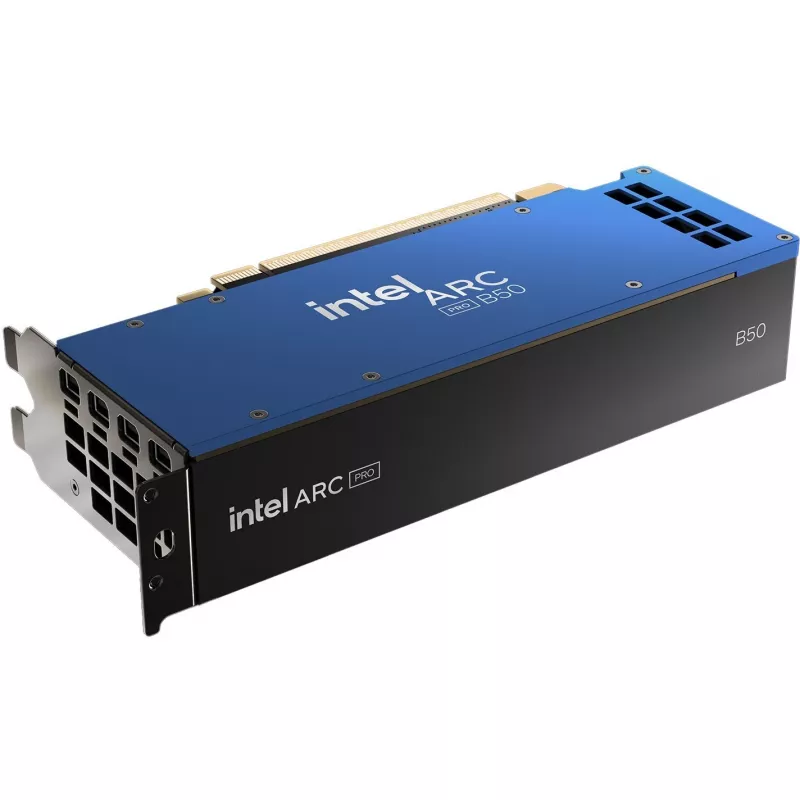

Scheda grafica INTEL Arc Pro B50 — 16 GB GDDR6, 128-Bit, PCIe 5.0, raffreddamento attivo

The INTEL Arc Pro B50 is a discrete professional graphics card designed for business and workstation environments. It features 16 GB of GDDR6 memory on a 128-bit memory bus and connects via a PCI Express 5.0 interface. The GPU operates at up to 2.6 GHz and supports high-resolution output up to 7680×4320. Compatibility with DirectX 12 Ultimate and OpenGL 4.6 makes it suitable for modern graphics APIs, while single-fan active cooling keeps the card within a compact dual-slot, small form factor.

Advantages

The card combines a high-capacity GDDR6 frame buffer with power-efficient operation at up to 70 W, enabling sustained performance in multi-monitor and business graphics workloads. Hardware ray tracing and dedicated AI acceleration through XMX engines add capability for visualisation and compute tasks. The design includes premium components and support for independent software vendor (ISV) certifications, which helps ensure stability and compatibility with professional applications.

Suitable for

• Computer-aided design (CAD) and 2D/3D drafting
• Digital content creation (DCC), modelling and rendering workflows
• Multi-monitor office and control-room setups (up to 4 displays)
• Business graphics, presentations and high-resolution display output up to 7680×4320

Key specifications

• Graphics memory: 16 GB GDDR6
• Memory bus width: 128 bit
• Interface: PCI Express 5.0
• Maximum supported resolution: 7680×4320
• API support: DirectX 12 Ultimate, OpenGL 4.6

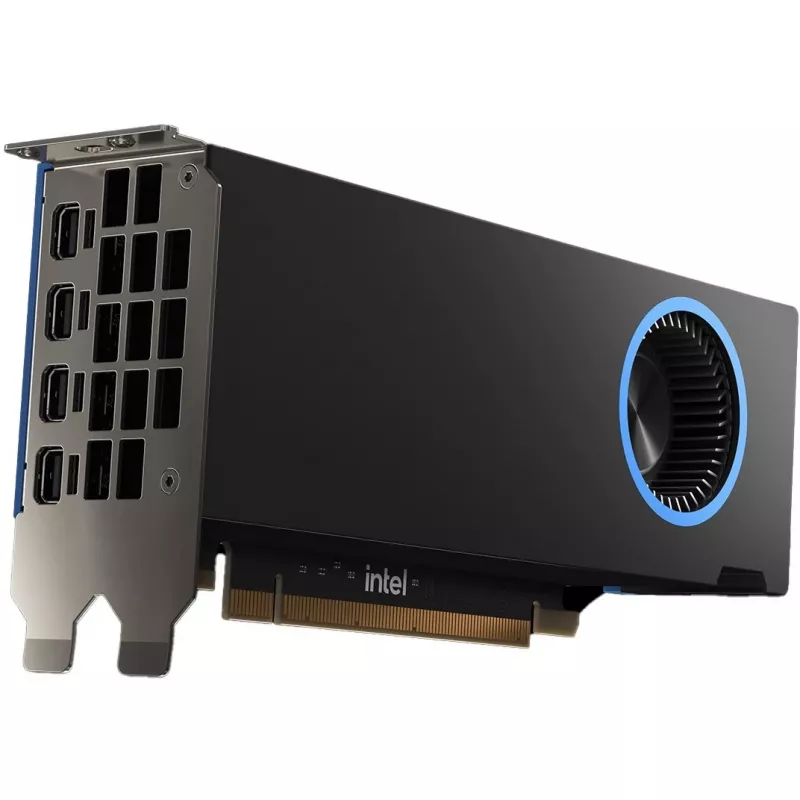

• Cooling: single-fan active cooling, dual-slot
• Power consumption: up to 70 W
• Display outputs: up to 4 DisplayPort connectors
• Form factor: small form factor, weight approximately 0.33 kg

How to use

Install the INTEL Arc Pro B50 into an available PCI Express x16 slot that supports PCIe 5.0 or a compatible PCIe generation. Secure the card to the chassis and connect required display cables to the DisplayPort outputs. Ensure the system power and cooling meet the card’s requirements and update system drivers to the manufacturer’s recommended version to enable DirectX 12 Ultimate and OpenGL 4.6 features. For multi-monitor setups configure display settings in the operating system or professional graphics driver control panel.

Recommendations

For stable professional use, keep system BIOS and graphics drivers up to date, allow adequate case airflow for the single-fan cooler, and verify ISV certification lists if you rely on specific application support. Use appropriate DisplayPort cables for high-resolution displays and consider system power headroom when combining the card with other components.
