Scheda interfaccia DeLOCK 62687

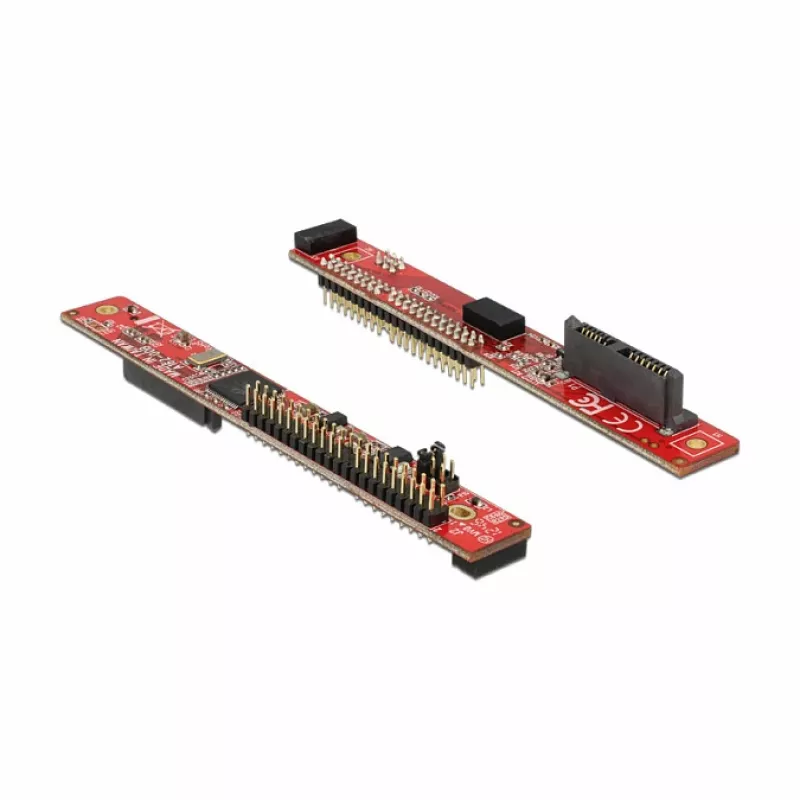

The DeLOCK 62687 is an internal interface card that converts a Slim SATA drive connection to an IDE/ATA 44‑pin interface. It allows SATA host interfaces to be connected to IDE/ATA outputs and supports data transfer rates up to 3 Gbit/s. The compact card (15 x 102 x 13 mm) is intended for installation inside a system and is supplied in a protective box.

Advantages

This adapter provides a straightforward hardware conversion from SATA to IDE/ATA without requiring additional drivers. Its slim design fits tight internal spaces, and the supported transfer rate of up to 3 Gbit/s ensures adequate throughput for many legacy IDE applications. Boxed packaging protects the card during transport and storage.

Suitable for

• Connecting Slim SATA drives to systems with a 44‑pin IDE/ATA connector
• Upgrading or retrofitting older computers or embedded systems that lack native SATA support
• Repair or replacement tasks where a SATA-to-IDE adapter is required

Key specifications

• Brand: DELOCK
• Model: 62687
• Host interface: SATA
• Output interface: IDE/ATA (44‑pin)
• Maximum data transfer rate: 3 Gbit/s
• Internal: Yes
• Dimensions: 15 x 102 x 13 mm
• Packaging: Box
• EAN: 4043619626878

How to use

Install the card inside the computer or device, aligning the IDE/ATA 44‑pin connector with the system’s corresponding cable or socket. Connect the Slim SATA drive to the card’s SATA host interface, secure any required power connection for the drive, and ensure the card is seated correctly. Power on the system and verify the drive is recognised by the BIOS or operating system. No additional drivers are typically required for basic IDE compatibility.

Recommendations

Use the adapter in environments where mechanical clearance is limited and ensure correct orientation of both the SATA and IDE/ATA connectors before powering the system. For reliable operation, verify drive compatibility and provide stable power to the attached Slim SATA drive.
