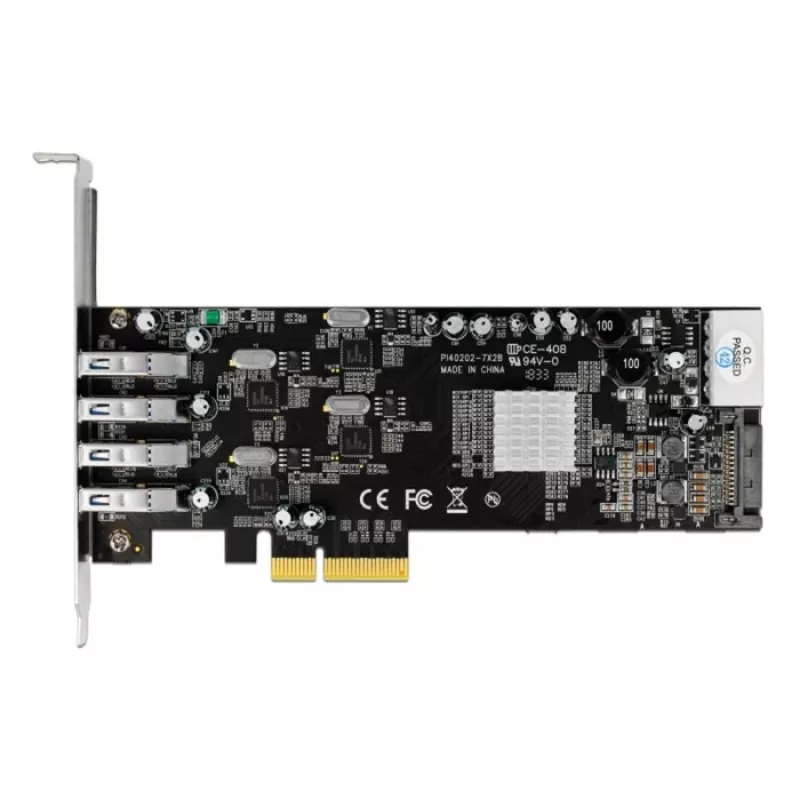

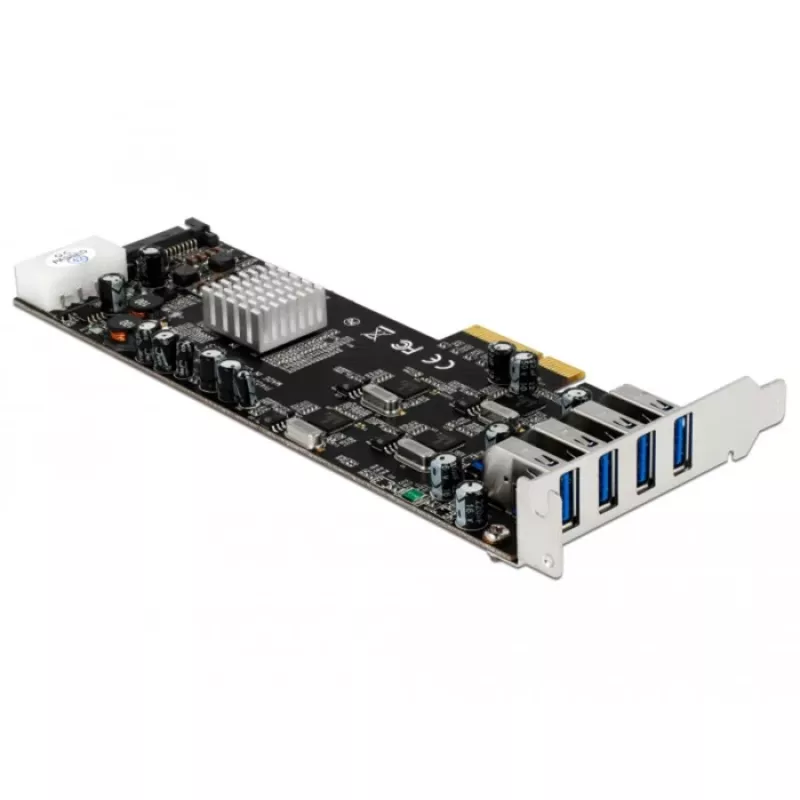

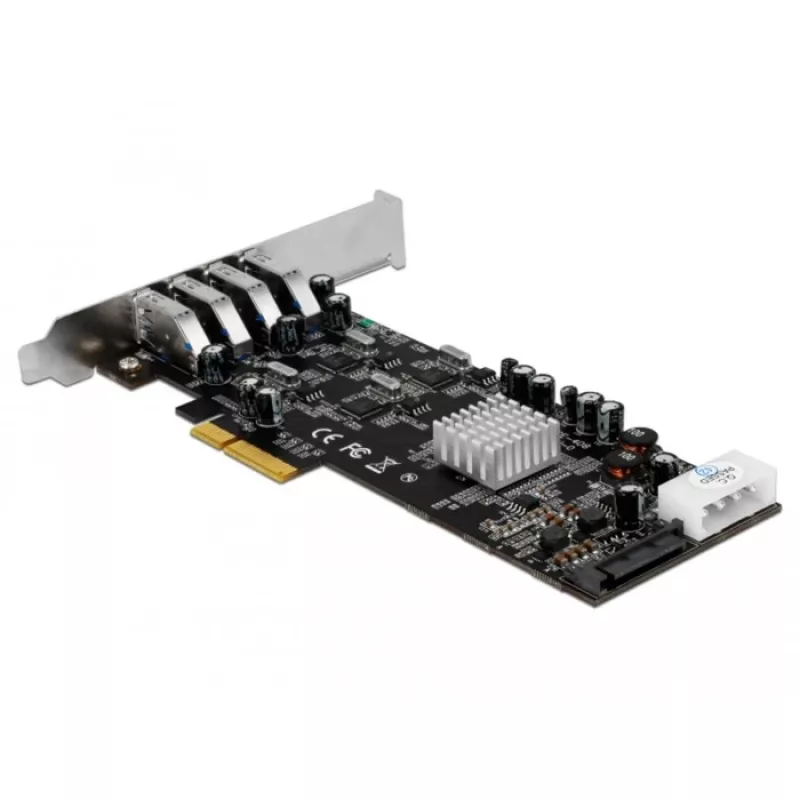

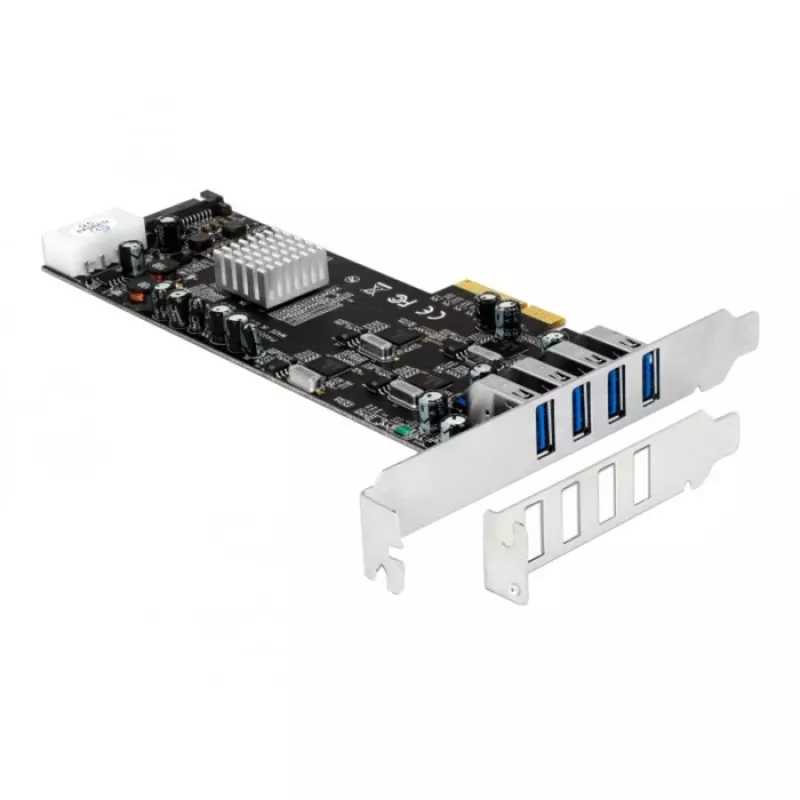

Scheda interfaccia DeLOCK 89365 interna USB 3.2 Gen 1

The DeLOCK 89365 internal interface card adds four external USB 3.0 / USB 3.2 Gen 1 ports to a PC via a PCIe slot. Each port is managed by a dedicated NEC controller chip to ensure stable high-speed transfers up to 5 Gbit/s. The card supports connection of common USB peripherals such as docking stations, card readers and external enclosures, and its vertically oriented external ports allow installation in low-profile slots.

Advantages

The card provides four external USB 3.2 Gen 1 ports with individual NEC controllers for reliable bandwidth and reduced contention. It connects to the system through a standard PCIe host interface and is suitable for expanding USB connectivity without occupying internal drive bays. Vertical port orientation enables use in compact and low-profile PC cases.

Suitable for

• Connecting external storage enclosures and SSD/HDD docking stations
• Attaching card readers and USB hubs
• Adding USB ports to small form-factor or low-profile desktop PCs
• Systems requiring multiple high-speed USB 3.2 Gen 1 connections

Key specifications

• Host interface: PCIe
• Output interface: USB 3.2 Gen 1 (USB 3.0), 4 external ports
• Maximum data rate: up to 5 Gbit/s (per USB 3.2 Gen 1 specification)
• Controller: NEC chips (one per port)
• Form factor: supports low-profile installation (vertical external ports)

How to use

Power off the PC and insert the DeLOCK 89365 into an available PCIe slot. Secure the card to the chassis, then connect any external USB devices to the vertical external ports. After powering on the computer, install drivers if required by your operating system; the card is compatible with various Windows versions (including Windows XP, Vista and 7) and Linux. Verify device recognition in the system device manager before transferring data.

Recommendations

For optimal transfer performance, connect USB 3.2 Gen 1 devices using certified USB 3.0/3.2 Gen 1 cables and avoid routing multiple high-throughput devices through a single hub. Ensure available PCIe slot bandwidth and install appropriate drivers for your OS to maximize stability.
