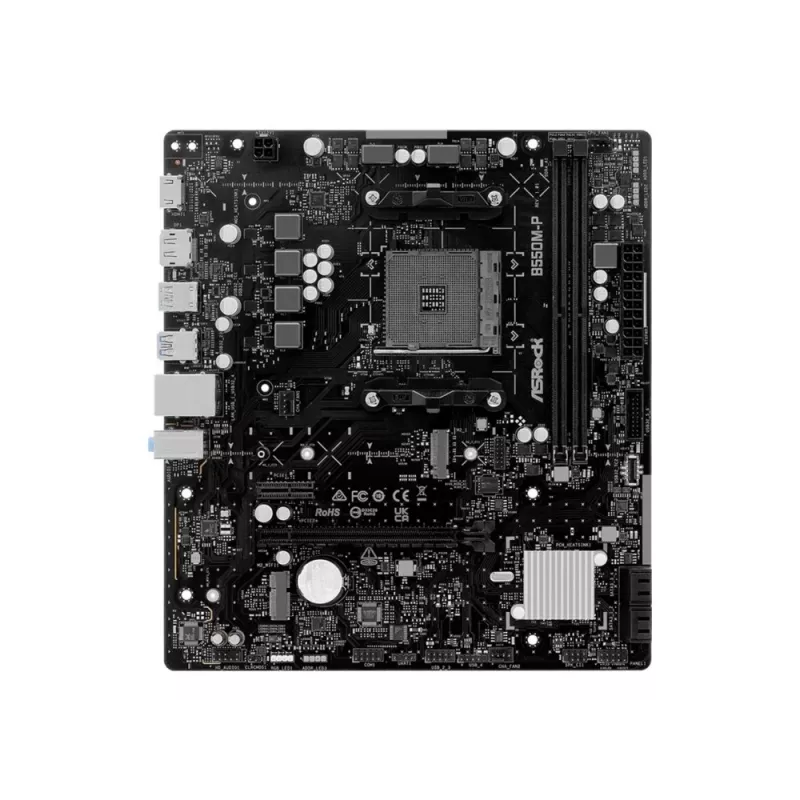

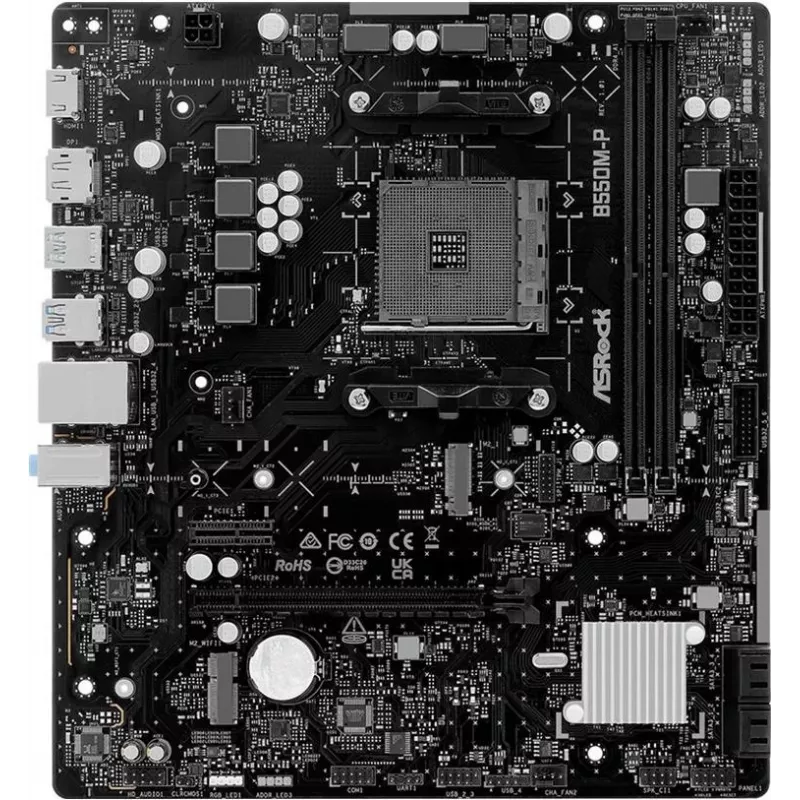

Scheda madre ASRock B550M-P AM4 mATX - Chipset AMD B550, DDR4, PCIe 4.0

The ASRock B550M-P AM4 mATX motherboard is designed for AMD Ryzen processors, offering a robust platform for gaming and productivity. With the AMD B550 chipset, it supports PCIe 4.0 for high-speed storage and graphics, making it an excellent choice for building a powerful yet compact system.

Advantages

This motherboard provides a balanced feature set with support for the latest AMD Ryzen 5000 series CPUs, dual M.2 slots (one PCIe Gen4 x4), and 4 DDR4 DIMM slots for up to 128GB of memory. The Micro ATX form factor fits in smaller cases without sacrificing performance.

Suitable for

• Gaming PCs requiring PCIe 4.0 support
• Home office and productivity builds
• Compact Micro ATX systems

Key specifications

• CPU Socket: AMD AM4
• Chipset: AMD B550
• Form Factor: Micro ATX
• Memory: 4 x DDR4 DIMM, up to 128GB
• PCIe x16: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16
• M.2: 2 slots (1x Hyper M.2 PCIe Gen4 x4, 1x M.2 PCIe Gen3 x2/SATA3)
• SATA III: 4 ports
• Rear USB: 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 Type-A
• Video Outputs: 1 x HDMI, 1 x DisplayPort, 1 x D-Sub (VGA)
• Audio: Realtek ALC887/897 7.1 CH HD Audio
• LAN: Realtek RTL8111H Gigabit Ethernet
• Power: 1 x 24-pin ATX, 1 x 8-pin EPS

Recommendations

For optimal performance, pair this motherboard with an AMD Ryzen 5000 series processor and a PCIe 4.0 NVMe SSD. Ensure your power supply has an 8-pin EPS connector.
